Working with Sparse Arrays

Sparse representations of matrices are useful because they do not store every element. If one particular value appears very frequently it can be very advantageous to use a sparse representation. Mathematica offers a sparse representation for matrices, vectors, and tensors with SparseArray.

This tutorial discusses how to create and work with SparseArray objects in Mathematica. If you are interested in carrying out linear algebra computations on sparse matrices, you should consult "Matrix Computations".

Basic Operations

The basic object for representing a sparse matrix in Mathematica is a SparseArray.

SparseArray[list]a SparseArray version of an ordinary list
SparseArray[{{i1,j1}->v1,{i2,j2}->v2,},{m,n}]
an m×n sparse array with element having value
SparseArray[{{i1,j1},{i2,j2},}->{v1,v2,},{m,n}]
the same sparse array
SparseArray[data,{m,n},def]an m×n sparse array with default element def
SparseArray[Band[b]->v,{m,n}]an m×n banded sparse array
Normal[array]the ordinary list corresponding to a SparseArray
ArrayRules[m]positions of nonzero elements
A SparseArray object can be created by giving a list of those elements that are nonzero.
In[1]:=
Click for copyable input
Out[1]=
By default, a sparse matrix will print with a special output format. You can see the matrix that the sparse array represents by using MatrixForm.
In[2]:=
Click for copyable input
Out[2]//MatrixForm=
Operations on sparse matrices are all equivalent to the operations on dense matrices. For example, arithmetic is supported and a sparse array is the result.
In[3]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
Listable operations also work on sparse arrays to thread over all elements.
In[5]:=
Click for copyable input
Out[5]=
In[6]:=
Click for copyable input
Out[6]//MatrixForm=
All combinations of matrix multiplication using the function Dot are supported. This demonstrates the dot product of two sparse arrays.
In[7]:=
Click for copyable input
Out[7]=
In[8]:=
Click for copyable input
Out[8]//MatrixForm=
This demonstrates the dot product of a sparse array with a dense vector.
In[9]:=
Click for copyable input
Out[9]=
The dot product of a sparse array with a dense matrix is supported.
In[10]:=
Click for copyable input
Out[10]=
Sparse representations are useful because they do not store every element. If one particular value, typically this is zero, appears many times in the sparse array, it can be much more efficient if only elements that are different from this common value are stored. The default output format shows the number of nondefault elements and the dimensions.
In[11]:=
Click for copyable input
Out[11]=
If a single number is added to the sparse array, it is added to all elements and also to the default element, which was zero. Now that the default element is no longer zero but 1.5, it is shown in the output.
In[12]:=
Click for copyable input
Out[12]=
If the N command is applied to a sparse matrix, it works on all the elements. This builds an example 3×3 sparse matrix.
In[13]:=
Click for copyable input
Out[14]//MatrixForm=
When N is applied to the sparse matrix, the result is a sparse matrix with elements (including the default element) that are all approximate machine numbers.
In[15]:=
Click for copyable input
Out[15]//MatrixForm=
Here N with a precision argument is applied to the matrix. This generates a sparse matrix of approximate real numbers with 20 digits of precision. Note that N[0,20] is still 0.
In[16]:=
Click for copyable input
Out[16]//MatrixForm=

SparseArray

The main function for generating a sparse array is SparseArray. This can operate on a matrix to generate its sparse representation.
In[1]:=
Click for copyable input
Out[2]=
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
SparseArray can also take a list of rules showing the values for certain parts.
In[4]:=
Click for copyable input
Out[4]=
In[5]:=
Click for copyable input
Out[5]//MatrixForm=
An equivalent syntax for SparseArray groups the indices and element values into their own lists.
In[6]:=
Click for copyable input
Out[6]=
The results of the two forms of SparseArray are identical.
In[7]:=
Click for copyable input
Out[7]=

A fuller discussion of the relative advantages of the two forms is given in the section "Rule Inputs for SparseArray".

SparseArray can also accept the dimensions of the matrix to be created. Here a 5×5 matrix is created even though the maximum explicit index was .
In[8]:=
Click for copyable input
Out[8]=
In[9]:=
Click for copyable input
Out[9]//MatrixForm=
In this example the default value is set to 1; typically the default value is 0.
In[10]:=
Click for copyable input
Out[10]=
In[11]:=
Click for copyable input
Out[11]//MatrixForm=
Allowing the default value to be changed makes many element-wise operations very fast. They just need to work on the elements that are actually present and the default value.
In[12]:=
Click for copyable input
Out[12]=
In[13]:=
Click for copyable input
Out[13]//MatrixForm=
You can also give patterns for the rules. This can often be a convenient way to build structured matrices. You can use the names of the patterns on the right-hand side of the rules. Typically, it is better to use Band if this can be done; this is discussed in the section "Banded Sparse Arrays".
In[14]:=
Click for copyable input
Out[14]=
In[15]:=
Click for copyable input
Out[15]//MatrixForm=

Mathematica uses symbolic algebraic techniques to simplify certain of the patterns for building sparse arrays. This allows it to construct the sparse array without testing every potential element to see if it is actually present in the array, thus providing a significant saving in computational time.

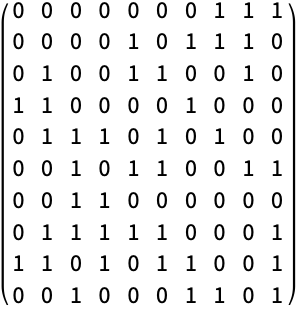

You can use the Mathematica function Random to generate sparse arrays with entries that are pseudorandom numbers. You can also use Random to generate the indices for the sparse array. In this example a 10×10 sparse matrix with at most 50 nondefault entries is generated.
In[16]:=
Click for copyable input
Out[17]//MatrixForm=

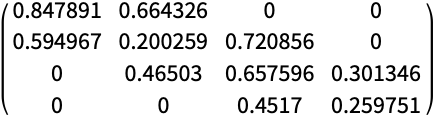

If you want to use Random on the right-hand side of the rules in a sparse array, or in any other expression that will evaluate, you should use RuleDelayed (entered with ) to form the rules. If you do not do this, the same number will be used throughout the sparse matrix.
In[18]:=
Click for copyable input
Out[19]//MatrixForm=

The general principle is that the rules you use with SparseArray work in the typical way for rules in Mathematica.

Rule Inputs for SparseArray

There are two different ways that rules can be used as input syntax for SparseArray. These are demonstrated here.
In[1]:=
Click for copyable input
Both generate identical sparse arrays.
In[3]:=
Click for copyable input
Out[3]=

The first form, which has many rules, is convenient if you want to mix explicit indices with patterns. It is also more readable for small examples. The second is more efficient, and is preferred if you only have explicit indices, for example, after reading data from a file.

This uses SparseArray with many rules to mix explicit values with patterns.
In[4]:=
Click for copyable input
Out[5]//MatrixForm=
This demonstrates the form of SparseArray that uses only one rule. The timing is measured to demonstrate performance.
In[6]:=
Click for copyable input
Out[8]=
It is possible to convert the single rule to multiple rules using Thread. This takes more time than generating the sparse array.
In[9]:=
Click for copyable input
Out[9]=
This uses the multiple rule form of SparseArray. It is slower than the single rule form.
In[10]:=
Click for copyable input
Out[10]=
One reason why the single rule form of SparseArray is faster is that the indices and elements can use packed arrays, an efficient storage technology. If they are converted from packed arrays, then SparseArray is slower, as shown.
In[11]:=
Click for copyable input
Out[13]=

More information on packed arrays is found under "Packed Arrays".

Banded Sparse Arrays

If you want to build sparse matrices that have some type of banded structure, this can be achieved with Band.

SparseArray[Band[b]->v,{m,n}]an m×n banded sparse array
Band[{i,j}]a diagonal band that starts with the position
Band[{imin,jmin},{imax,imax}]a diagonal band from to
Band[{imin,jmin},{imax,imax}{di,dj}]a diagonal band from moving with step
This creates a diagonal matrix.
In[1]:=
Click for copyable input
Out[1]//MatrixForm=
This has bands above and below the diagonal.
In[2]:=
Click for copyable input
Out[2]//MatrixForm=
This inserts a band along the anti-diagonal.
In[3]:=
Click for copyable input
Out[3]//MatrixForm=

In general, if you can use Band to create a sparse array, it will be more efficient.

Identity and Diagonal Sparse Matrices

There are a number of ways to create identity and diagonal sparse matrices in Mathematica.

IdentityMatrix[n,Sparse->True]a sparse identity matrix
DiagonalMatrix[SparseArray[{a,b,c,d}]]
a sparse diagonal matrix
This generates a 4×4 sparse identity matrix.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This generates a 4×4 sparse diagonal matrix.
In[3]:=
Click for copyable input
Out[5]//MatrixForm=
If you want to compute with floating-point numbers, it can be advantageous to use matrices that contain floating-point entries; this is described in more detail under "Matrix Contents". For IdentityMatrix, you can use the WorkingPrecision option.
In[6]:=
Click for copyable input
Out[7]//MatrixForm=
For a diagonal matrix, you can make sure that the diagonals already are machine-precision numbers.
In[8]:=
Click for copyable input
Out[10]//MatrixForm=

Notice how all the entries of the matrix are machine-precision numbers. This can help to improve the efficiency of your computations. The different types of matrices that Mathematica can work with are described in more detail under "Matrix Types".

Normal

To convert from a sparse array to the dense object that it represents, you can use Normal.
In[11]:=
Click for copyable input
Out[11]=
In[12]:=
Click for copyable input
Out[12]=
Of course, it is very straightforward to make a sparse array that cannot be represented on your system. For example, the following sparse matrix only has two nonzero elements, but it has 2499999998 zero elements.
In[13]:=
Click for copyable input
Out[13]=
If this is converted to a dense matrix, an exception is thrown because it is not possible to represent this on typical computers.
In[14]:=
Click for copyable input
Out[14]=

ArrayRules

SparseArray can accept a list of rules to form a sparse array. These rules hold the indices and values of nonzero elements. In the following example, the element at position {2,1} has the value 5. ArrayRules generates the rules for a sparse array.
In[1]:=
Click for copyable input
Out[1]=
ArrayRules returns the rules that represent the sparse array. It returns a rule of blank patterns to show the default value.
In[2]:=
Click for copyable input
Out[2]=
When a scalar is added to the sparse array, the default value is changed. For example, here the default value is 5.
In[3]:=
Click for copyable input
Out[3]=
ArrayRules can take a second argument, which is the default value shown on output. Here, a default rule with value 5 is used. Because there is only one element with this value, the list of rules is much longer.
In[4]:=
Click for copyable input
Out[4]=
ArrayRules is a useful way to get information about a sparse array such as the nondefault elements or the default value. This example shows how to get the indices of the nondefault elements.
In[5]:=
Click for copyable input
Out[5]=

Structural Operations

Structural operations on sparse arrays are all equivalent to the operations on dense matrices.

Getting Pieces of Matrices

Extracting elements, rows, and columns of a sparse matrix is quite straightforward with the Mathematica function Part. Typically Part is entered with notation.

m[[i,j]]the ^(th) entry
m[[i]]the i^(th) row
m[[i;;j]] rows i through j
m[[All,i]]the i^(th) column
m[[All,i;;j]] columns i through j
m[[{i1,,ir},{j1,,js}]]the r×s submatrix with elements having row indices and column indices
Tr[m,List]list of the diagonal elements of m

Ways to get pieces of matrices.

Here is a sample sparse matrix.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This gets the third element in the first row.
In[3]:=
Click for copyable input
Out[3]=
This gets the third row; the row is returned as a sparse vector.
In[4]:=
Click for copyable input
Out[4]=
It can also obtain a column by using All to specify all rows; the column is returned as a sparse vector.
In[5]:=
Click for copyable input
Out[5]=
Negative indices are used to refer to the end of the matrix. The following gets the last element of the last row.
In[6]:=
Click for copyable input
Out[6]=
You can get ranges of a matrix using . This gets the second through the fourth rows.
In[7]:=
Click for copyable input
Out[7]=
This gets the second through the fourth columns.
In[8]:=
Click for copyable input
Out[8]=
You can also give a step. This gets every other column.
In[9]:=
Click for copyable input
Out[9]=
The function Tr works on the diagonal elements of a matrix. The one-argument form adds them up.
In[10]:=
Click for copyable input
Out[10]=
Tr can also take a function as its second argument, which will apply to the diagonal elements. If List is used, this returns the diagonal elements.
In[11]:=
Click for copyable input
Out[11]=

Getting Multiple Pieces

It is possible to extract multiple elements by using indices in lists. This is demonstrated with the following sample matrix.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
The following gets the first and third elements of the third row.
In[3]:=
Click for copyable input
Out[3]=
The following gets the first and third rows.
In[4]:=
Click for copyable input
Out[4]=
The following gets the first and third elements of the first and second rows.
In[5]:=
Click for copyable input
Out[5]=

Setting Pieces of Matrices

Setting elements, rows, and columns so that a sparse matrix is updated is quite straightforward by using the Mathematica function Part on the left-hand side of an assignment.

m={{a11,a12,},{a21,a22,},}assign m to be a matrix
m[[i,j]]=vreset element to be v
m[[i]]=vreset all elements in row i to be v
m[[i]]={v1,v2,}reset elements in row i to be
m[[All,j]]=vreset all elements in column j to be v
m[[All,j]]={v1,v2,}reset elements in column j to be

Resetting parts of matrices.

Here is a sample sparse matrix.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
To update parts of a matrix, you can use Part on the left-hand side of an assignment. This sets the third element of the third row.
In[3]:=
Click for copyable input
Out[4]//MatrixForm=
This sets the second row of the matrix.
In[5]:=
Click for copyable input
Out[6]//MatrixForm=
Here, the second column is set.
In[7]:=
Click for copyable input
Out[8]//MatrixForm=
You can also use the range syntax for setting pieces of the matrix. This sets every element in every other row to be .
In[9]:=
Click for copyable input
Out[10]//MatrixForm=

Setting Multiple Pieces

It is possible to set multiple elements by using indices in lists. This is demonstrated with the following sample matrix.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
The following sets the first and third elements of the second row.
In[3]:=
Click for copyable input
Out[4]//MatrixForm=
If the right-hand side of the assignment is a list that matches the number of elements being assigned, the assignment is done element by element. Thus, the following gives two different values for the first and third elements of the second row.
In[5]:=
Click for copyable input
Out[6]//MatrixForm=
The following sets the second and third rows.
In[7]:=
Click for copyable input
Out[8]//MatrixForm=
The following gives two different values for the second and third rows.
In[9]:=
Click for copyable input
Out[10]//MatrixForm=
The following sets the first and third elements of the second and third rows.
In[11]:=
Click for copyable input
Out[13]//MatrixForm=
The following sets the first and third elements of the second and third rows with different values.
In[14]:=
Click for copyable input
Out[15]//MatrixForm=

Extracting Submatrices

The range syntax is useful to extract a submatrix.

m[[i0;;i1,j0;;j1]]extract the submatrix with rows through and columns through
m[[i0;;i1]]extract the submatrix with rows through
m[[All,j0;;j1]]extract the submatrix with columns through

Extracting submatrices.

In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This extracts the submatrix from to .
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
This extracts the submatrix of rows 1 to 3.
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
This extracts the submatrix of columns 2 to 4.
In[5]:=
Click for copyable input
Out[5]//MatrixForm=
You can use negative indices to count from the end. This returns the matrix with the first and last columns dropped.
In[6]:=
Click for copyable input
Out[6]//MatrixForm=

Deleting Rows and Columns

If you want to delete rows or columns, you can use Drop.

Drop[m,{i0,i1}]delete rows through
Drop[m,{},{j0,j1}]delete columns through
Drop[m,{i0,i1},{j0,j1}]delete rows through and columns through

Deleting rows and columns.

In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This drops rows 2 through 4.
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
This drops columns 2 through 4.
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
In this example, rows 2 and 3, and columns 1, 2, and 3 are all dropped.
In[5]:=
Click for copyable input
Out[5]//MatrixForm=

Inserting Rows and Columns

If you want to insert a row, you can use Insert.

Insert[m,r,i]insert row r into matrix m at position i

Inserting a row.

In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This inserts a row before row 3.
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
If you want to insert a column, you must transpose the matrix, insert the column as a row, and then transpose the matrix back. This inserts a column before column 5.
In[4]:=
Click for copyable input
Out[4]//MatrixForm=

Extending Matrices

You can increase the size of a matrix by padding it with PadLeft and PadRight.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
PadLeft adds the elements to the beginning of the matrix. This example returns a 4×4 sparse matrix.
In[3]:=
Click for copyable input
Out[3]=
You can see the result with MatrixForm.
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
PadRight adds the elements to the end of the matrix; the result is a sparse array.
In[5]:=
Click for copyable input
Out[5]//MatrixForm=
You can use PadLeft to pad on the right if you specify negative indices.
In[6]:=
Click for copyable input
Out[6]//MatrixForm=
One important use of the padding functions is to replicate and tile a matrix. In this example, the input matrix is extended to have two versions in every row and three in every column.
In[7]:=
Click for copyable input
Out[8]//MatrixForm=
In[9]:=
Click for copyable input
Out[9]//MatrixForm=
PadLeft and PadRight have a number of extra features. These are described in the Mathematica documentation.

Transpose

Transposition of elements is a general matrix operation.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
Transpose swaps elements at specific indices; the result is a sparse array.
In[3]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
If you wish to compute the conjugate transpose of a sparse matrix, you can use ConjugateTranspose.
In[5]:=
Click for copyable input
Out[7]//MatrixForm=
If a matrix is equal to its conjugate transpose, it is said to be Hermitian.
In[8]:=
Click for copyable input
Out[8]=
You can also test with the function HermitianMatrixQ.
In[9]:=
Click for copyable input
Out[9]=

Rotating Elements

Another structural operation is to rotate elements within an index. This can be done with the functions RotateLeft and RotateRight.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This rotates left by one step in the first level, thereby operating on the rows; the result is a sparse array.
In[3]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
This rotates left by one step in the second level that operates on the columns; the result is a sparse array.
In[5]:=
Click for copyable input
Out[5]//MatrixForm=
This rotates the columns in the opposite direction.
In[6]:=
Click for copyable input
Out[6]//MatrixForm=

Testing Matrices

Mathematica provides a number of functions for testing sparse matrices and extracting size information.

VectorQ[expr]give True if expr has the form of a vector, and False otherwise
MatrixQ[expr]give True if expr has the form of a matrix, and False otherwise
ArrayQ[t,n]test whether t is a tensor of rank n
Dimensions[expr]a list of the dimensions of a vector or matrix
ArrayDepth[t]find the rank of a tensor
mi==mjcompare two matrices for equality
The predicate MatrixQ can be used to test sparse matrices. It can also be used to test dense matrices as shown previously.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This tests that is a sparse matrix.
In[3]:=
Click for copyable input
Out[3]=
MatrixQ takes an optional second argument that specifies a test to apply to every element. In this example, every element is tested to see if it is an integer.
In[4]:=
Click for copyable input
Out[4]=
In this example, every element must be an integer greater than 1. Because some of the elements are 0, the result is False.
In[5]:=
Click for copyable input
Out[5]=
In addition to MatrixQ, there are predicates VectorQ and ArrayQ, which are useful for testing vectors and tensors.
In[6]:=
Click for copyable input
Out[6]=
In[7]:=
Click for copyable input
Out[7]=
ArrayQ can also take a rank argument to test the depth of the array. In this example, the sparse argument is not a rank-4 tensor, and the result is False.
In[8]:=
Click for copyable input
Out[8]=
ArrayQ also takes a third argument that tests each element. In this example, the result is True because all the elements are NumberQ.
In[9]:=
Click for copyable input
Out[9]=
The command Dimensions is useful for extracting size information.
In[10]:=
Click for copyable input
Out[11]//MatrixForm=
In[12]:=
Click for copyable input
Out[12]=
Dimensions returns a list of length 2 when the input is a matrix, stating that two indices are used to reference any element in the matrix. Another way to test the number of indices required to reference elements is with ArrayDepth; this is equivalent to Length[Dimensions[sp]].
In[13]:=
Click for copyable input
Out[13]=
To compare if the elements of two matrices are equal, it is possible to use Equal, typically entered using a shorthand notation. For example, comparing a matrix with itself returns True.
In[14]:=
Click for copyable input
Out[15]=
Equal uses the value of numbers, so it can be used to compare integer and real values.
In[16]:=
Click for copyable input
Out[16]=

It should be noted that Equal works on any Mathematica expression. If you want to compare two matrices for equality using properties of the matrix as a whole, it may be better to compare matrix norms. These are discussed under "Matrix Norms".

Further Structural Operations

This section discusses some further structural operations that are useful for working with matrices.

Flatten[m]flatten out nested lists in m
Flatten[m,n]flatten out nested lists in m to level n
Partition[m,n]partition m into sublists of length n
Join[m1,m2]concatenate and
Append[m,r]insert row r at the end of m
Prepend[m,r]insert row r at the beginning of m
This generates a sample matrix for demonstration.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
This flattens the matrix into a vector.
In[3]:=
Click for copyable input
Out[4]=
The vector can be partitioned back into a matrix with rows of length 3 using Partition.
In[5]:=
Click for copyable input
Out[5]=
Matrices can be joined together with the function Join.
In[6]:=
Click for copyable input
Out[6]//MatrixForm=
Alternatively, you can join the new matrix as new columns.
In[7]:=
Click for copyable input
Out[7]//MatrixForm=
A new row can be inserted at the end of a matrix with Append.
In[8]:=
Click for copyable input
Out[8]//MatrixForm=

It should be noted that this can also be done with Insert. This is shown in the section "Inserting Rows and Columns".

Element-wise Operations

If you want to work on the elements of a sparse matrix, you can do this easily with Mathematica. First, a matrix of floating-point numbers is created.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
In general, arithmetic operations applied to a matrix work on each element. This adds 5 to the matrix.
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
Here, every element of the matrix is squared.
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
If one matrix is divided by another, the division is done element by element. If the dimensions of the two matrices do not agree, then an error ensues.
In[5]:=
Click for copyable input
Out[5]//MatrixForm=

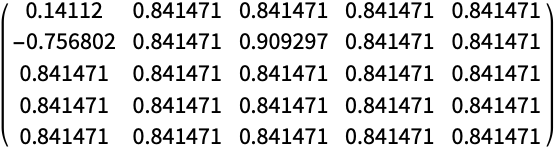

To apply the Sin function to every element, you apply Sin to the entire matrix.
In[6]:=
Click for copyable input
Out[6]//MatrixForm=
If both of the arguments of an operation are matrices, the operation is carried out on corresponding elements. This result is the same as multiplying the matrix by two.
In[7]:=
Click for copyable input
Out[7]//MatrixForm=
If one argument is a matrix and the other is a vector, the operation is carried out between rows of the matrix and elements of the vector. This is an efficient way of generating a diagonal sparse matrix.
In[8]:=
Click for copyable input
Out[10]//MatrixForm=
In[11]:=
Click for copyable input
Out[11]=
In[12]:=
Click for copyable input
Out[12]//MatrixForm=

These operations are all fast because they only need to operate on the elements that are actually stored (including the default element).

Note that multiplying two matrices using the operator Times is equivalent to multiplying the corresponding elements. On the other hand, matrix multiplication can be done with the function Dot, which is described in the section "Matrix Multiplication". Element-wise multiplication is shown in the following example.
In[13]:=
Click for copyable input
Out[14]//MatrixForm=

Listability

If you want to apply your own function to each element in a matrix, you may give your function the attribute Listable. This function squares each element and divides the result by 3.
In[1]:=
Click for copyable input
In[3]:=
Click for copyable input
In[4]:=
Click for copyable input
Out[4]//MatrixForm=

When a listable operation is applied to a sparse array, it only operates on the elements that are actually stored (including the default element), so the value of is only computed once.

Map

Instead of using listability, you can use Map to apply a function to every element in a matrix.
In[1]:=
Click for copyable input
Map will apply the function to every element in the matrix.
In[2]:=
Click for copyable input
Out[2]=
You can see the matrix that the sparse array represents. Note that because the function did not have any definition, it is just kept wrapped around every element.
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
Here, a function that squares its argument and divides the result by 5 is applied to every element in the matrix.
In[4]:=
Click for copyable input
Out[4]=
In[5]:=
Click for copyable input
Out[5]//MatrixForm=

When Map applies a function to a sparse array, it only operates on the elements that are actually stored (including the default element).

Visualization of Sparse Matrices

This section reviews the functions that are available for formatting and plotting sparse matrices. Because sparse matrices are well integrated into the system, most of the examples in this section are very similar to the way that dense matrices work. Visualization techniques for dense matrices are described under "Visualization of Matrices".

MatrixForm[mat]print a matrix with the elements arranged in a twodimensional array
MatrixPlot[mat]show the structural pattern of mat

Formatting Sparse Matrices

Sparse matrices can be formatted with the function MatrixForm.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
MatrixForm also works for vectors and higher-rank sparse arrays; the braces can help in understanding the grouping.
In[3]:=
Click for copyable input
Out[3]//MatrixForm=

The view that you get from MatrixForm is dense, which can help you see the sparsity pattern. However, it can quickly lead to very large output, especially as the rank of the array increases.

Plotting Sparse Matrices

A convenient way to plot sparse matrices is with the function MatrixPlot, which is described in greater detail under "Plotting Matrices".

This reads in a sparse matrix, using the Import function demonstrated in the previous section.
In[1]:=
Click for copyable input
Out[1]=
The matrix can be plotted. This is a useful way to see the structure of the matrix.
In[2]:=
Click for copyable input
Out[2]=
If the matrix is multiplied with itself, the result is less sparse, but it still has a related structure.
In[3]:=
Click for copyable input
Out[3]=

Import and Export of Sparse Matrices

Mathematica provides a number of different tools for I/O. You can save your data in a file so that you or a colleague can continue to work with it in Mathematica later. For this you might want to use some of the expression I/O functions; these are discussed under "Expression Input and Output".

If you want to work with matrices from a source external to Mathematica using specific data formats, the functions Import and Export are useful. The Import function supports a variety of different formats, some of which are relevant to sparse matrices.

There are two formats that are specific to sparse matrices and are supported in Mathematica: "HarwellBoeing" and "Matrix Market". This example imports the matrix in the file using the HarwellBoeing format.
In[1]:=
Click for copyable input
Out[1]=
The result is a 961×961 matrix of numbers with 10591 nonzero elements.
In[2]:=
Click for copyable input
Out[2]=
You can confirm the dimensions of the matrix.
In[3]:=
Click for copyable input
Out[3]=
If the matrix is multiplied with itself, the result may not be as sparse as before.
In[4]:=
Click for copyable input
Out[4]=

Many examples of matrices in HarwellBoeing and Matrix Market formats can be found at http://math.nist.gov/MatrixMarket/index.html.

Matrix Multiplication

Matrix multiplication is carried out in Mathematica with the function Dot, which is typically entered with a dot shorthand syntax. The operation is fully supported for sparse arrays.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
The sparse matrix can be multiplied by itself; the result is also a sparse matrix.
In[3]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]//MatrixForm=
This multiplies a sparse matrix by a dense vector. In this case the result is dense.
In[5]:=
Click for copyable input
Out[5]=
If the vector is made into a sparse array, the result of the multiplication will be sparse.
In[6]:=
Click for copyable input
Out[6]=
In[7]:=
Click for copyable input
Out[7]//MatrixForm=
In general, the result of matrix multiplication will be sparse if both arguments are sparse. This is not true if the default values are different.
In[8]:=
Click for copyable input
Out[8]=

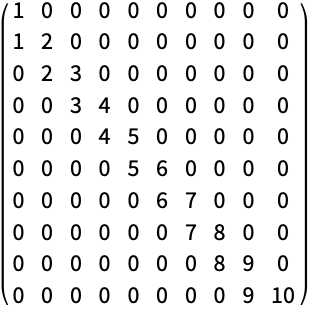

What is particularly important about sparse matrix vector multiplication is that it is fast. In this example, a 100000×100000 tri-diagonal sparse matrix is multiplied by a dense vector.
In[9]:=
Click for copyable input
In[11]:=
Click for copyable input
Out[11]=
Another issue with multiplication of sparse and dense matrices is that there are differences in the speed of computation depending on whether the dense matrix is on the left or the right.
In[12]:=
Click for copyable input
The first example is slower than the second, even though the result is the same in both cases.
In[14]:=
Click for copyable input
Out[14]=
In[15]:=
Click for copyable input
Out[15]=
One possibility to improve the speed is to convert the dense matrix to a sparse representation. Now the result is a sparse matrix.
In[16]:=
Click for copyable input
Out[17]=
Another solution would be to reverse the order by working with the transpose of each matrix.
In[18]:=
Click for copyable input
Out[18]=

Outer Product

The outer product is a way to build a higher-rank tensor from ones of lower rank. Mathematica provides this functionality with the function Outer. One use of this is to combine two vectors to form a matrix as an outer product. This works for sparse vector input to generate a sparse array.
In[1]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]//MatrixForm=

This generation of sparse outer products can be very advantageous if you want to use Mathematica sparse arrays as general sparse data structures.

Matrix Permutations

Many matrix techniques rely on ordering a matrix in particular ways. For example, some techniques try to order the matrix to put elements on the diagonal, while others try to group certain elements into dense blocks. The Mathematica function Part is very well suited to applying permutations to the rows and columns of a matrix.

m[[perm]]apply a permutation to the rows of a matrix
m[[All,perm]]apply a permutation to the columns of a matrix
m[[perm,perm]]apply a permutation to the rows and columns of a matrix
m[[perm]]=mapply the inverse of a permutation to the rows of a matrix
m[[All,perm]]=mapply the inverse of a permutation to the columns of a matrix

Applying permutations to matrices.

This generates a random matrix.
In[1]:=
Click for copyable input
Out[2]//MatrixForm=
Now the matrix will be reordered so that the rows with smallest 2-norm are first. ("Norms" are discussed under "Matrix Computations".) First, the norm of each row is computed.
In[3]:=
Click for copyable input
Out[3]=
This computes the permutation that is necessary to reorder the matrix.
In[4]:=
Click for copyable input
Out[4]=
This applies the ordering to the rows of the matrix; the result has rows with smallest 2-norms first.
In[5]:=
Click for copyable input
Out[6]//MatrixForm=
Now the inverse permutation is applied using part assignment. Note that this modifies the matrix held by the symbol . Part assignment is described previously.
In[7]:=
Click for copyable input
Out[8]//MatrixForm=

Converting Equations to Sparse Arrays

Matrices are so important in many areas of science and technology because they are an efficient way to represent linear systems of equations. Mathematica is unique among technical computing systems in that it combines very efficient ways to work with matrices and also with the equations that the matrices represent. It is easy to go from a matrix to a system of equations and back. Here, a sparse matrix is multiplied by a vector of the unknowns and a system of equations is formed.

In[1]:=
Click for copyable input
Out[2]=
In[3]:=
Click for copyable input
Out[3]//MatrixForm=
These equations can be solved with the algebraic equation solver, Solve.
In[4]:=
Click for copyable input
Out[4]=
However, it is a bit more involved to go from the equation to the matrix representation. Mathematica provides the function CoefficientArrays to make this transformation easier. This takes the equations that were generated; the result is a list of a sparse vector and a sparse matrix.
In[5]:=
Click for copyable input
Out[5]=
You can see the details of the sparse arrays with MatrixForm.
In[6]:=
Click for copyable input
Out[6]=
CoefficientArrays is general and will work for nonlinear as well as linear polynomial equations.
In[7]:=
Click for copyable input
Out[7]=

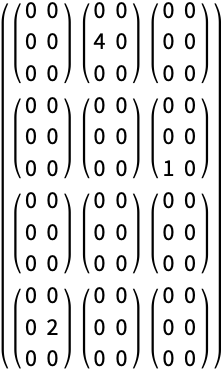

When the input is a nonlinear polynomial, the result will include higher-rank tensors.
In[8]:=
Click for copyable input
Out[8]=
You can still regain the original expressions with dot products.
In[9]:=
Click for copyable input
Out[9]=

The ability to work directly with systems of linear equations can be very advantageous for certain applications. For example, generating finite difference solutions. This is demonstrated in the example "Finite Difference Solutions".

SparseArray Data Format

There are several different formats that can be used to hold sparse arrays. Each has its own advantages and disadvantages. Mathematica uses the Compressed Sparse Row (CSR) format as an internal storage format. This can be explained for a sample matrix shown here.

In[10]:=
Click for copyable input
Out[11]//MatrixForm=
You can see the internal form in the InputForm of the matrix.

This format is general enough to describe arbitrary rank tensors. Other advantages of the format include the fact that data elements in the same row are stored next to each other, which leads to better cache performance. A disadvantage is that it is not optimized for inserting new elements into the matrix.
