Introduction

CUDALink allows Mathematica to use the CUDA parallel computing architecture on Graphical Processing Units (GPUs). It contains functions that use CUDA-enabled GPUs to boost performance in a number of areas, such as linear algebra, financial simulation, and image processing. CUDALink also integrates CUDA with existing Mathematica development tools, allowing a high degree of automation and control.

Getting Started

To use any CUDALink functions, the application has to be loaded.

In[1]:=
Click for copyable input

CUDAQ tells you whether a CUDA-capable device is available and can be used.

In[2]:=
Click for copyable input
Out[2]=

If CUDAQ returns False, then CUDALink will not work. For more information, read "CUDALink Setup".

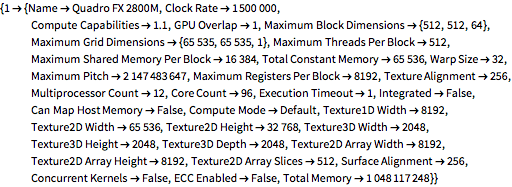

CUDAInformation tells you more information about the graphics processing unit. Here the GPU is a Quadro FX unit with 96 cores and 1GB of graphics memory.

In[3]:=
Click for copyable input
Out[3]=

In Mathematica you can make matrices of real random numbers with the RandomReal command.

In[4]:=
Click for copyable input

You can multiply the matrix with itself, as shown below.

In[5]:=
Click for copyable input
Out[5]=

You can use the graphics processor to do the multiplication using CUDADot.

In[6]:=
Click for copyable input
Out[6]=

It is even faster to load the data onto the GPU with CUDAMemoryLoad. The result is a CUDAMemory expression; this can be used as a handle to the data for more computations.

In[7]:=
Click for copyable input
Out[7]=

Now you can pass the CUDAMemory to CUDADot, which stores the result on the GPU and returns a new CUDAMemory expression.

In[8]:=
Click for copyable input
Out[8]=

You can retrieve the data from the graphics processor with CUDAMemoryGet. Here, the dimensions of the result are shown to be as expected.

In[9]:=
Click for copyable input
Out[9]=

CUDA and CUDALink

CUDA is used as the computing engine for NVIDIA graphics processing units (GPUs); it provides a programming interface that can be called by software applications such as Mathematica with CUDALink. It allows CUDA GPUs to be used for parallel computations, allowing many concurrent threads to run. The following graph shows the performance of CPUs and GPUs—measured in billions of floating-point operations per second (GFLOP/s).


CUDALink allows Mathematica users to call the CUDA programming layer directly; it also provides users higher-level functions, provided in a number of CUDA libraries, for solutions in areas such as high-performance core linear algebra and Fourier transforms.

CUDALink Application Areas

CUDALink provides functions in various application areas. These include carefully tuned linear algebra, discrete Fourier transforms, and image processing algorithms. This section gives an introduction to some of these applications.

Image Processing

CUDALink offers many image processing algorithms that have been carefully tuned to run on GPUs. These include the binary image operations (CUDAImageAdd, CUDAImageSubtract, CUDAImageMultiply, and CUDAImageDivide), the morphology operators (CUDAErosion, CUDADilation, CUDAOpening, and CUDAClosing), and image convolution (CUDAImageConvolve).

To use any of the CUDALink functionality, you first need to include the CUDALink application, as shown below.

In[1]:=
Click for copyable input

Now you can apply CUDA-based image processing functions directly to images. This example carries out channel-wise multiplication of two input images using CUDAImageMultiply.

In[2]:=
Click for copyable input
Out[2]=

Since the CUDA functions are Mathematica functions, they can be used in conjunction with other functions (like Manipulate). In the following example, a linear interpolation is carried out with Manipulate being used to vary the interpolation parameter.

In[3]:=
Click for copyable input
Out[3]=

CUDA functions can also be used with Mathematica's curated data, Import and Export functions, as well as its visualization functions. In the following, the core computation is done with CUDA, while using Mathematica for all the other functions.

In[4]:=
Click for copyable input
Out[5]=

Fourier Analysis

The functions CUDAFourier and CUDAInverseFourier carry out Fourier transforms and inverse Fourier transforms using CUDA.

To use any of the CUDALink functionality, you first need to include the CUDALink application, as shown below.

In[1]:=
Click for copyable input
In[2]:=
Click for copyable input
Out[3]=

If the input to a CUDA function is a CUDAMemory handle, the result will also be a CUDAMemory handle.

In[4]:=
Click for copyable input
Out[5]=

You can then retrieve the data from the GPU with CUDAMemoryGet.

In[6]:=
Click for copyable input
Out[6]=

This general principle applies to all CUDALink functions. It makes it easy to test and develop, and then to work by keeping data on the GPU, which improves efficiency.

CUDALink Programming

A key feature of CUDALink is how it makes it easy to develop new GPU programs and integrate them into your Mathematica work. This requires that you have installed a C compiler.

To use any of the CUDALink functionality, you first need to include the CUDALink application, as shown below.

In[14]:=
Click for copyable input

Here, a simple CUDA function is loaded. It takes an input vector and doubles each element.

In[15]:=
Click for copyable input
Out[15]=

CUDAFunctionLoad requires that you have a C compiler installed. If this does not work for you, try to consult "C Compiler".

Here is an input vector that will be used to call the function.

In[16]:=
Click for copyable input

This calls the CUDAFunction.

In[17]:=
Click for copyable input
Out[17]=

This loads data to the GPU and calls your function on the data. The result is a CUDAMemory expression.

In[5]:=
Click for copyable input
Out[6]=

This retrieves the result from the GPU.

In[7]:=
Click for copyable input
Out[7]=

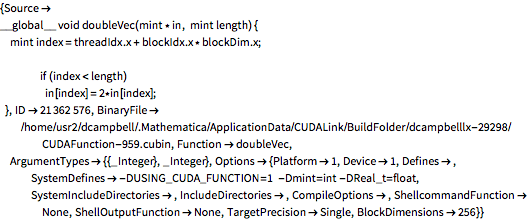

You can get information on your function with CUDAFunctionInformation, as shown in the following.

In[18]:=
Click for copyable input
Out[18]=
