MATHEMATICA HOW TO

How to | Input a Matrix

Mathematica supports operations on matrices of any size and has a range of input methods appropriate for different needs, from small, formatted matrices via keyboard or palettes to text-based entry or automatic import.

Selected examples from the video:

Lists are very important general structures in Mathematica. A matrix in Mathematica is represented as a list of sublists of the same length.

Input a matrix:

 Out[4]=

Use MatrixForm to display as a matrix:

 Out[5]//MatrixForm=

Mathematica also has a user interface to input matrices.

Select Insert Table/Matrix ► New:

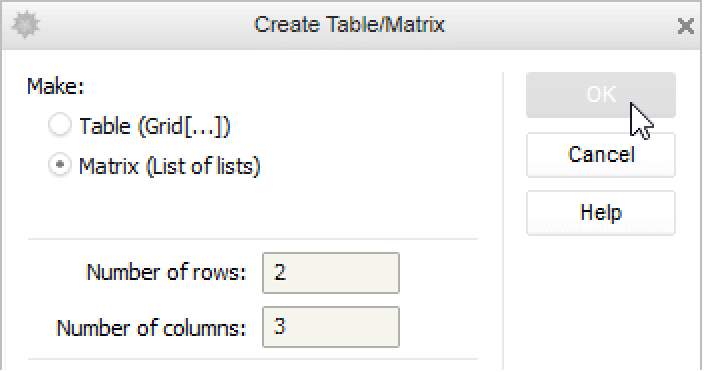

In the window that appears, select Matrix (List of lists), enter the number of rows and columns for your matrix, and click OK:

Click a placeholder to enter input. Once one is highlighted, you can move to the next one using the tab or arrow keys:

Evaluating the matrix gives its underlying structure as a uniform nested list:

 Out[6]=

You can also enter matrices using the Basic Math Assistant palette.

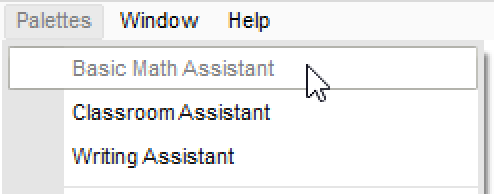

Open the palette from the Palettes menu:

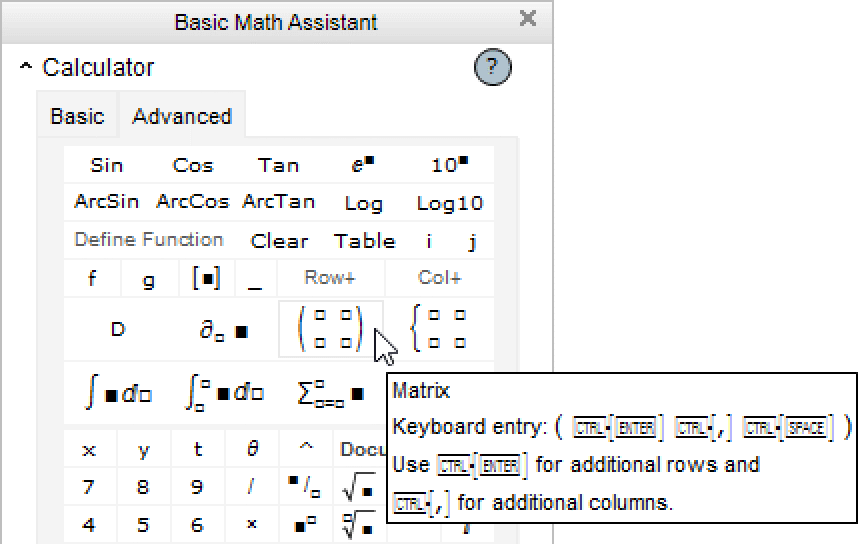

On the Advanced tab, click the Matrix button to insert a 2×2 matrix:

As before, you can move through the empty placeholders using the tab or arrow keys.

To create a new row, use Ctrl+ Enter. The new row will be inserted immediately below the position of your cursor. Pressing Ctrl+ Enter with the cursor positioned after any entry in the last row creates a new row at the bottom of the matrix:

Similarly, new columns can be entered using Ctrl+ ,:

You can import a matrix from a file. In this example, data is imported from a file and displayed in MatrixForm:

 Out[7]//MatrixForm=
