SystemsModelParallelConnect

SystemsModelParallelConnect[sys1, sys2]
connects the systems models and in parallel.

SystemsModelParallelConnect[sys1, sys2, {{in11, in21}, ...}, {{out11, out21}, ...}]

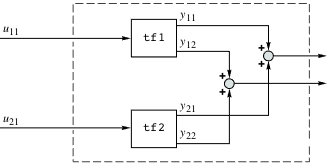

connects the inputs to inputs and sums the outputs and outputs .

DetailsDetails

ExamplesExamplesopen allclose all

Basic Examples (4)Basic Examples (4)

Connect two continuous-time systems in parallel:

In[1]:=
Click for copyable input
Out[1]=

Connect two discrete-time systems in parallel:

In[1]:=
Click for copyable input
Out[1]=

Connect state-space systems:

In[1]:=
Click for copyable input
Out[1]=

Parallel connect a two-output, one-input system and a one-input, one-output system:

In[1]:=
Click for copyable input

Merge no inputs and sum no outputs:

In[2]:=
Click for copyable input
Out[2]=

Merge inputs and sum no outputs:

In[3]:=
Click for copyable input
Out[3]=

Merge no inputs and sum output 2 from sys1 with output 1 from sys2:

In[4]:=
Click for copyable input
Out[4]=

Merge inputs and sum output 2 from sys1 with output 1 from sys2:

In[5]:=
Click for copyable input
Out[5]=
