Show

Show[graphics,options]

shows graphics with the specified options added.

Show[g1,g2,…]

shows several graphics combined.

Details

  • Show can be used with Graphics and Graphics3D.
  • Show allows any option that can be applied to graphics to be given.
  • Options explicitly specified in Show override those included in the graphics expression.
  • Show[g1,g2,…] or Show[{g1,g2,…}] concatenates the graphics primitives in the gi, effectively overlaying the graphics.
  • The lists of non‐default options in the gi are concatenated.
  • Show applies the function defined as the setting for DisplayFunction, and returns the result. For ordinary notebook operation, this function is just Identity.

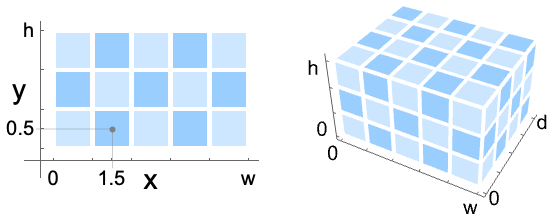

  • Image and Image3D objects can also be combined with other graphics. Their pixel positions range from 0 to the dimensions of the image in the standard image coordinate system:

Examples

open allclose all

Basic Examples  (3)

Combine the plot of a curve with the plot of a list:

Combine the density plot with the contour plot:

Change options for existing graphics:

Options  (2)

DisplayFunction  (2)

Display a graphic in PopupWindow when clicked:

Display a graphic in a new notebook:

Applications  (1)

Import an elevation map and take a part of it:

Draw a relief-shaded map:

Draw contour lines:

Combine two plots:

Possible Issues  (1)

Show uses the options from the first graphic:

To see the entire graphic, use PlotRange->All:
