ElectricRadiatorThermal model of electric radiator |
 |

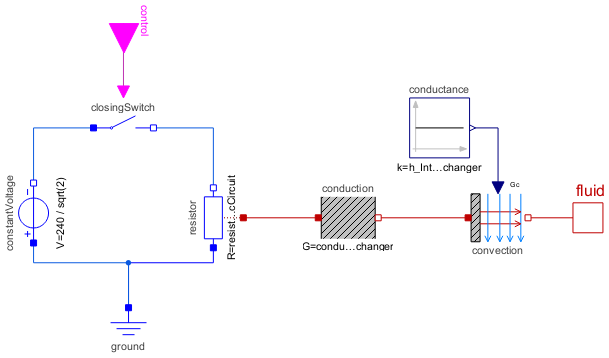

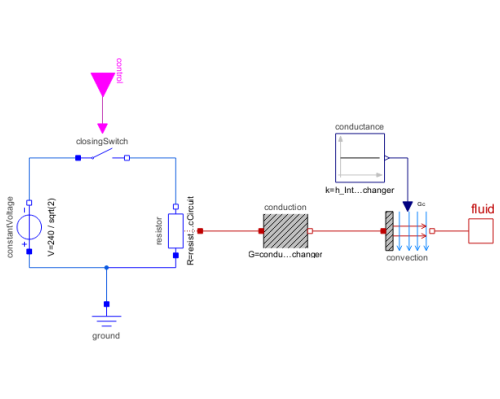

Diagram
Wolfram Language
In[1]:=

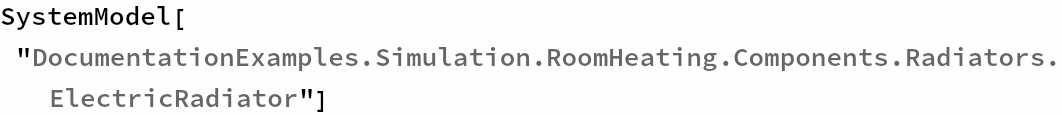

SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Radiators.ElectricRadiator"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (5)
| h_Internal |
Value: 10 Type: Real (W/(m²⋅K)) Description: Heat transfer coefficient |
|---|---|
| areaOfHeatExchanger |
Value: 1 Type: Real (m²) Description: Area of the heat exchanger |
| thicknessHeatExchanger |
Value: 0.08 Type: Real (m) Description: Thickness of the heat exchanger |
| conductivityHeatExchanger |
Value: 5 Type: Real (W/(m⋅K)) Description: Thermal conductivity of the heat exchanger |
| resistanceElectricCircuit |
Value: 100 Type: Real (Ω) Description: Electric resistance of the resistor in the electric circuit |
Connectors (2)
 |
fluid |
Type: HeatPort_b Description: Thermal port for 1-dim. heat transfer (unfilled rectangular icon) |
|---|---|---|
 |
control |
Type: BooleanInput Description: 'input Boolean' as connector |
Components (7)
 |
ground |
Type: Ground Description: Ground node |
|---|---|---|
 |
conduction |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
 |
convection |
Type: Convection Description: Lumped thermal element for heat convection (Q_flow = Gc*dT) |
 |
conductance |
Type: Constant Description: Generate constant signal of type Real |
 |
resistor |
Type: Resistor Description: Ideal linear electrical resistor |
 |
closingSwitch |
Type: IdealClosingSwitch Description: Ideal electrical closer |
 |
constantVoltage |
Type: ConstantVoltage Description: Source for constant voltage |
