WallWithConvectionWall with heat transfer by conduction and convection |
 |

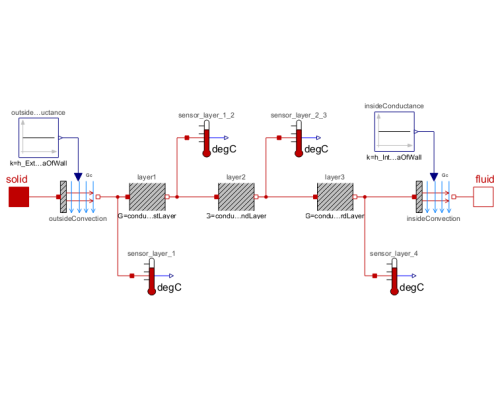

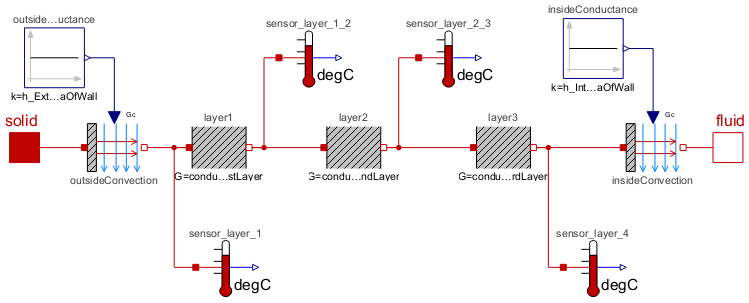

Diagram
Wolfram Language

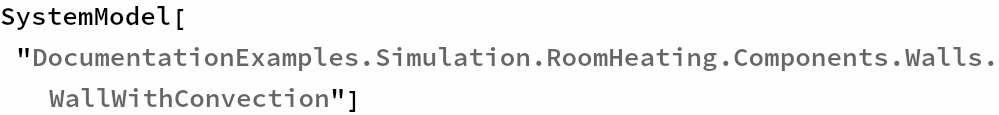

In[1]:=
SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Walls.WallWithConvection"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (11)
| areaOfWall |
Value: 0.8 * 12 Type: Real (m²) Description: Area of the wall |
|---|---|
| lengthFirstLayer |
Value: 0.004 Type: Real (m) Description: Length of the first layer |
| lengthSecondLayer |
Value: 0.1 Type: Real (m) Description: Length of the second layer |
| lengthThirdLayer |
Value: 0.004 Type: Real (m) Description: Length of the third layer |
| conductivityFirstLayer |
Value: 0.07 Type: Real (W/(m⋅K)) Description: Thermal conductivity of the first layer |
| conductivitySecondLayer |
Value: 0.3 Type: Real (W/(m⋅K)) Description: Thermal conductivity of the second layer |
| conductivityThirdLayer |
Value: 0.07 Type: Real (W/(m⋅K)) Description: Thermal conductivity of the third layer |
| externalTemp |
Value: -10 Type: Real (°C) Description: Temperature of the outside environment |
| internalTemp |
Value: 20 Type: Real (°C) Description: Temperature of the inside environment |
| h_External |
Value: 40 Type: Real (W/(m²⋅K)) Description: Heat transfer coefficient of the outside surface |
| h_Internal |
Value: 10 Type: Real (W/(m²⋅K)) Description: Heat transfer coefficient of the inside surface |
Connectors (2)
 |
solid |
Type: HeatPort_a Description: Thermal port for 1-dim. heat transfer (filled rectangular icon) |
|---|---|---|
 |
fluid |
Type: HeatPort_b Description: Thermal port for 1-dim. heat transfer (unfilled rectangular icon) |
Components (11)
 |
layer1 |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
|---|---|---|
|
layer2 |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
|
layer3 |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
 |
sensor_layer_1_2 |
Type: TemperatureSensor Description: Absolute temperature sensor in degCelsius |
|
sensor_layer_2_3 |
Type: TemperatureSensor Description: Absolute temperature sensor in degCelsius |
 |
outsideConvection |
Type: Convection Description: Lumped thermal element for heat convection (Q_flow = Gc*dT) |
|
insideConvection |
Type: Convection Description: Lumped thermal element for heat convection (Q_flow = Gc*dT) |
 |
outsideConductance |
Type: Constant Description: Generate constant signal of type Real |
|
insideConductance |
Type: Constant Description: Generate constant signal of type Real |
|
sensor_layer_1 |
Type: TemperatureSensor Description: Absolute temperature sensor in degCelsius |
|
sensor_layer_4 |
Type: TemperatureSensor Description: Absolute temperature sensor in degCelsius |
