PulseSeries

Series of pulses

Wolfram Language

In[1]:=
SystemModel["Modelica.Electrical.Batteries.Utilities.PulseSeries"]
Out[1]:=

Information

This information is part of the Modelica Standard Library maintained by the Modelica Association.

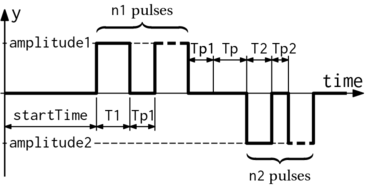

Starting at time = startTime, first a series of n1 pulses of amplitude1 with length T1 and pause after each pulse Tp1 is issued.
Then, after a pause Tp, a series of n2 pulses of amplitude2 with length T2 and pause after each pulse Tp2 is issued.

Parameters (11)

offset

Value: 0

Type: Real

Description: Offset of output signal y

startTime

Value: 0

Type: Time (s)

Description: Output y = offset for time < startTime

amplitude1

Value: 1

Type: Real

Description: Amplitude of 1st pulse series

n1

Value: 1

Type: Integer

Description: Number of pulses of 1st series

T1

Value:

Type: Time (s)

Description: Length of pulses of 1st series

Tp1

Value:

Type: Time (s)

Description: Pause between pulses of 1st series

amplitude2

Value: -amplitude1

Type: Real

Description: Amplitude of 2nd pulse series

n2

Value: 1

Type: Integer

Description: Number of pulses of 2nd series

T2

Value: T1

Type: Time (s)

Description: Length of pulses of 2nd series

Tp2

Value: Tp1

Type: Time (s)

Description: Pause between pulses of 1st series

Tp

Value:

Type: Time (s)

Description: Pause between the two series

Connectors (1)

y

Type: RealOutput

Description: Connector of Real output signal

Used in Examples (2)

BatteryDischargeCharge

Modelica.Electrical.Batteries.Examples

Discharge and charge idealized battery

SuperCapDischargeCharge

Modelica.Electrical.Batteries.Examples

Discharge and charge idealized supercap
