FilterOrder

Block to determine the minimum filter order

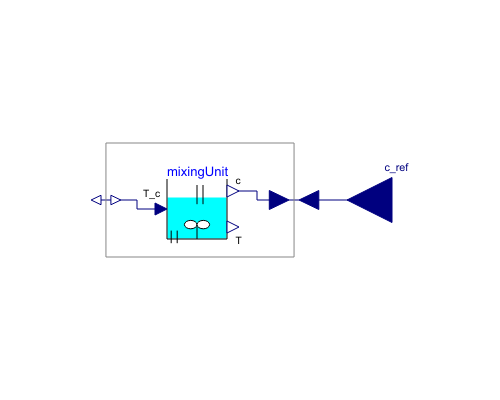

Diagram

Wolfram Language

In[1]:=

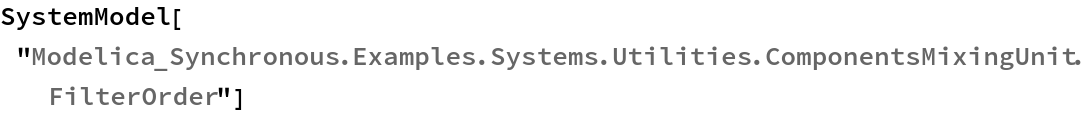

SystemModel["Modelica_Synchronous.Examples.Systems.Utilities.ComponentsMixingUnit.FilterOrder"]
Out[1]:=

Connectors (1)

c_ref

Type: RealInput

Description: 'input Real' as connector

Components (2)

mixingUnit

Type: MixingUnit

Description: Mixing unit demo from Foellinger, Nichtlineare Regelungen II, p. 280

inverseBlockConstraints

Type: InverseBlockConstraints

Description: Construct inverse model by requiring that two inputs and two outputs are identical
