VectorStyle
✖
VectorStyle

✖

is an option to VectorPlot, ListVectorPlot, and related functions that determines the style to use for drawing field vectors.

Details

  • The setting for VectorStyle can include any color, thickness, dashing, arrowhead, or other graphics directive.
  • VectorStyle->g specifies that a graphics directive g should be used to draw vectors in a plot.
  • VectorStyle->{g1,g2,…} specifies that successive directives gi should be used cyclically for successive vector fields.
  • The directives that can be given include:
  • Arrowheads[spec]arrowheads
    Dashing[{w1,…}]dashing specification
    Directive[g1,g2,…]composite graphics directive
    Glow[c]glow color
    GrayLevel[i]intensity
    Hue[h]hue
    Opacity[a]opacity
    Red, Blue, etc.named colors
    RGBColor[r,g,b]RGB color
    Specularity[s]surface specularity
    Opacity[a]opacity
    Thickness[w]line thickness
  • If an explicit setting is given for VectorColorFunction, it is used in preference to the setting for VectorStyle.

Examples

open allclose all

Basic Examples  (4)Summary of the most common use cases

Vector fields are colored to indicate magnitude:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-pz5hr
Out[1]=1

Modify the style of the vectors:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-llijk4
Out[1]=1

Set VectorColorFunctionNone to modify the color of the vectors:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-bjjxy7
Out[1]=1

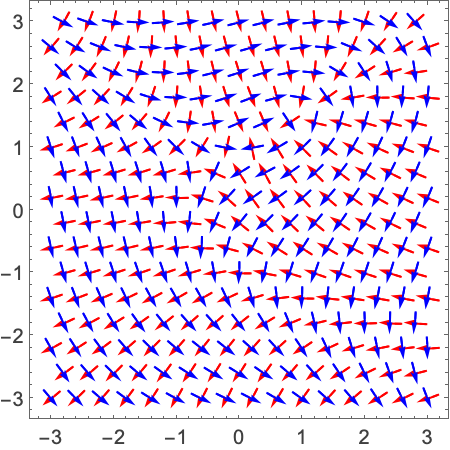

Set the style for multiple vector fields:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-csmqbc
Out[1]=1

Scope  (5)Survey of the scope of standard use cases

Combine vector styles with vector markers:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-hltqgp
Out[1]=1

Control the size of the arrowheads:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-hud1zx
Out[1]=1

Use an arbitrary graphic as the arrowheads for vectors:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-djyz4h
Out[1]=1

Plot a vector field using 3D arrows:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-zx5cw
Out[1]=1

Use Graphics3D as a style for the 3D arrows:

In[2]:=2
✖
https://wolfram.com/xid/0tz9k756-safww
Out[2]=2

Use Arrowheads to specify the style of the arrowheads:

In[1]:=1
✖
https://wolfram.com/xid/0tz9k756-dbxw5f
Out[1]=1

Change the scaling using the VectorScaling option:

In[2]:=2
✖
https://wolfram.com/xid/0tz9k756-f2cmm7
Out[2]=2
