BlackmanNuttallWindow

BlackmanNuttallWindow[x]

represents a Blackman–Nuttall window function of x.

Details

  • BlackmanNuttallWindow is a window function typically used in signal processing applications where data needs to be processed in short segments.
  • Window functions have a smoothing effect by gradually tapering data values to zero at the ends of each segment.
  • BlackmanNuttallWindow[x] is equal to  (4891775 cos(2 pi x)+1365995 cos(4 pi x)+106411 cos(6 pi x)+3635819)/(10000000) -1/2<=x<=1/2; 0 TemplateBox[{x}, Abs]>1/2; .
  • BlackmanNuttallWindow automatically threads over lists.

Examples

open allclose all

Basic Examples  (3)

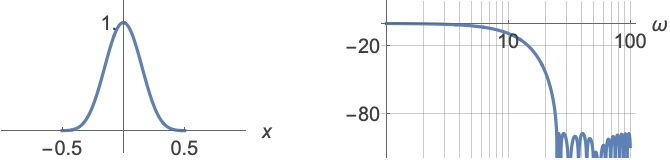

Shape of a 1D Blackman–Nuttall window:

Shape of a 2D Blackman–Nuttall window:

Extract the continuous function representing the Blackman–Nuttall window:

Scope  (4)

Evaluate numerically:

Translated and dilated Blackman–Nuttall window:

2D Blackman–Nuttall window with a circular support:

Discrete Blackman–Nuttall window of length 15:

Discrete 15×10 2D Blackman–Nuttall window:

Applications  (3)

Create a moving average filter of length 11:

Taper the filter using a Blackman–Nuttall window:

Log-magnitude plot of the power spectra of the filters:

Use a window specification to calculate sample PowerSpectralDensity:

Calculate the spectrum:

Compare to spectral density calculated without a windowing function:

The plot shows that window smooths the spectral density:

Compare to the theoretical spectral density of the process:

Use a window specification for time series estimation:

Specify window for spectral estimator:

Properties & Relations  (2)

The area under the Blackman–Nuttall window:

Normalize to create a window with unit area:

Fourier transform of the Blackman–Nuttall window:

Power spectrum of the Blackman–Nuttall window:
