LQOutputRegulatorGains[sspec,wts]

为使用权重 wts 最小化输出代价函数的系统规范 sspec 给出状态反馈增益.

LQOutputRegulatorGains[…,"prop"]

给出属性 "prop" 的值.

更多信息和选项
Details and Options Details and Options
范例
基本范例
范围
基本用法
受控对象模型
属性
闭环系统
应用
属性和关系
参见
相关指南
历史
按以下格式引用：

LQOutputRegulatorGains

LQOutputRegulatorGains[sspec,wts]

为使用权重 wts 最小化输出代价函数的系统规范 sspec 给出状态反馈增益.

LQOutputRegulatorGains[…,"prop"]

给出属性 "prop" 的值.

更多信息和选项

  • LQOutputRegulatorGains 也被称为线性二次型输出调节器、线性二次型输出控制器或最优控制器.
  • LQOutputRegulatorGains 通常用于稳定一个系统或提升其性能.
  • 控制器通常由状态反馈 给出，其中 是计算出的增益矩阵.
  • sys 的输入 u 由反馈输入 uf 和可能会有的其他输入 ue 组成.
  • sys 的输出 y 由经调节的输出 yr 和可能会有的其他输出组成.
  • 系统规范 sspec 是系统 sys 和 uf 及 yr 规范一起组成的.
  • LQOutputRegulatorGains 使用经调节的输出 yr 和线性系统 sys 的反馈输入 uf 的权重 q、r 和 p 来最小化二次型代价函数：
  • 连续时间系统
    离散时间系统
  • LQ 设计可用于 StateSpaceModel 指定的线性系统：
  • 连续时间系统
    离散时间系统
  • 然后，可用 kappa=TemplateBox[{{r, _, 1}}, Inverse].x_1 计算所得的反馈增益矩阵：
  • 连续时间系统
    离散时间系统
  • 矩阵 xr 是 Riccati 方程的解：
  • 连续时间系统
    离散时间系统
  • 子矩阵 bf、cr 和 drf 对应反馈输入 uf 和经调节输出 yr.
  • 权重 wts 可有如下形式：
  • {q,r}没有交叉耦合的代价函数
    {q,r,p}有交叉耦合矩阵 p 的代价函数
  • 系统规范 sspec 可有如下形式：
  • StateSpaceModel[…]线性控制输入和线性状态
    AffineStateSpaceModel[…]线性控制输入和非线性状态
    NonlinearStateSpaceModel[…]非线性控制输入和非线性状态
    SystemModel[…]通用系统模型
    <|…|>以 Association 形式给出的具体系统规范
  • 具体系统规范可以有如下密钥：
  • "InputModel"sys模型中的任意一个
    "FeedbackInputs"All反馈输入 uf
    "RegulatedOutputs"All经调节的输出 yr
  • 输入和输出有下列形式：
  • {num1,…,numn}StateSpaceModel、AffineStateSpaceModel 和 NonlinearStateSpaceModel 使用的有编号的输入或输出 numi
    {name1,…,namen}SystemModel 使用的有名输入或输出 namei
    All使用所有的输入或输出

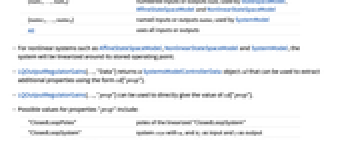

  • 对于非线性系统诸如 AffineStateSpaceModel、NonlinearStateSpaceModel 和 SystemModel，系统会围着其储存工作点进行线性化.
  • LQOutputRegulatorGains[…,"Data"] 返回可使用形式 cd["prop"] 来提取 SystemsModelControllerData 对象 cd.
  • LQOutputRegulatorGains[…,"prop"] 可用于直接给出 cd["prop"] 的值.

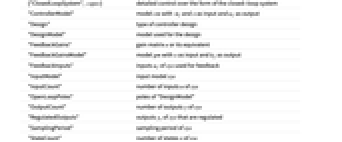

  • "prop" 的可能值包括：
  • "ClosedLoopPoles"线性化 "ClosedLoopSystem" 的极点
    "ClosedLoopSystem"ue 和 作为输入且 y 作为输出的系统 csys
    {"ClosedLoopSystem", cspec}对闭环系统形式的具体控制
    "ControllerModel" 和 x 作为输入且 uf 作为输出的模型 cm
    "Design"控制器设计的类型
    "DesignModel"设计使用的模型
    "FeedbackGains"增益矩阵 κ 或其等价物
    "FeedbackGainsModel"x 作为输入且 作为输出的模型 gm
    "FeedbackInputs"用于反馈的 sys 的输入 uf
    "InputModel"输入模型 sys
    "InputCount"sys 的输入 u 的数量
    "OpenLoopPoles""DesignModel" 的极点
    "OutputCount"sys 的输出 y 的数量
    "RegulatedOutputs"sys 的经调节的输出 yr
    "SamplingPeriod"sys 的取样周期
    "StateCount"sys 的状态 x 的数量

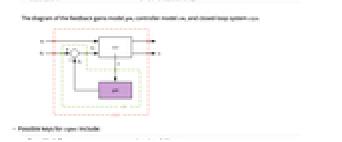

    • 反馈增益模型 gm、控制器模型 cm，和闭环系统 csys 的图示.

    Wolfram Language code: [image]
  • cspec 的可能密钥包括：
  • "InputModel"csys 中的输入模型
    "Merge"是否合并 csys
    "ModelName"csys 的名称

范例

打开所有单元 关闭所有单元

基本范例  (2)

连续时间系统的一组最优输出加权状态反馈增益：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{0, 1, 0}, {0, -0.01, 0.3}, {0, -0.003, -10}}, {{0, 0}, {0, -1}, {0.1, 0}}, {{1, 0, 0}, {0, 1, 0}}, {{1, 0}, {0, 1}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {(| | | | - | - | | 1 | 0 | | 0 | 1 |), (| | | | --- | --- | | 0.1 | 0 | | 0 | 0.1 |)}]//MatrixForm

离散时间系统的 LQ 输出调节器增益：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{-0.05156, -0.05877}, {0.01503, -0.005887}}, {{0}, {-0.03384}}, {{1.1, -0.5}, {-0.7, 1}}, {{0.1}, {0.2}}}, SamplingPeriod -> 0.1, SystemsModelLabels -> None], {(| | | | -- | --- | | 10 | 0 | | 0 | 0.1 |), {{1}}}]

范围  (27)

基本用法  (8)

给输出和输入以相同的权重，计算系统的状态反馈增益：

Wolfram Language code: ssm = StateSpaceModel[{{{-10}}, {{1}}, {{1}}, {{1}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: κ = LQOutputRegulatorGains[ssm, {{{1}}, {{1}}}]

闭环系统：

Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, κ]//Simplify

为不稳定系统计算增益：

Wolfram Language code: ssm = StateSpaceModel[{{{10}}, {{1}}, {{1}}, {{1}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: κ = LQOutputRegulatorGains[ssm, {{{1}}, {{1}}}]

增益稳定了不稳定系统：

Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, κ]//Simplify

为多输出系统计算状态反馈增益：

Wolfram Language code: ssm = StateSpaceModel[{{{0, 0, -0.1}, {1., 0., -1.08}, {0., 1., -0.9}}, {{1}, {1}, {0}}, {{0, 1, 1}, {0, 0, 1}}, {{0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: κ = LQOutputRegulatorGains[ssm, {(⁠| | | | - | - | | 1 | 0 | | 0 | 2 |⁠), (⁠0.5⁠)}]

结果的维数与输入的数量和系统阶数对应：

Wolfram Language code: Dimensions[κ]
Wolfram Language code: {SystemsModelDimensions[ssm][[1]], SystemsModelOrder[ssm]}

为有 3 个输出和 2 个输入的系统计算增益：

Wolfram Language code: ssm = StateSpaceModel[{{{0, 0, -0.1, 0}, {1., 0., -1.08, 0.1}, {0., 1., -0.9, -1}, {0, 1, 0, 0}}, {{1, 0}, {0, 1}, {0, 0}, {0, 0}}, {{1, 0, 0, 1}, {0, 1, 0, 1}, {0, 0, 1, 1}}, {{0, 0}, {0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: MatrixForm[κ1 = LQOutputRegulatorGains[ssm, {(⁠| | | | | - | - | -- | | 1 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 10 |⁠), (⁠| | | | - | - | | 1 | 0 | | 0 | 5 |⁠)}]]

倒转反馈输入的权重：

Wolfram Language code: MatrixForm[κ2 = LQOutputRegulatorGains[ssm, {(⁠| | | | | - | - | -- | | 1 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 10 |⁠), (⁠| | | | - | - | | 5 | 0 | | 0 | 1 |⁠)}]]

通常，反馈输入权重越大模越小：

Wolfram Language code: Norm /@ κ1 Norm /@ κ2

计算当代价函数包含输出和反馈输入的交叉耦合时的增益：

Wolfram Language code: ssm = StateSpaceModel[{{{0, 0, -0.1}, {1., 0., -1.08}, {0., 1., -0.9}}, {{1, 1}, {1, 0}, {0, 0}}, {{1, 0, 1}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: LQOutputRegulatorGains[ssm, {(⁠1⁠), (⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠0.1 0.1⁠)}]//MatrixForm

为多输出系统选择反馈输出：

Wolfram Language code: ssm = StateSpaceModel[{{{0, 1., 0.}, {0, 0., 1.}, {-0.1, -1.08, -0.9}}, {{0}, {0}, {1}}, {{1, 1, 0}, {1, 0, 0}}, {{0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: wts = {(⁠1⁠), (⁠5⁠)};

选择第一个输出：

Wolfram Language code: LQOutputRegulatorGains[<|"InputModel" -> ssm, "RegulatedOutputs" -> 1|>, wts]

选择第二个输出：

Wolfram Language code: LQOutputRegulatorGains[<|"InputModel" -> ssm, "RegulatedOutputs" -> 2|>, wts]

为多输入系统选择反馈输入：

Wolfram Language code: ssm = StateSpaceModel[{{{0, 0, -0.1}, {1., 0., -1.08}, {0., 1., -0.9}}, {{1, 1}, {1, 0}, {0, 0}}, {{1, 0, 1}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: wts = {(⁠1⁠), (⁠5⁠)};

选择第一个输入：

Wolfram Language code: LQOutputRegulatorGains[<|"InputModel" -> ssm, "FeedbackInputs" -> 1|>, wts]

选择第二个输入：

Wolfram Language code: LQOutputRegulatorGains[<|"InputModel" -> ssm, "FeedbackInputs" -> 2|>, wts]

为非线性系统计算增益：

Wolfram Language code: nssm = NonlinearStateSpaceModel[{{u + x + x^2}, {-1 + x}}, {{x, 1}}, {{u, -2}}, {Automatic}, Automatic, SamplingPeriod -> None];

控制器以向量形式返回，并考虑工作点：

Wolfram Language code: LQOutputRegulatorGains[nssm, {{{10}}, {{1}}}]

近似线性系统的控制器：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[nssm], {{{10}}, {{1}}}]

受控对象模型  (6)

连续时间 StateSpaceModel：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{0, 1.}, {-1, -1.6}}, {{0}, {1}}, {{1, 1}, {0, 1}}, {{0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}]

离散时间 StateSpaceModel：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{0, 1.}, {0.020000000000000004, 0.1}}, {{0}, {1}}, {{1, 1}, {0, 1}}, {{0}, {0}}}, SamplingPeriod -> τ, SystemsModelLabels -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}]

描述符 StateSpaceModel：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{-6, -4}, {-6, -5}}, {{1}, {1}}, {{1, 1}, {0, 1}}, {{0}, {0}}, {{1, 1}, {0, 1}}}, {{x1[t], 0}, {x2[t], 0}}, {{u[t], 0}}, Automatic, t, SamplingPeriod -> None, SystemsModelLabels -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1.0⁠)}]

AffineStateSpaceModel:

Wolfram Language code: LQOutputRegulatorGains[AffineStateSpaceModel[{{Sin[Subscript[x, 1]] + Subscript[x, 2], -Subscript[x, 1] - Subscript[x, 2]}, {{Subscript[x, 1]}, {1}}, {Subscript[x, 1] - Subscript[x, 2], Subscript[x, 2]}, {{0}, {0}}}, {Subscript[x, 1], Subscript[x, 2]}, {{u, 0}}, {Automatic, Automatic}, Automatic, SamplingPeriod -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1.0⁠)}]

NonlinearStateSpaceModel:

Wolfram Language code: LQOutputRegulatorGains[NonlinearStateSpaceModel[ {{Subscript[x, 2] + Subscript[x, 1]*Subscript[x, 2], u + Subscript[x, 1]}, {Subscript[x, 1] - Subscript[x, 2], Subscript[x, 2]}}, {Subscript[x, 1], Subscript[x, 2]}, {u}, {Automatic, Automatic}, Automatic, SamplingPeriod -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1.0⁠)}]

SystemModel:

Wolfram Language code: sm = CreateSystemModel[{x''[t] + x'[t] + x[t] == u[t], y1[t] == x[t], y2[t] == x'[t]}, t, {"u"∈"Modelica.Blocks.Interfaces.RealInput", {"y1", "y2"}∈"Modelica.Blocks.Interfaces.RealOutput"}];
Wolfram Language code: LQOutputRegulatorGains[sm, {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}]

属性  (10)

LQOutputRegulatorGains 默认返回反馈增益：

Wolfram Language code: ssm = StateSpaceModel[{{{0, 1}, {-1, -2}}, {{0}, {1}}, {{1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: wts = {(⁠1.0⁠), (⁠1.0⁠)};
Wolfram Language code: LQOutputRegulatorGains[ssm, wts]
Wolfram Language code: % == LQOutputRegulatorGains[ssm, wts, "FeedbackGains"]

通常来说，反馈在状态中仿射：

Wolfram Language code: κ = LQOutputRegulatorGains[NonlinearStateSpaceModel[ {{-Subscript[x, 1] + u*Subscript[x, 1] + Subscript[x, 2]/E^Subscript[x, 1], E^Subscript[x, 2] - Subscript[x, 1]}, {u + Subscript[x, 1], Subscript[x, 2]}}, {{Subscript[x, 1], 1}, {Subscript[x, 2], 0}}, {{u, 1.}}, {Automatic, Automatic}, Automatic, SamplingPeriod -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}]

形式为 κ0+κ1.x，其中 κ0 和 κ1 为常数：

Wolfram Language code: {κ0, κ1} = {κ /. {Subscript[x, _] -> 0}, D[κ, {{Subscript[x, 1], Subscript[x, 2]}}]}

反馈增益的系统模型：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{0, 1}, {-1, -2}}, {{0}, {1}}, {{1, 1}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {(⁠1.0⁠), (⁠1.0⁠)}, "FeedbackGainsModel"]

反馈增益的仿射系统模型：

Wolfram Language code: LQOutputRegulatorGains[NonlinearStateSpaceModel[{{Subscript[x, 2], -2/3 + u - Subscript[x, 1]/3 - Subscript[x, 2]/2}, {Subscript[x, 1] + Subscript[x, 2]}}, {{Subscript[x, 1], 1}, {Subscript[x, 2], 0}}, {{u, 1.}}, {Automatic}, Automatic, SamplingPeriod -> None], {(⁠1.0⁠), (⁠1.0⁠)}, "FeedbackGainsModel"]//Chop

闭环系统：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{{{0., 1.}, {-0.05, -0.9}}, {{0}, {1}}, {{1, 1}, {0, 1}}, {{0}, {0}}}, {Subscript[x, 1], Subscript[x, 2]}, {{f, 0}}, SamplingPeriod -> None, SystemsModelLabels -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}, "ClosedLoopSystem"]

线性化闭环系统的极点：

Wolfram Language code: assm = AffineStateSpaceModel[{{Subscript[x, 2], -0.05*Subscript[x, 1] - 0.9*Subscript[x, 2]^2}, {{0}, {1}}, {Subscript[x, 1] + Subscript[x, 2], Subscript[x, 2]}, {{0}, {0}}}, {Subscript[x, 1], Subscript[x, 2]}, {{f, 0}}, {Automatic, Automatic}, Automatic, SamplingPeriod -> None]; wts = {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)};
Wolfram Language code: LQOutputRegulatorGains[assm, wts, "ClosedLoopPoles"]

用于计算反馈增益的模型：

Wolfram Language code: assm = AffineStateSpaceModel[{{Subscript[x, 2], -0.05*Subscript[x, 1] - 0.9*Subscript[x, 2]^2}, {{0}, {1}}, {Subscript[x, 1] + Subscript[x, 2], Subscript[x, 2]}, {{0}, {0}}}, {Subscript[x, 1], Subscript[x, 2]}, {{f, 0}}, {Automatic, Automatic}, Automatic, SamplingPeriod -> None]; wts = {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)};
Wolfram Language code: dmodel = LQOutputRegulatorGains[assm, wts, "DesignModel"]

设计模型和输入模型的增益：

Wolfram Language code: LQOutputRegulatorGains[dmodel, wts] LQOutputRegulatorGains[assm, wts]

设计方法：

Wolfram Language code: LQOutputRegulatorGains[AffineStateSpaceModel[{{Subscript[x, 2], -0.05*Subscript[x, 1] - 0.9*Subscript[x, 2]^2}, {{0}, {1}}, {Subscript[x, 1] + Subscript[x, 2], Subscript[x, 2]}, {{0}, {0}}}, {Subscript[x, 1], Subscript[x, 2]}, {{f, 0}}, {Automatic, Automatic}, Automatic, SamplingPeriod -> None], {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}, "Design"]

与输入模型相关的属性：

Wolfram Language code: Dataset[Table[{prop, LQOutputRegulatorGains[IconizedObject[«sys»], IconizedObject[«wts»], prop]}, {prop, IconizedObject[«props»]}]]

获取控制器数据目标：

Wolfram Language code: 𝒸𝒹 = LQOutputRegulatorGains[IconizedObject[«sys»], IconizedObject[«wts»], "Data"]

可用属性列表：

Wolfram Language code: 𝒸𝒹["Properties"]

特定属性值：

Wolfram Language code: 𝒸𝒹["ClosedLoopPoles"]

闭环系统  (3)

为非线性受控对象模型模拟闭环系统：

Wolfram Language code: assm = AffineStateSpaceModel[{{Subscript[x, 1] - Subscript[x, 1]^2 - Subscript[x, 2], Subscript[x, 1]}, {{0}, {1}}, {Subscript[x, 1] + Subscript[x, 2]}, {{0}}}, {Subscript[x, 1], Subscript[x, 2]}, {u}, {Automatic}, Automatic, SamplingPeriod -> None];
Wolfram Language code: csys1 = LQOutputRegulatorGains[assm, {(⁠1.0⁠), (⁠1.0⁠)}, "ClosedLoopSystem"]

有线性化模型的闭环系统：

Wolfram Language code: csys2 = LQRegulatorGains[assm, {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1.0⁠)}, {"ClosedLoopSystem", <|"InputModel" -> AffineStateSpaceModel[{{Subscript[x, 1] - Subscript[x, 2], Subscript[x, 1]}, {{0}, {1}}, {Subscript[x, 1] + Subscript[x, 2]}, {{0}}}, {Subscript[x, 1], Subscript[x, 2]}, {u}, {Automatic}, Automatic, SamplingPeriod -> None]|>}]

比较两个系统的响应：

Wolfram Language code: Table[OutputResponse[{sys, {0.5, 1}}, 0, {t, 0, 7}], {sys, {csys1, csys2}}]; Plot[%, {t, 0, 7}, PlotLegends -> {"Nonlinear", "Linear"}, PlotRange -> All]

使用一个干扰和一个反馈输入模拟受控对象的合并闭环：

Wolfram Language code: sys = <|"InputModel" -> StateSpaceModel[{{{0., 1.}, {-0.05, -0.9}}, {{0, 0}, {1, 1}}, {{1, 1}}, {{0, 0}}}, {Subscript[x, 1], Subscript[x, 2]}, {{d, 0}, {f, 0}}, SamplingPeriod -> None, SystemsModelLabels -> {{Subscript[u, e], Subscript[u, f]}}], "FeedbackInputs" -> 2|>;
Wolfram Language code: wts = {(⁠1.0⁠), (⁠1.0⁠)};
Wolfram Language code: LQOutputRegulatorGains[sys, wts, "ClosedLoopSystem"]

未合并闭环系统：

Wolfram Language code: LQOutputRegulatorGains[sys, wts, {"ClosedLoopSystem", <|"Merge" -> False|>}]

当合并时，会给出和之前一样的结果：

Wolfram Language code: SystemsModelMerge[%]

明确指定合并闭环系统：

Wolfram Language code: LQOutputRegulatorGains[sys, wts, {"ClosedLoopSystem", <|"Merge" -> True|>}]

使用一个合适的名字创建闭环系统：

Wolfram Language code: sm = CreateSystemModel["MassSpringDamper", {m x''[t] + c x'[t] + k x[t] == u[t], y1[t] == x[t], y2[t] == x'[t]}, t, {"u"∈"Modelica.Blocks.Interfaces.RealInput", {"y1", "y2"}∈"Modelica.Blocks.Interfaces.RealOutput"}, <|"ParameterValues" -> {m -> 10, c -> 10^2, k -> 10^3}|>];
Wolfram Language code: csysName = "MassSpringDamperWithStateFeedback";csys = LQOutputRegulatorGains[sm, {(⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠), (⁠1⁠)}, {"ClosedLoopSystem", <|"ModelName" -> csysName|>}]

闭环系统有特定的名称：

Wolfram Language code: csys["ModelName"]

这个名称可以直接用于指定其他函数中的闭环模型：

Wolfram Language code: SystemModelSimulate[csysName, {"y1", "y2"}, 2, <|"Inputs" -> {"u" -> UnitStep}|>]

模拟结果：

Wolfram Language code: SystemModelPlot[%, All, PlotRange -> All]

应用  (2)

对一个飞行器模型，构建输出加权状态反馈增益矩阵：

Wolfram Language code: aircraftM = StateSpaceModel[{{{0.4158, 1.025, -0.00267, -0.00011106, -0.08021, 0}, {-5.5, -0.8302, -0.06549, -0.0039, -5.115, 0.809}, {0, 0, 0, 1, 0, 0}, {-1040, 78.35, -34.83, -0.6214, -865.6, -631}, {0, 0, 0, 0, -75, 0}, {0, 0, 0, 0, 0, -100}}, {{0, 0}, {0, 0}, {0, 0}, {0, 0}, {75, 0}, {0, 100}}, {{1, 0, 0, 0, 2, 0}, {0, 1, 0, 0, 0, 0}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: k = LQOutputRegulatorGains[aircraftM, {(⁠| | | | ------ | - | | 0.0001 | 0 | | 0 | 1 |⁠), (⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠)}]

绘制闭环输出响应的图线：

Wolfram Language code: aircraftMCL = SystemsModelStateFeedbackConnect[aircraftM, k];
Wolfram Language code: or = OutputResponse[{aircraftMCL, {0, 0.1, 0, 0, 0, 0}}, {0, 0}, {t, 0, 6}];
Wolfram Language code: Plot[or, {t, 0, 6}, PlotRange -> All, PlotLegends -> {Subscript[y, 1], Subscript[y, 2]}]

绘制控制信号的图线：

Wolfram Language code: fb = -k.StateResponse[{aircraftMCL, {0, 0.1, 0, 0, 0, 0}}, {0, 0}, {t, 6}];
Wolfram Language code: Plot[fb, {t, 0, 6}, PlotRange -> All, PlotLegends -> {Subscript[u, 1], Subscript[u, 2]}]

将双回路电路按照描述器系统建模：

Wolfram Language code: circuit = StateSpaceModel[{{{0, 0, 0, 1}, {0, 0, 1, 0}, {-1, 1, 0, 0}, {1, 0, 10, 10}}, {{0}, {0}, {0}, {-1}}, {{0, 0.1, 0, 0}}, {{0}}, {{0.1, 0, 0, 0}, {0, 0.2, 0, 0}, {0, 0, -0.01, 0}, {0, 0, 0, 0}}}, Automatic, SamplingPeriod -> None, SystemsModelLabels -> None];

在一些频率上，电路有较大的幅值响应：

Wolfram Language code: openloopresponse = OutputResponse[circuit, Sin[6 2 Pi t], {t, 0, 1}]; Plot[openloopresponse, {t, 0, 1}, PlotRange -> All]

求单位代价矩阵的最优闭环系统：

Wolfram Language code: k = LQOutputRegulatorGains[circuit, {{{1}}, {{1}}}]; clssm = SystemsModelStateFeedbackConnect[circuit, k]

闭环响应衰减：

Wolfram Language code: closedloopresponse = OutputResponse[clssm, Sin[6 2 Pi t], {t, 0, 1}]; Plot[closedloopresponse, {t, 0, 1}, PlotRange -> All]

属性和关系  (3)

等价的输出调节器增益可以使用 LQRegulatorGains 计算:

Wolfram Language code: {a, b, c, d} = {(⁠| | | | | -- | -- | -- | | -2 | 0 | 1 | | 0 | -1 | 0 | | -3 | -4 | -2 |⁠), (⁠| | | | - | - | | 0 | 1 | | 0 | 0 | | 1 | 0 |⁠), (⁠| | | | | - | - | - | | 1 | 0 | 0 | | 0 | 1 | 0 |⁠), (⁠| | | | - | - | | 1 | 0 | | 0 | 2 |⁠)};
Wolfram Language code: {q, r, p} = {(⁠| | | | --- | --- | | 100 | 0. | | 0 | 0.1 |⁠), (⁠| | | | -- | - | | 10 | 0 | | 0 | 1 |⁠), (⁠| | | | - | - | | 1 | 0 | | 0 | 1 |⁠)};
Wolfram Language code: ssm = StateSpaceModel[{a, b, c, d}];
Wolfram Language code: LQRegulatorGains[ssm, {c.q.c, r + d.q.d + d.p + p.d, c.q.d + c.p}]

LQOutputRegulatorGains 给出相同的结果：

Wolfram Language code: LQOutputRegulatorGains[ssm, {q, r, p}] - %

通过求解内置 Riccati 方程，计算 LQ 输出调节器增益：

Wolfram Language code: {a, b, c, d} = {(⁠| | | | | | | - | -------- | ------- | - | ------- | | 0 | -0.01156 | -0.1711 | 0 | 0 | | 0 | -0.1419 | 0.1711 | 0 | 0 | | 0 | -0.00875 | -1.102 | 0 | 0 | | 0 | -0.00128 | -0.1489 | 0 | 0.00013 | | 0 | 0.0605 | 0.1489 | 0 | -0.0591 |⁠), (⁠| | | | | ----- | ------- | ------- | | 0 | -0.143 | 0 | | 0 | 0 | 0 | | 0.392 | 0 | 0 | | 0 | 0.108 | -0.0592 | | 0 | -0.0486 | 0 |), (⁠| | | | | | | - | - | - | - | - | | 1 | 0 | 0 | 0 | 0 | | 0 | 0 | 0 | 1 | 0 | | 0 | 0 | 0 | 0 | 1 |⁠), (⁠| | | | | - | - | - | | 0 | 1 | 0 | | 1 | 0 | 0 | | 0 | 0 | 1 |⁠)};
Wolfram Language code: {q, r, p} = {(⁠| | | | | ---- | --- | -- | | 1000 | 0 | 0 | | 0 | 100 | 0 | | 0 | 0 | 10 |⁠), (⁠| | | | | - | - | -- | | 1 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 10 |⁠), (⁠| | | | | --- | - | - | | 100 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 1 |⁠)};
Wolfram Language code: With[{q = c.q.c, r = r + d.q.d + d.p + p.d, p = c.q.d + c.p}, Inverse[r].(b.RiccatiSolve[{a, b}, {q, r, p}] + p)]

LQOutputRegulatorGains 给出相同的结果：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{a, b, c, d}], {q, r, p}] - %//Chop

利用 DiscreteRiccatiSolve 计算离散时间系统的增益：

Wolfram Language code: {a, b, c, d} = {(⁠| | | | | | | - | -------- | ------- | - | ------- | | 1 | -0.01866 | -0.134 | 0 | 0 | | 0 | 0.7516 | 0.1144 | 0 | 0 | | 0 | -0.0059 | 0.1097 | 0 | 0 | | 0 | -0.0009 | -0.1203 | 1 | 0.00025 | | 0 | 0.0978 | 0.1206 | 0 | 0.8885 |⁠), (⁠| | | | | ------- | ------- | ------- | | -0.0732 | -0.286 | 0 | | 0.0652 | 0 | 0 | | 0.3162 | 0 | 0 | | -0.0632 | 0.216 | -0.1184 | | 0.0634 | -0.0917 | 0 |⁠), (⁠| | | | | | | - | - | - | - | - | | 1 | 0 | 0 | 0 | 0 | | 0 | 0 | 0 | 1 | 0 | | 0 | 0 | 0 | 0 | 1 |⁠), (⁠| | | | | - | - | - | | 0 | 1 | 0 | | 1 | 0 | 0 | | 0 | 0 | 1 |⁠)};
Wolfram Language code: {q, r, p} = {(⁠| | | | | ---- | --- | -- | | 1000 | 0 | 0 | | 0 | 100 | 0 | | 0 | 0 | 10 |⁠), (⁠| | | | | - | - | -- | | 1 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 10 |⁠), (⁠| | | | | --- | - | - | | 100 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 1 |⁠)};
Wolfram Language code: With[{q = c.q.c, r = r + d.q.d + d.p + p.d, p = c.q.d + c.p}, With[{x = DiscreteRiccatiSolve[{a, b}, {q, r, p}]}, Inverse[b.x.b + r].(b.x.a + p)]]

LQOutputRegulatorGains 给出相同的结果：

Wolfram Language code: LQOutputRegulatorGains[StateSpaceModel[{a, b, c, d}, SamplingPeriod -> τ], {q, r, p}] - %//Chop
