FloorThermal model of the floor |
 |

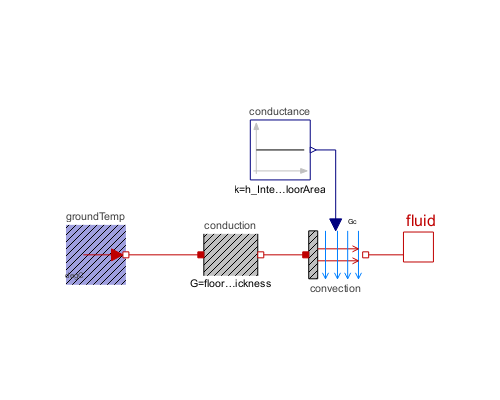

Diagram
Wolfram Language
In[1]:=
SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Floor"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (5)
| floorArea |
Value: 16 Type: Real (m²) Description: Area of floor |
|---|---|
| floorConductivity |
Value: 1.08 Type: Real (W/(m⋅K)) Description: Thermal conductivity of the floor |
| h_Internal |
Value: 10 Type: Real (W/(m²⋅K)) Description: Heat transfer coefficient |
| floorThickness |
Value: 0.05 Type: Real (m) Description: Thickness of the floor |
| GroundTemp |
Value: 5 Type: Real (°C) Description: Temperature of the ground beneath the floor |
Connectors (1)
 |
fluid |
Type: HeatPort_b Description: Thermal port for 1-dim. heat transfer (unfilled rectangular icon) |
|---|
Components (4)
 |
groundTemp |
Type: FixedTemperature Description: Fixed temperature boundary condition in degree Celsius |
|---|---|---|
 |
conduction |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
 |
convection |
Type: Convection Description: Lumped thermal element for heat convection (Q_flow = Gc*dT) |
 |
conductance |
Type: Constant Description: Generate constant signal of type Real |
Used in Components (1)
 |
DocumentationExamples.Simulation.RoomHeating.Components.Rooms Thermal room model |
