RoomThermal room model |
 |

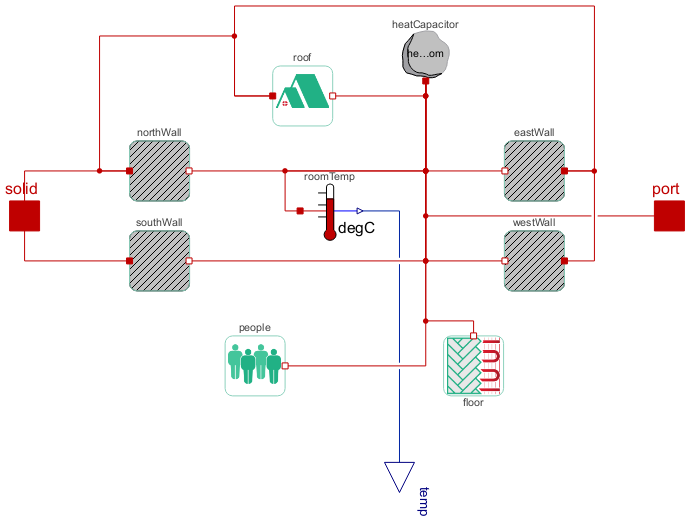

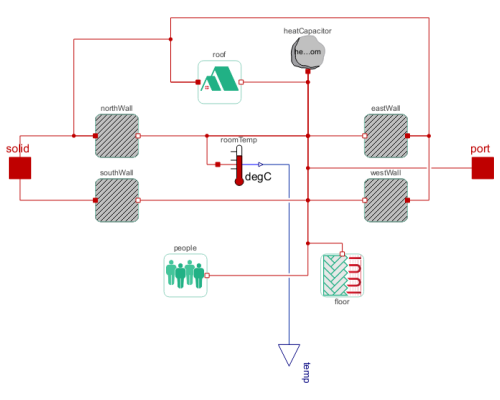

Diagram
Wolfram Language
In[1]:=
SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Rooms.Room"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (7)
| radiationNorth |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the north direction |
|---|---|
| radiationSouth |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the south direction |
| radiationEast |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the east direction |
| radiationWest |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the west direction |
| groundTemp |
Value: 5 Type: Temperature_degC (°C) Description: Temperature of the ground beneath the floor (floor.GroundTemp) |
| heatCapacityRoom |
Value: 400000 Type: HeatCapacity (J/K) Description: Energy required to raise the temperature of the room by 1 K |
| G |
Value: 0.8 Type: Real Description: Optical coefficient of overall transmittance of the window |
Connectors (3)
 |
solid |
Type: HeatPort_a Description: Thermal port for 1-dim. heat transfer (filled rectangular icon) |
|---|---|---|
 |
temp |
Type: RealOutput Description: 'output Real' as connector |
|
port |
Type: HeatPort_a Description: Thermal port for 1-dim. heat transfer (filled rectangular icon) |
Components (9)
 |
northWall |
Type: SideWall Description: Wall with window component |
|---|---|---|
|
southWall |
Type: SideWall Description: Wall with window component |
|
westWall |
Type: SideWall Description: Wall with window component |
|
eastWall |
Type: SideWall Description: Wall with window component |
 |
roof |
Type: Roof Description: Thermal model of the roof |
 |
floor |
Type: Floor Description: Thermal model of the floor |
 |
people |
Type: People Description: Thermal model of people |
 |
heatCapacitor |
Type: HeatCapacitor Description: Lumped thermal element storing heat |
 |
roomTemp |
Type: TemperatureSensor Description: Absolute temperature sensor in degCelsius |
Used in Components (1)
 |
DocumentationExamples.Simulation.RoomHeating.Components.Rooms Thermal room model with water radiator |
