RoomWithWaterRadiatorThermal room model with water radiator |
 |

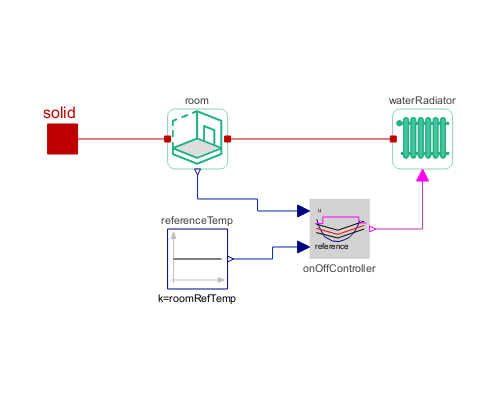

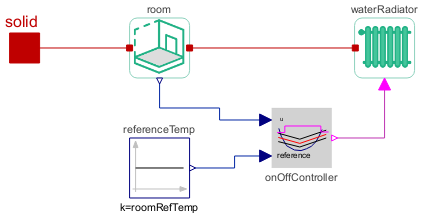

Diagram
Wolfram Language
In[1]:=

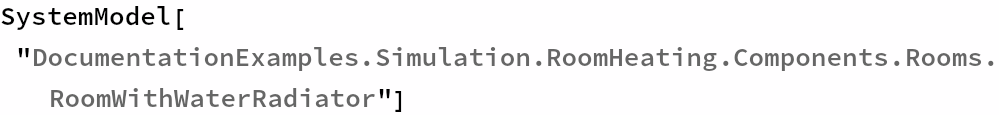

SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Rooms.RoomWithWaterRadiator"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (8)
| radiationNorth |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the north direction |
|---|---|
| radiationSouth |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the south direction |
| radiationEast |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the east direction |
| radiationWest |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the west direction |
| roomRefTemp |
Value: 20 Type: Real (°C) Description: Reference temperature of the room set by user |
| heatSourcePower |
Value: 500 Type: Real (W) Description: Power of the heat source of water radiator |
| groundTemp |
Value: 15 Type: Temperature_degC (°C) Description: Temperature of the ground beneath the floor (floor.GroundTemp) (room.GroundTemp) |
| heatCapacityRoom |
Value: 400000 Type: HeatCapacity (J/K) Description: Energy required to raise the temperature of the room by 1 K (room.heatCapacityRoom) |
Connectors (1)
 |
solid |
Type: HeatPort_a Description: Thermal port for 1-dim. heat transfer (filled rectangular icon) |
|---|
Components (4)
 |
referenceTemp |
Type: Constant Description: Generate constant signal of type Real |
|---|---|---|
 |
room |
Type: Room Description: Thermal room model |
 |
waterRadiator |
Type: WaterRadiator Description: Thermal model of water radiator |
 |
onOffController |
Type: OnOffController Description: On-off controller |
Used in Examples (1)
 |
DocumentationExamples.Simulation.RoomHeating Room model heated by a water radiator attached to an ouside temperature dataset |
