WaterRadiatorThermal model of water radiator |
 |

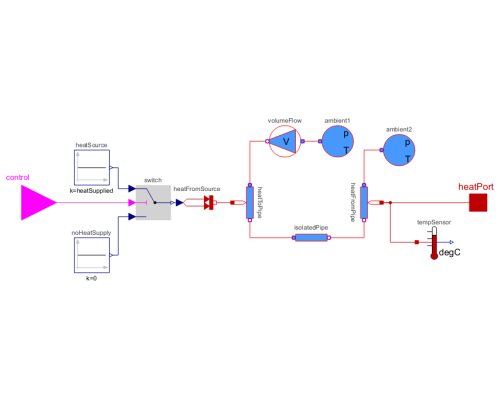

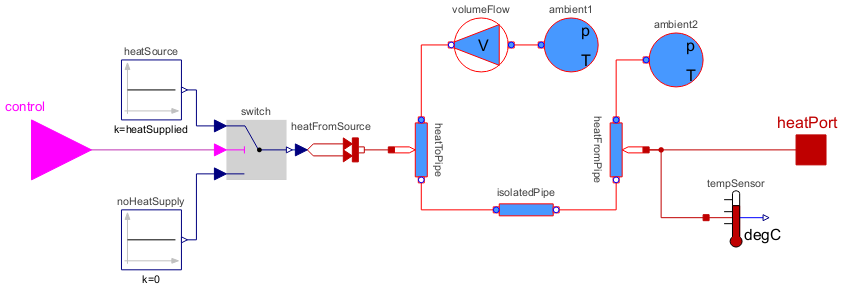

Diagram
Wolfram Language
In[1]:=

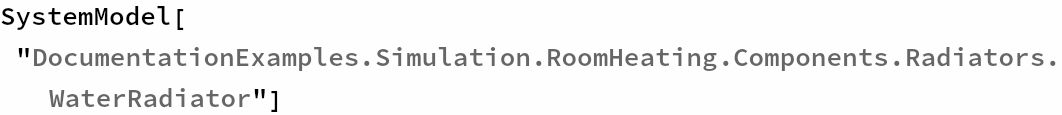

SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Radiators.WaterRadiator"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (4)
| heatSupplied |
Value: 500 Type: Real (W) Description: Heat supplied to the heating medium by the heat source |
|---|---|
| constantAmbientPressure |
Value: 100000 Type: Pressure (Pa) Description: Ambient pressure (ambient1.constantAmbientPressure) |
| constantAmbientTemperature |
Value: 293.15 Type: Temperature (K) Description: Ambient temperature (ambient1.constantAmbientTemperature) |
| constantVolumeFlow |
Value: 0.5 Type: VolumeFlowRate (m³/s) Description: Volume flow rate (volumeFlow1.constantVolumeFlow) |
Connectors (2)
 |
heatPort |
Type: HeatPort_a Description: Thermal port for 1-dim. heat transfer (filled rectangular icon) |
|---|---|---|
 |
control |
Type: BooleanInput Description: 'input Boolean' as connector |
Components (11)
 |
heatToPipe |
Type: Pipe Description: Pipe with optional heat exchange |
|---|---|---|
 |
heatFromSource |
Type: PrescribedHeatFlow Description: Prescribed heat flow boundary condition |
 |
heatSource |
Type: Constant Description: Generate constant signal of type Real |
|
isolatedPipe |
Type: Pipe Description: Pipe with optional heat exchange |
|
heatFromPipe |
Type: Pipe Description: Pipe with optional heat exchange |
 |
ambient1 |
Type: Ambient Description: Ambient with constant properties |
|
ambient2 |
Type: Ambient Description: Ambient with constant properties |
 |
volumeFlow |
Type: VolumeFlow Description: Enforces constant volume flow |
 |
tempSensor |
Type: TemperatureSensor Description: Absolute temperature sensor in degCelsius |
 |
switch |
Type: Switch Description: Switch between two Real signals |
|
noHeatSupply |
Type: Constant Description: Generate constant signal of type Real |
Used in Components (1)
 |
DocumentationExamples.Simulation.RoomHeating.Components.Rooms Thermal room model with water radiator |
