RoomModelRomeRoom model heated by a water radiator attached to an ouside temperature dataset |
 |

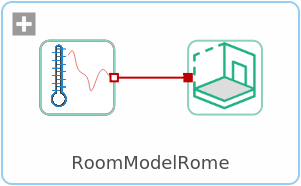

Diagram
Wolfram Language
In[1]:=
SystemModel["DocumentationExamples.Simulation.RoomHeating.RoomModelRome"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (8)
| isSpring |
Value: false Type: Boolean Description: Set the parameter to false to get the winter data (tempRome1.isSummer) |
|---|---|
| radiationNorth |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation entering the room from the north direction (roomWithWaterRadiator1.radiationNorth) |
| radiationSouth |
Value: 163.9 Type: Real (W/m²) Description: Solar radiation entering the room from the south direction (roomWithWaterRadiator1.radiationSouth) |
| radiationEast |
Value: 75 Type: Real (W/m²) Description: Solar radiation entering the room from the east direction (roomWithWaterRadiator1.radiationEast) |
| radiationWest |
Value: 75 Type: Real (W/m²) Description: Solar radiation entering the room from the west direction (roomWithWaterRadiator1.radiationWest) |
| heatSupplied |
Value: 1200 Type: Power (W) Description: Heat supplied to the heating medium by the heat source (roomWithWaterRadiator.waterRadiator.heatSupplied) |
| heatCapacityRoom |
Value: 400000 Type: HeatCapacity (J/K) Description: Energy required to raise the temperature of the room by 1 K (room.heatCapacityRoom) (roomWithWaterRadiator.heatCapacityRoom) |
| roomRefTemp |
Value: 20 Type: Temperature_degC (°C) Description: Reference temperature of the room set by user (roomWithWaterRadiator.roomRefTemp) |
Components (2)
 |
roomWithWaterRadiator |
Type: RoomWithWaterRadiator Description: Thermal room model with water radiator |
|---|---|---|
 |
tempRome |
Type: RomeTemperature Description: Component containing outside temperature of Rome |
