RomeTemperatureComponent containing outside temperature of Rome |
 |

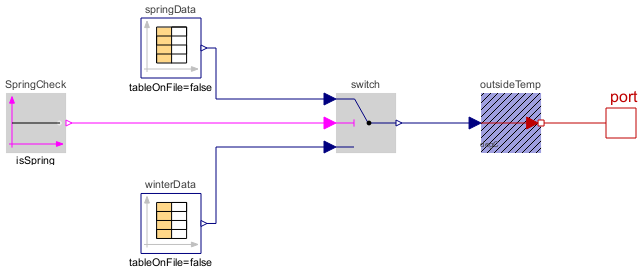

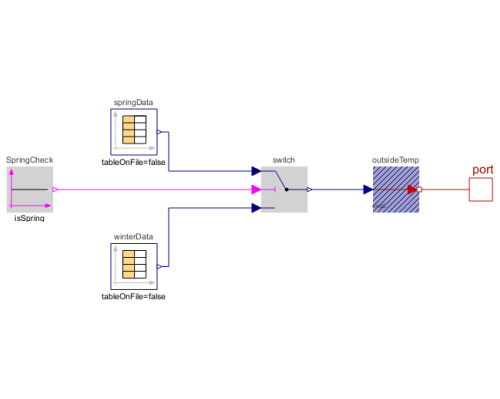

Diagram
Wolfram Language
In[1]:=
SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.OutsideTemperature.RomeTemperature"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (1)
| isSpring |
Value: false Type: Boolean Description: Set the parameter to false to get the winter data |
|---|
Connectors (1)
 |
port |
Type: HeatPort_b Description: Thermal port for 1-dim. heat transfer (unfilled rectangular icon) |
|---|
Components (5)
 |
outsideTemp |
Type: PrescribedTemperature Description: Variable temperature boundary condition in degCelsius |
|---|---|---|
 |
switch |
Type: Switch Description: Switch between two Real signals |
 |
SpringCheck |
Type: BooleanConstant Description: Generate constant signal of type Boolean |
 |
springData |
Type: CombiTimeTable Description: Table look-up with respect to time and various interpolation and extrapolation methods (data from matrix/file) |
|
winterData |
Type: CombiTimeTable Description: Table look-up with respect to time and various interpolation and extrapolation methods (data from matrix/file) |
Used in Examples (1)
 |
DocumentationExamples.Simulation.RoomHeating Room model heated by a water radiator attached to an ouside temperature dataset |
