WindowThermal model of window with heat transfer by solar radiation, ventilation and conduction |
 |

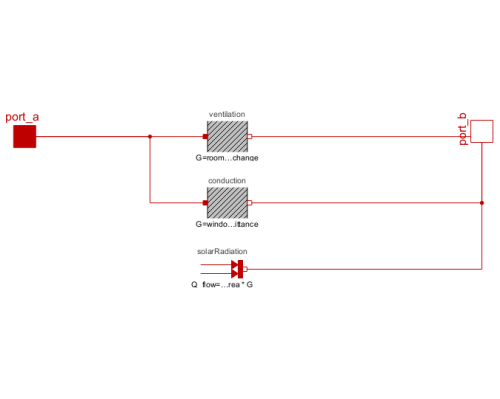

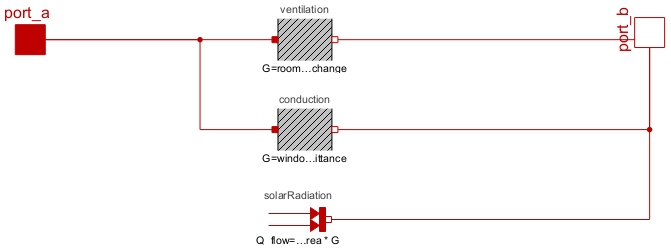

Diagram
Wolfram Language
In[1]:=
SystemModel["DocumentationExamples.Simulation.RoomHeating.Components.Walls.Window"]
Out[1]:=
Information
Wolfram Language Documentation Examples
This library contains models used in the documentation of system modeling functionality in Wolfram Language. These examples and this library can be explored in the Wolfram Language documentation.
Parameters (11)
| perimeter |
Value: 7.2 Type: Real (m) Description: perimeter of the window |
|---|---|
| linearTransmittance |
Value: 0.06 Type: Real (W/(m⋅K)) Description: Transmittance along the window frame |
| windowArea |
Value: 3.24 Type: Real (m²) Description: Total area of window including frame |
| glassSurfaceIndex |
Value: 0.8 Type: Real Description: Ratio of glass suface to the total window area |
| frameSurfaceIndex |
Value: 0.2 Type: Real Description: Ratio of frame to the total window area |
| glassTransmittivity |
Value: 1.6 Type: Real (W/(m²⋅K)) Description: Thermal transmittivity across the glass |
| frameTransmittivity |
Value: 1.8 Type: Real (W/(m²⋅K)) Description: Thermal transmittivity across the frame |
| solarIrradiation |
Value: 36.1 Type: Real (W/m²) Description: Solar radiation passing through the window |
| roomVolume |
Value: 5 Type: Real (m³) Description: Volume of the room |
| timeForAirExchange |
Value: 3600 Type: Real (s) Description: Time to remove air whose quantity is equal to the room's volume |
| G |
Value: 0.8 Type: Real Description: Optical coefficient of overall transmittance of the window |
Connectors (2)
 |
port_b |
Type: HeatPort_b Description: Thermal port for 1-dim. heat transfer (unfilled rectangular icon) |
|---|---|---|
 |
port_a |
Type: HeatPort_a Description: Thermal port for 1-dim. heat transfer (filled rectangular icon) |
Components (3)
 |
conduction |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
|---|---|---|
 |
solarRadiation |
Type: FixedHeatFlow Description: Fixed heat flow boundary condition |
|
ventilation |
Type: ThermalConductor Description: Lumped thermal element transporting heat without storing it |
Used in Components (1)
 |
DocumentationExamples.Simulation.RoomHeating.Components.Walls Wall with window component |
