Wolfram Language

In[1]:=

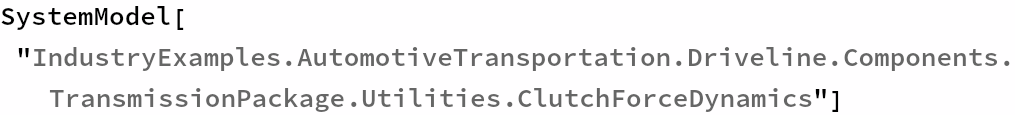

SystemModel["IndustryExamples.AutomotiveTransportation.Driveline.Components.TransmissionPackage.Utilities.ClutchForceDynamics"]

Out[1]:=

Parameters (1)

T	Type: Time (s) Description: Time Constant

Connectors (3)

	u	Type: RealInput Description: Connector of Real input signal
	y	Type: RealOutput Description: Connector of Real output signal
	engage	Type: BooleanInput Description: 'input Boolean' as connector

Type: RealInput

Description: Connector of Real input signal

Type: RealOutput

Description: Connector of Real output signal

engage

Type: BooleanInput

Description: 'input Boolean' as connector

Used in Components (1)

TCU

IndustryExamples.AutomotiveTransportation.Driveline.Components.TransmissionPackage.Utilities

Transmission control unit that controls the gears and transmission clutch based on engine speed (rpm), vehicle speed (km/h), and desired driving direction (−1 = reverse, 0 = neutral, 1 = forward).
