CellPhoneScenario

Model with a battery connected to a cellphone

Diagram

Wolfram Language

In[1]:=
SystemModel["IndustryExamples.Energy.Battery.CellPhoneScenario"]
Out[1]:=

Information

In this example, one battery cell is connected to a cell phone. To simulate this scenario, click the Simulate button: simulate

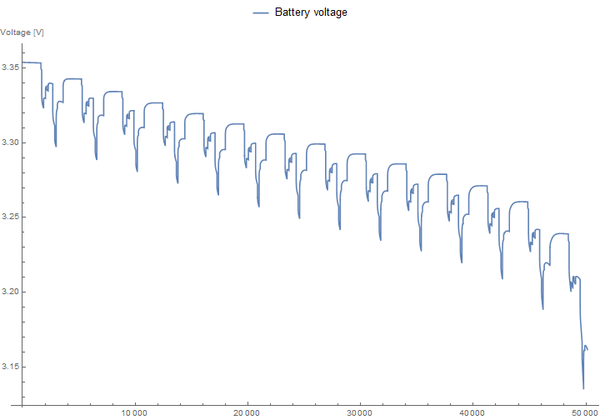

Next, a preferred plot will automatically be displayed. This plot should look like this:

The plots show the voltage output of the battery cell applied to the load of the cell phone.

This model is one of five scenarios using the battery cell. For the other scenarios, see the Battery package.

Components (4)

cellPhone

Type: CellPhone

Description: Model of a charging cell phone.

batteryCell

Type: BatteryCell

Description: The main battery cell model

fixedTemperature

Type: FixedTemperature

Description: Fixed temperature boundary condition in degree Celsius

ground

Type: Ground

Description: Ground node
