DemonstrateContinuousSignalExtremaTest the ContinuousSignalExtrema block |
 |

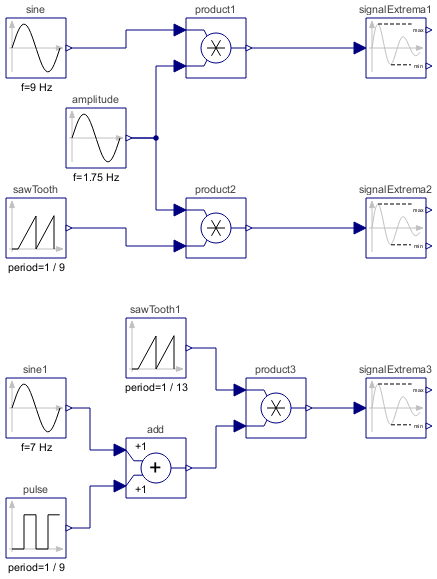

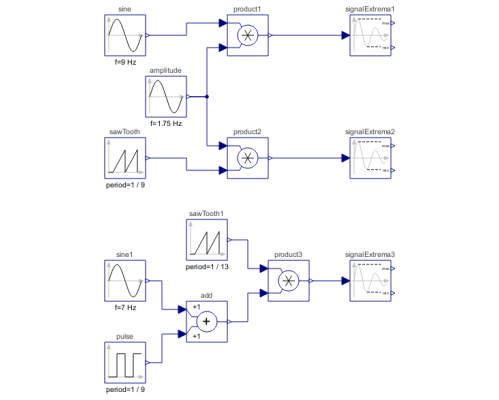

Diagram
Wolfram Language
In[1]:=
SystemModel["Modelica.Blocks.Examples.DemonstrateContinuousSignalExtrema"]
Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
The amplitudes of both a differentiable sinusoidal signal (frequency 9 Hz) and a non-differentiable sawtooth signal (period 1/9 s) are modulated sinusoidally (frequency 0.75 Hz).
Note that the ContinuousSignalExtremaBlock detects extrema of both signals without sampling.
Components (13)
 |
sine |
Type: Sine Description: Generate sine signal |
|---|---|---|
 |
sawTooth |
Type: SawTooth Description: Generate saw tooth signal |
|
amplitude |
Type: Sine Description: Generate sine signal |
 |
product1 |
Type: Product Description: Output product of the two inputs |
|
product2 |
Type: Product Description: Output product of the two inputs |
 |
signalExtrema1 |
Type: ContinuousSignalExtrema Description: Store the minimum and maximum values of the input signal |
|
signalExtrema2 |
Type: ContinuousSignalExtrema Description: Store the minimum and maximum values of the input signal |
|
sine1 |
Type: Sine Description: Generate sine signal |
 |
pulse |
Type: Pulse Description: Generate pulse signal of type Real |
 |
add |
Type: Add Description: Output the sum of the two inputs |
|
product3 |
Type: Product Description: Output product of the two inputs |
|
sawTooth1 |
Type: SawTooth Description: Generate saw tooth signal |
|
signalExtrema3 |
Type: ContinuousSignalExtrema Description: Store the minimum and maximum values of the input signal |
