ChopperBuckBoostBidirectional chopper |
 |

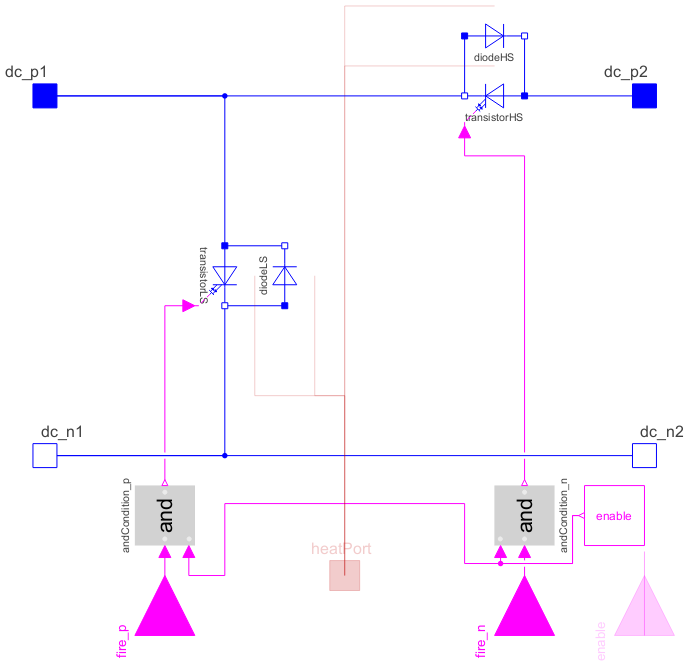

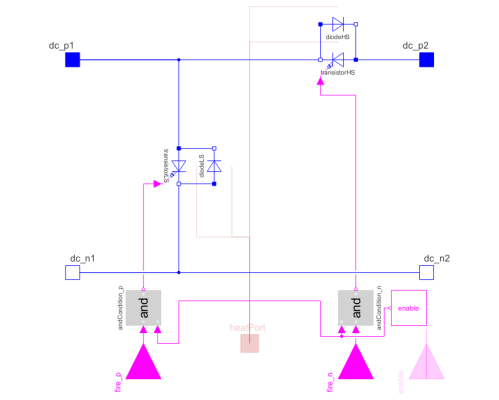

Diagram
Wolfram Language
In[1]:=
SystemModel["Modelica.Electrical.PowerConverters.DCDC.ChopperBuckBoost"]
Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
This is a bidirectional buck / boost - converter with 2 transistors and 2 freewheeling diodes.
Parameters (11)
| useHeatPort |
Value: false Type: Boolean Description: = true, if heatPort is enabled |
|---|---|
| T |
Value: 293.15 Type: Temperature (K) Description: Fixed device temperature if useHeatPort = false |
| RonTransistor |
Value: 1e-05 Type: Resistance (Ω) Description: Transistor closed resistance |
| GoffTransistor |
Value: 1e-05 Type: Conductance (S) Description: Transistor opened conductance |
| VkneeTransistor |
Value: 0 Type: Voltage (V) Description: Transistor threshold voltage |
| RonDiode |
Value: 1e-05 Type: Resistance (Ω) Description: Diode closed resistance |
| GoffDiode |
Value: 1e-05 Type: Conductance (S) Description: Diode opened conductance |
| VkneeDiode |
Value: 0 Type: Voltage (V) Description: Diode threshold voltage |
| useConstantEnable |
Value: true Type: Boolean Description: Disable boolean input and use constantEnable, if true |
| constantEnable |
Value: true Type: Boolean Description: Constant enabling of firing signals |
| m |
Value: 1 Type: Integer Description: Number of phases |
Connectors (8)
 |
dc_p1 |
Type: PositivePin Description: Positive DC input |
|---|---|---|
 |
dc_n1 |
Type: NegativePin Description: Negative DC input |
|
dc_p2 |
Type: PositivePin Description: Positive DC output |
|
dc_n2 |
Type: NegativePin Description: Negative DC output |
 |
heatPort |
Type: HeatPort_a Description: Conditional heat port |
 |
enable |
Type: BooleanInput Description: Enables fire and notFire |
|
fire_p |
Type: BooleanInput Description: Firing signal of positive potential transistor |
|
fire_n |
Type: BooleanInput Description: Firing signal of negative potential transistor |
Components (7)
 |
enableLogic |
Type: EnableLogic Description: Enabling logic |
|---|---|---|
 |
andCondition_p |
Type: And Description: And condition for positive firing signal |
|
andCondition_n |
Type: And Description: And condition for negative firing signal |
 |
transistorLS |
Type: IdealGTOThyristor Description: Switching transistor low side |
 |
diodeLS |
Type: IdealDiode Description: Free wheeling diode low side |
|
transistorHS |
Type: IdealGTOThyristor Description: Switching transistor high side |
|
diodeHS |
Type: IdealDiode Description: Free wheeling diode high side |
Used in Components (1)
 |
Modelica.Electrical.PowerConverters.Examples.DCDC.ExampleTemplates Buck/boost converter example template |
