ChopperBuckBoostBuck/boost converter example template |
 |

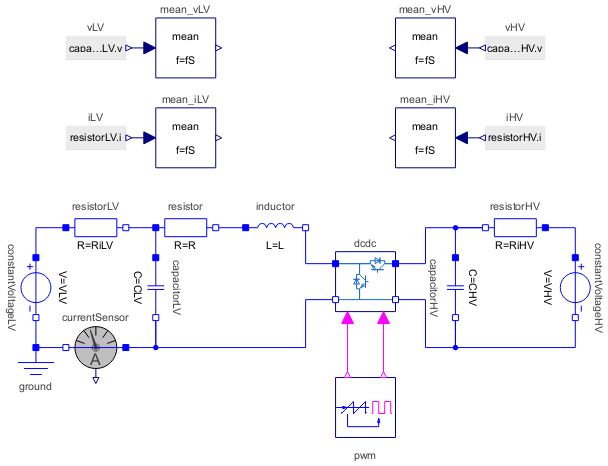

Diagram
Wolfram Language
In[1]:=

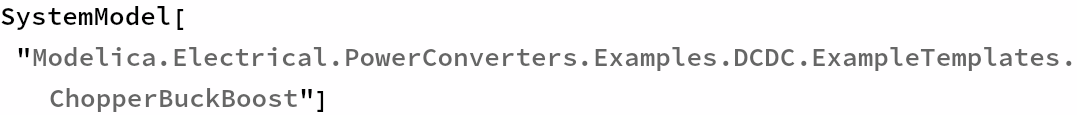

SystemModel["Modelica.Electrical.PowerConverters.Examples.DCDC.ExampleTemplates.ChopperBuckBoost"]

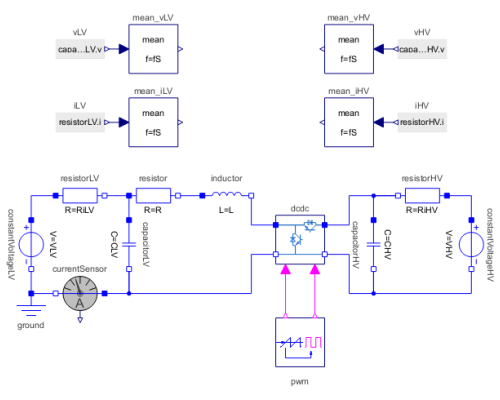

Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
Buck/boost chopper example template including both voltage sources; control not included.
Parameters (10)
| VLV |
Value: 12 Type: Voltage (V) Description: LV voltage |
|---|---|
| RiLV |
Value: 0.01 Type: Resistance (Ω) Description: LV inner resistance |
| VHV |
Value: 24 Type: Voltage (V) Description: HV voltage |
| RiHV |
Value: 0.01 Type: Resistance (Ω) Description: HV inner resistance |
| CLV |
Value: 500e-6 Type: Capacitance (F) Description: Low voltage capacitance |
| CHV |
Value: 250e-6 Type: Capacitance (F) Description: High voltage capacitance |
| L |
Value: 10e-6 Type: Inductance (H) Description: Inductance |
| R |
Value: 1e-3 Type: Resistance (Ω) Description: Resistance of inductor |
| fS |
Value: 40e3 Type: Frequency (Hz) Description: Switching frequency |
| idleDutyCycle |
Value: 1 - VLV / VHV Type: Real Description: Duty cycle for idle operation |
Components (20)
 |
dcdc |
Type: ChopperBuckBoost Description: Bidirectional chopper |
|---|---|---|
 |
constantVoltageLV |
Type: ConstantVoltage Description: Source for constant voltage |
 |
resistorLV |
Type: Resistor Description: Ideal linear electrical resistor |
 |
ground |
Type: Ground Description: Ground node |
 |
capacitorLV |
Type: Capacitor Description: Ideal linear electrical capacitor |
|
resistor |
Type: Resistor Description: Ideal linear electrical resistor |
 |
inductor |
Type: Inductor Description: Ideal linear electrical inductor |
|
capacitorHV |
Type: Capacitor Description: Ideal linear electrical capacitor |
|
constantVoltageHV |
Type: ConstantVoltage Description: Source for constant voltage |
|
resistorHV |
Type: Resistor Description: Ideal linear electrical resistor |
 |
vLV |
Type: RealExpression Description: Set output signal to a time varying Real expression |
|
iLV |
Type: RealExpression Description: Set output signal to a time varying Real expression |
|
vHV |
Type: RealExpression Description: Set output signal to a time varying Real expression |
|
iHV |
Type: RealExpression Description: Set output signal to a time varying Real expression |
 |
mean_vLV |
Type: Mean Description: Calculate mean over period 1/f |
|
mean_iLV |
Type: Mean Description: Calculate mean over period 1/f |
|
mean_vHV |
Type: Mean Description: Calculate mean over period 1/f |
|
mean_iHV |
Type: Mean Description: Calculate mean over period 1/f |
 |
pwm |
Type: SignalPWM Description: Generates a pulse width modulated (PWM) boolean fire signal |
 |
currentSensor |
Type: CurrentSensor Description: Sensor to measure the current in a branch |
Extended by (1)
 |
Modelica.Electrical.PowerConverters.Examples.DCDC.ChopperBuckBoost |
