SpacePhasorLimiterLimit space phasor |
 |
Wolfram Language
In[1]:=

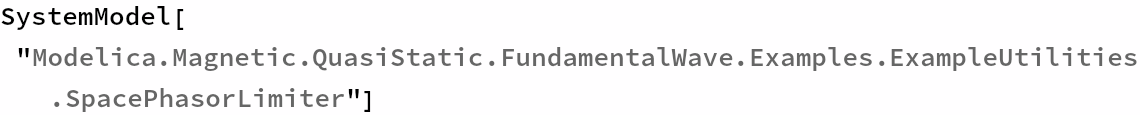

SystemModel["Modelica.Magnetic.QuasiStatic.FundamentalWave.Examples.ExampleUtilities.SpacePhasorLimiter"]
Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
Limit the real part u2 of a space phasor if necessary to keep the length lower than yMax keeping u1 unchanged.
If u1 is greater than yMax, this cannot be satisfied even with u2 = 0.
Parameters (1)
| yMax |
Type: Current (A) Description: Maximum output |
|---|
Connectors (3)
 |
u1 |
Type: RealInput Description: Connector of Real input signal 1 |
|---|---|---|
|
u2 |
Type: RealInput Description: Connector of Real input signal 2 |
 |
y |
Type: RealOutput Description: Connector of Real output signal |
Used in Components (1)
 |
Modelica.Magnetic.QuasiStatic.FundamentalWave.Examples.ExampleUtilities Filed weakening for a QS SMPM |
