FieldWeakeningControllerFiled weakening for a QS SMPM |
 |

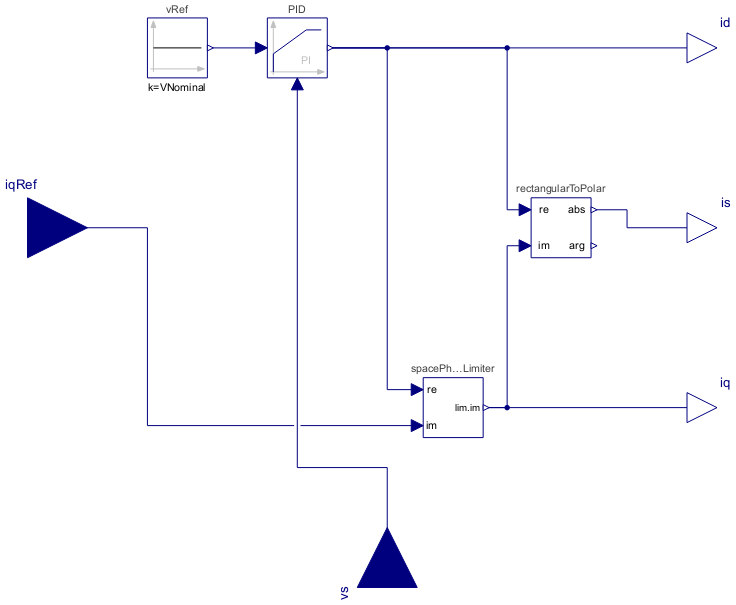

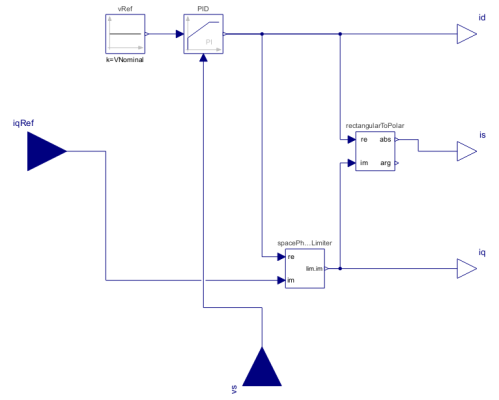

Diagram
Wolfram Language

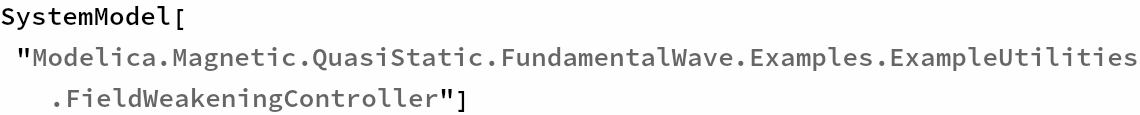

In[1]:=
SystemModel["Modelica.Magnetic.QuasiStatic.FundamentalWave.Examples.ExampleUtilities.FieldWeakeningController"]
Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
Controls id to keep the voltage vs ≤ VNominal, limiting first iq to keep is ≤ IMax if possible.
Parameters (4)
| VNominal |
Type: Voltage (V) Description: Nominal rms voltage per phase |
|---|---|
| IMax |
Type: Current (A) Description: Maximum rms current per phase |
| kp |
Value: 1 Type: Real Description: Proportional gain of field weakening controller |
| Ti |
Value: 1e-6 Type: Time (s) Description: Integral time constant of field weakening controller |
Connectors (5)
 |
iqRef |
Type: RealInput Description: 'input Real' as connector |
|---|---|---|
|
vs |
Type: RealInput Description: Stator voltage magnitude |
 |
is |
Type: RealOutput Description: Stator current magnitude |
|
id |
Type: RealOutput Description: Stator direct axis current |
|
iq |
Type: RealOutput Description: Stator quadrature axis current |
Components (4)
 |
vRef |
Type: Constant Description: Generate constant signal of type Real |
|---|---|---|
 |
PID |
Type: LimPID Description: P, PI, PD, and PID controller with limited output, anti-windup compensation, setpoint weighting and optional feed-forward |
 |
rectangularToPolar |
Type: RectangularToPolar Description: Convert rectangular coordinates to polar coordinates |
 |
spacePhasorLimiter |
Type: SpacePhasorLimiter Description: Limit space phasor |
Used in Examples (1)
 |
Modelica.Magnetic.QuasiStatic.FundamentalWave.Examples.BasicMachines.SynchronousMachines Test example: Investigate field weakening of a PermanentMagnetSynchronousMachine |
