CompareBrakingForceCompare different braking forces |
 |

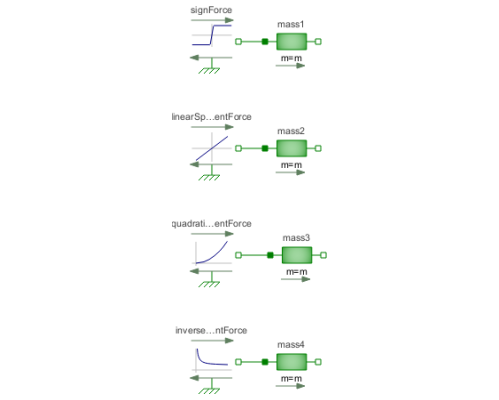

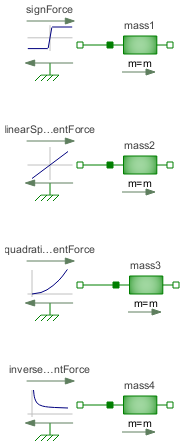

Diagram
Wolfram Language
In[1]:=
SystemModel["Modelica.Mechanics.Translational.Examples.CompareBrakingForce"]
Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
Compare the effect of different braking forces on mass' velocity
(massN.v, N = {1, 2, 3, 4}):
- Constant force
- Linear speed dependent force
- Quadratic speed dependent force
- Inverse speed dependent force
Parameters (5)
| m |
Value: 1 Type: Mass (kg) Description: Mass |
|---|---|
| v_start |
Value: 100 Type: Velocity (m/s) Description: Initial speed of mass |
| f_nominal |
Value: 100 Type: Force (N) Description: Nominal force |
| v_nominal |
Value: abs(v_start) Type: Velocity (m/s) Description: Nominal speed |
| v0 |
Value: 1 Type: Velocity (m/s) Description: Speed limit for regularization |
Components (8)
 |
mass1 |
Type: Mass Description: Sliding mass with inertia |
|---|---|---|
 |
signForce |
Type: SignForce Description: Constant force changing sign with speed |
|
mass2 |
Type: Mass Description: Sliding mass with inertia |
 |
linearSpeedDependentForce |
Type: LinearSpeedDependentForce Description: Linear dependency of force versus speed |
|
mass3 |
Type: Mass Description: Sliding mass with inertia |
 |
quadraticSpeedDependentForce |
Type: QuadraticSpeedDependentForce Description: Quadratic dependency of force versus speed |
|
mass4 |
Type: Mass Description: Sliding mass with inertia |
 |
inverseSpeedDependentForce |
Type: InverseSpeedDependentForce Description: Force reciprocal dependent on speed |
