WriteAdds writing of a Boolean scalar node to a WriteNodeList |
 |

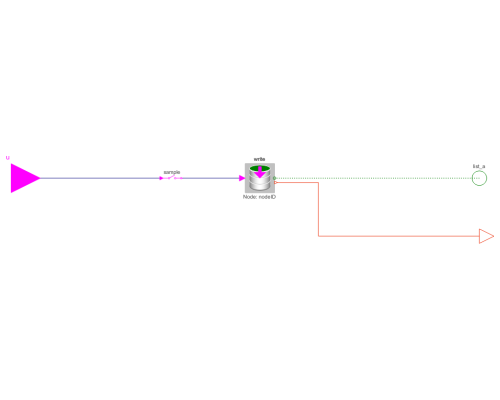

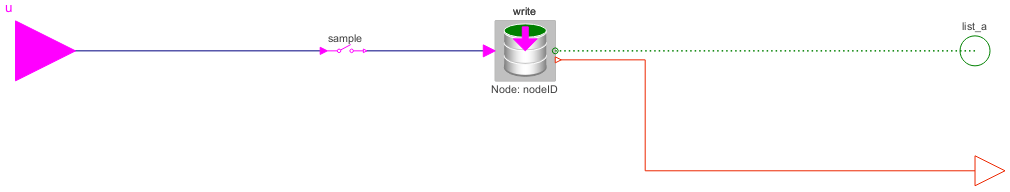

Diagram
Wolfram Language
In[1]:=
SystemModel["OPCUA.Components.Unclocked.BooleanSignals.Write"]
Out[1]:=
Information
This component writes scalar data to the specified node as part of the request defined by the WriteNodeList it's connected to.
See OPCUA.Interfaces.Node for how to specify the node identity and handle errors.
Parameters (4)
| nodeIDType |
Value: Type: UANodeIdType Description: The node identifier type |
|---|---|
| nodeID |
Value: Type: String Description: The node identifier |
| nodeNamespace |
Value: Type: Integer Description: The node namespace |
| errorHandling |
Value: Type: ErrorHandling Description: How to handle node errors (request errors are handled by the connected Read/WriteNodeList component) |
Connectors (3)
 |
severity |
Type: SeverityOutput Description: Node level status severity |
|---|---|---|
 |
list_a |
Type: List_a Description: Connector for propagating node registrations to a NodeList |
 |
u |
Type: BooleanInput Description: Input signal to be sampled |
Components (3)
| nodeObj |
Type: NodeObject |
|
|---|---|---|
 |
write |
Type: Write Description: Adds writing of a Boolean scalar node to a WriteNodeList |
 |
sample |
Type: Sample Description: Sample the continuous-time, Boolean input signal and provide it as clocked output signal (clock is inferred) |
Used in Examples (1)
 |
OPCUA.Examples Demonstrates how to write to and read from nodes on an OPC UA server |
Used in Components (1)
 |
OPCUA.Examples.Utilities Block that starts a status simulation on the ExampleServer |
