WOLFRAM SYSTEM MODELER
Write2DAdds writing of an Integer 2D-array node to a WriteNodeList |
 |

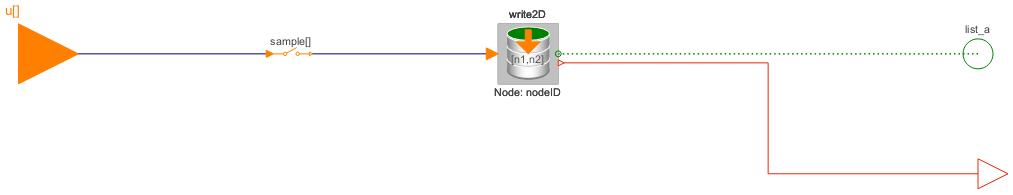

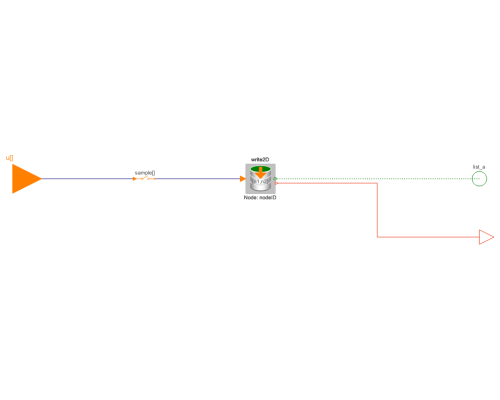

Diagram
Wolfram Language
In[1]:=
SystemModel["OPCUA.Components.Unclocked.IntegerSignals.Write2D"]
Out[1]:=
Information
This component writes 2D-array data of size {n1, n2} to the specified node as part of the request defined by the WriteNodeList it is connected to.
Data is written as the type specified by uaIntegerType, and the node must hold data of that type.
See OPCUA.Interfaces.Node for how to specify the node identity and handle errors.
Parameters (7)
| nodeIDType |
Value: Type: UANodeIdType Description: The node identifier type |
|---|---|
| nodeID |
Value: Type: String Description: The node identifier |
| nodeNamespace |
Value: Type: Integer Description: The node namespace |
| errorHandling |
Value: Type: ErrorHandling Description: How to handle node errors (request errors are handled by the connected Read/WriteNodeList component) |
| n1 |
Value: Type: Integer Description: Size of first array dimension |
| n2 |
Value: Type: Integer Description: Size of second array dimension |
| uaIntegerType |
Value: Type: UAInteger Description: OPC UA type used for writing |
Connectors (3)
 |
severity |
Type: SeverityOutput Description: Node level status severity |
|---|---|---|
 |
list_a |
Type: List_a Description: Connector for propagating node registrations to a NodeList |
 |
u |
Type: IntegerInput[n1,n2] Description: Input signal to be sampled |
Components (3)
| nodeObj |
Type: NodeObject |
|
|---|---|---|
 |
write2D |
Type: Write2D Description: Adds writing of an Integer 2D-array node to a WriteNodeList |
 |
sample |
Type: Sample[n1,n2] Description: Sample the continuous-time, Integer input signal and provide it as clocked output signal (clock is inferred) |
