WriteAdds writing of a Real scalar node to a WriteNodeList |
 |

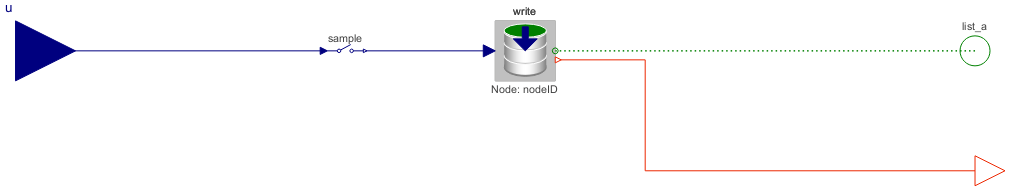

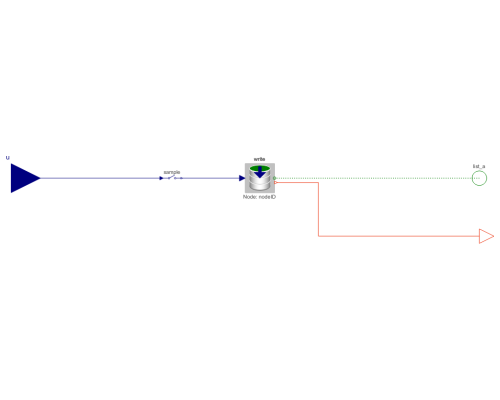

Diagram
Wolfram Language
In[1]:=
SystemModel["OPCUA.Components.Unclocked.RealSignals.Write"]
Out[1]:=
Information
This component writes scalar data to the specified node as part of the request defined by the WriteNodeList it is connected to.
Data is written as the type specified by uaRealType, and the node must hold data of that type.
See OPCUA.Interfaces.Node for how to specify the node identity and handle errors.
Parameters (5)
| nodeIDType |
Value: Type: UANodeIdType Description: The node identifier type |
|---|---|
| nodeID |
Value: Type: String Description: The node identifier |
| nodeNamespace |
Value: Type: Integer Description: The node namespace |
| errorHandling |
Value: Type: ErrorHandling Description: How to handle node errors (request errors are handled by the connected Read/WriteNodeList component) |
| uaRealType |
Value: Type: UAReal Description: OPC UA type used for writing |
Connectors (3)
 |
severity |
Type: SeverityOutput Description: Node level status severity |
|---|---|---|
 |
list_a |
Type: List_a Description: Connector for propagating node registrations to a NodeList |
 |
u |
Type: RealInput Description: Input signal to be sampled |
Components (3)
| nodeObj |
Type: NodeObject |
|
|---|---|---|
 |
write |
Type: Write Description: Adds writing of a Real scalar node to a WriteNodeList |
 |
sample |
Type: Sample Description: Sample the continuous-time, Real input signal and provide it as clocked output signal (clock is inferred) |
Used in Examples (6)
 |
OPCUA.Examples Demonstrates how to write to and read from nodes on an OPC UA server |
 |
OPCUA.Examples Demonstrates the difference between the Clocked and Unclocked components |
 |
OPCUA.Examples Demonstrates how to read node values using different sample rates |
 |
OPCUA.Examples Demonstrates a possible use of multiple OPC UA servers |
 |
OPCUA.Examples A tank system model where height data is written to and read from an OPC UA node on an OPC UA server |
 |
OPCUA.Examples Demonstrates how to sample data from an OPC UA node irregularly |
