CSGRegionTree

CSGRegionTree[reg]

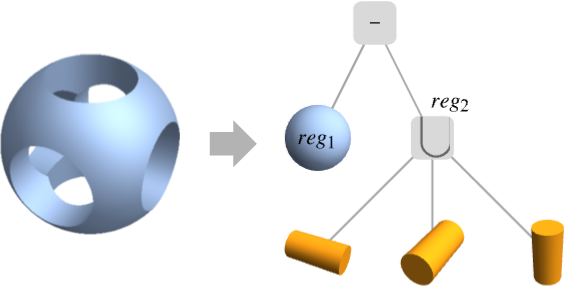

给出表示 CSG 区域 reg 的树表达式.

更多信息和选项

范例

打开所有单元 关闭所有单元

基本范例  (1)

CSG 区域树：

Wolfram Language code: reg = CSGRegion["Union", {Ball[], Cuboid[], Ball[{2, 0, 0}]}];
Wolfram Language code: CSGRegionTree[reg]

范围  (3)

CSGRegionTree 可处理相交运算：

Wolfram Language code: reg = CSGRegion["Intersection", {Ball[], Cuboid[]}];
Wolfram Language code: CSGRegionTree[reg]

合并：

Wolfram Language code: reg = CSGRegion["Union", {Ball[], Cuboid[]}];
Wolfram Language code: CSGRegionTree[reg]

差：

Wolfram Language code: reg = CSGRegion["Difference", {Ball[], Cuboid[]}];
Wolfram Language code: CSGRegionTree[reg]

CSGRegionTree 适用于 one-level CSG 区域：

Wolfram Language code: reg = CSGRegion["Intersection", {Ball[], Cuboid[]}];
Wolfram Language code: CSGRegionTree[reg]

嵌套的 CSG 区域：

Wolfram Language code: reg = CSGRegion["Intersection", {Ball[], CSGRegion["Union", {Ball[], Cuboid[]}]}];
Wolfram Language code: CSGRegionTree[reg]

与两个以上区域的交集：

Wolfram Language code: reg = CSGRegion["Intersection", {Ball[], Ball[], Cuboid[], Ball[]}];
Wolfram Language code: CSGRegionTree[reg]

CSGRegionTree 可处理二维 CSG 区域：

Wolfram Language code: reg = CSGRegion["Intersection", {Disk[], Rectangle[]}];
Wolfram Language code: CSGRegionTree[reg]

3D：

Wolfram Language code: reg = CSGRegion["Intersection", {Ball[], Cuboid[]}];
Wolfram Language code: CSGRegionTree[reg]

D：

Wolfram Language code: reg = CSGRegion["Intersection", {Ball[{0, 0, 0, 0}], Ball[{1, 0, 1, 0}]}];
Wolfram Language code: CSGRegionTree[reg]

属性和关系  (2)

CSGRegionTree 是一棵树：

Wolfram Language code: reg = CSGRegion["Union", {Ball[], Cuboid[], Ball[{1, 0, 0}]}];
Wolfram Language code: CSGRegionTree[reg]
Wolfram Language code: TreeQ[%]

CSG 区域树的叶子表示基元：

Wolfram Language code: reg = CSGRegion["Union", {Rotate[Ball[], 30Degree, {0, 0, 1}], Cuboid[], Ball[{1, 0, 0}]}];
Wolfram Language code: tree = CSGRegionTree[reg]
Wolfram Language code: TreeLeaves[tree]
