DemonstrateLightning

Demonstrate trajectory of lightning current

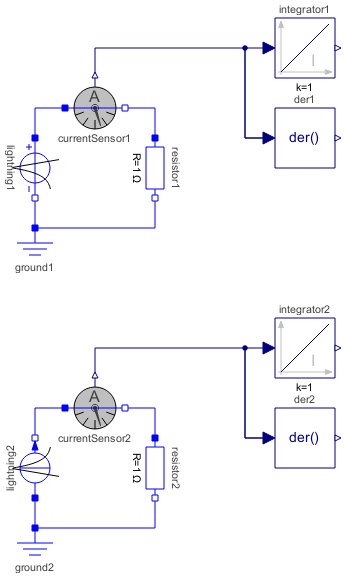

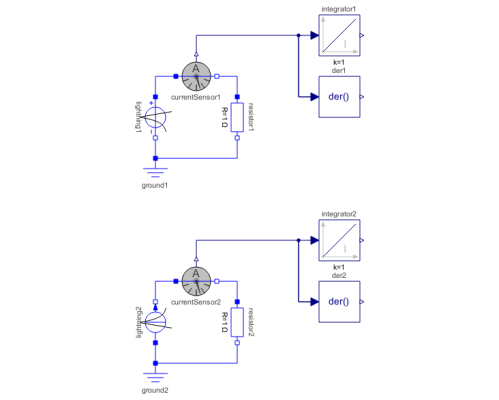

Diagram

In[1]:=

SystemModel["Modelica.Electrical.Analog.Examples.DemonstrateLightning"]

Out[1]:=

This information is part of the Modelica Standard Library maintained by the Modelica Association.

Compare 2 lightning trajectories: No.1 with double exponential function, No.2 with Heidler function.

Variables of interest are:

T1	Value: 10e-6 Type: Time (s) Description: Rise time
T2	Value: 350e-6 Type: Time (s) Description: Decay time to half value

Value: 10e-6

Type: Time (s)

Description: Rise time

Value: 350e-6

Type: Time (s)

Description: Decay time to half value

	lightning1	Type: LightningImpulseVoltage Description: Lightning impulse voltage
	lightning2	Type: LightningImpulseCurrent Description: Lightning impulse current
	ground1	Type: Ground Description: Ground node
	ground2	Type: Ground Description: Ground node
	resistor1	Type: Resistor Description: Ideal linear electrical resistor
	resistor2	Type: Resistor Description: Ideal linear electrical resistor
	currentSensor1	Type: CurrentSensor Description: Sensor to measure the current in a branch
	currentSensor2	Type: CurrentSensor Description: Sensor to measure the current in a branch
	integrator1	Type: Integrator Description: Output the integral of the input signal with optional reset
	der1	Type: Der Description: Derivative of input (= analytic differentiations)
	integrator2	Type: Integrator Description: Output the integral of the input signal with optional reset
	der2	Type: Der Description: Derivative of input (= analytic differentiations)
