IMC_InverterTest example: InductionMachineSquirrelCage with inverter |
 |

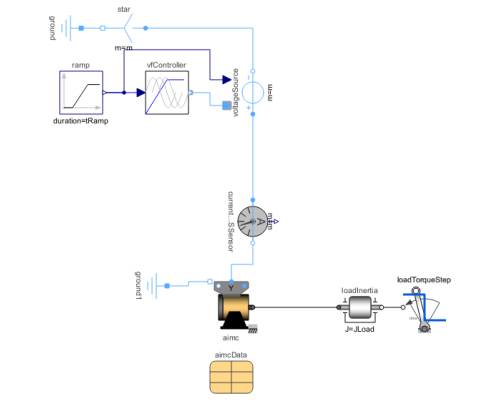

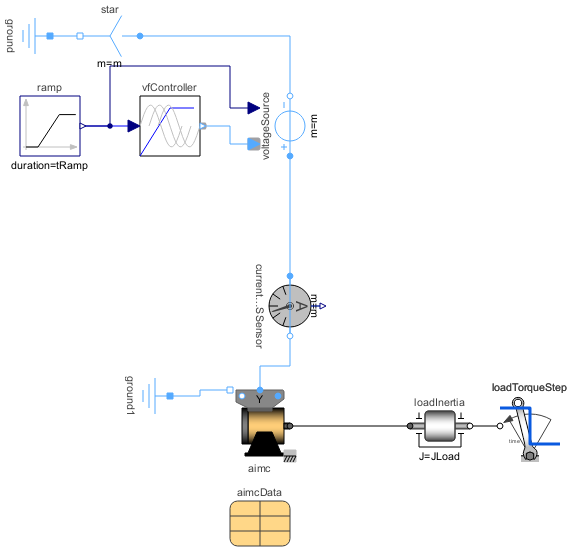

Diagram
Wolfram Language
In[1]:=
SystemModel["Modelica.Magnetic.QuasiStatic.FundamentalWave.Examples.BasicMachines.InductionMachines.IMC_Inverter"]
Out[1]:=
Information
This information is part of the Modelica Standard Library maintained by the Modelica Association.
Induction machine with squirrel cage fed by an ideal inverter
This example compares a time transient and a quasi static model of a multi phase induction machine.
An ideal frequency inverter is modeled by using a
Simulate for 1.5 seconds and plot (versus time):VfController and a multi phase SignalVoltage.
Frequency is raised by a ramp, causing the induction machine with squirrel cage to start,
and accelerating inertias. At time tStep a load step is applied.
currentRMSsensor.I|currentSensorQS.abs_i[1]: (equivalent) RMS stator currentimc|imcQS.wMechanical: machine speedimc|imcQS.tauElectrical: machine torque
Parameters (9)
| m |
Value: 3 Type: Integer Description: Number of phases |
|---|---|
| VNominal |
Value: 100 Type: Voltage (V) Description: Nominal RMS voltage per phase |
| fNominal |
Value: 50 Type: Frequency (Hz) Description: Nominal frequency |
| f |
Value: 50 Type: Frequency (Hz) Description: Actual frequency |
| tRamp |
Value: 1 Type: Time (s) Description: Frequency ramp |
| TLoad |
Value: 161.4 Type: Torque (N·m) Description: Nominal load torque |
| tStep |
Value: 1.2 Type: Time (s) Description: Time of load torque step |
| JLoad |
Value: 0.29 Type: Inertia (kg·m²) Description: Load's moment of inertia |
| imcData |
Value: Type: AIM_SquirrelCageData Description: Machine data |
Components (22)
 |
imc |
Type: AIM_SquirrelCage Description: |
|---|---|---|
 |
ramp |
Type: Ramp Description: |
 |
vfController |
Type: VfController Description: |
 |
signalVoltage |
Type: SignalVoltage Description: |
 |
star |
Type: Star Description: |
 |
ground |
Type: Ground Description: |
 |
loadInertia |
Type: Inertia Description: |
 |
loadTorqueStep |
Type: TorqueStep Description: |
 |
terminalBox |
Type: TerminalBox Description: |
 |
imcData |
Type: AIM_SquirrelCageData Description: Machine data |
 |
currentQuasiRMSSensor |
Type: CurrentQuasiRMSSensor Description: |
 |
imcQS |
Type: IM_SquirrelCage Description: |
|
loadInertiaQS |
Type: Inertia Description: |
|
loadTorqueStepQS |
Type: TorqueStep Description: |
 |
terminalBox1 |
Type: MultiTerminalBox Description: |
 |
currentQuasiRMSSensorQS |
Type: CurrentQuasiRMSSensor Description: |
 |
groundMachineQS |
Type: Ground Description: |
 |
starMachineQS |
Type: Star Description: |
 |
signalVoltageQS |
Type: VariableVoltageSource Description: |
|
starQS |
Type: Star Description: |
|
groundQS |
Type: Ground Description: |
 |
vfControllerQS |
Type: VfController Description: |
