ReadAdds reading of a Boolean scalar node to a ReadNodeList |
 |

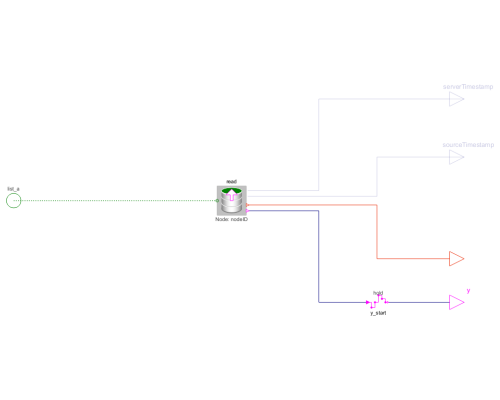

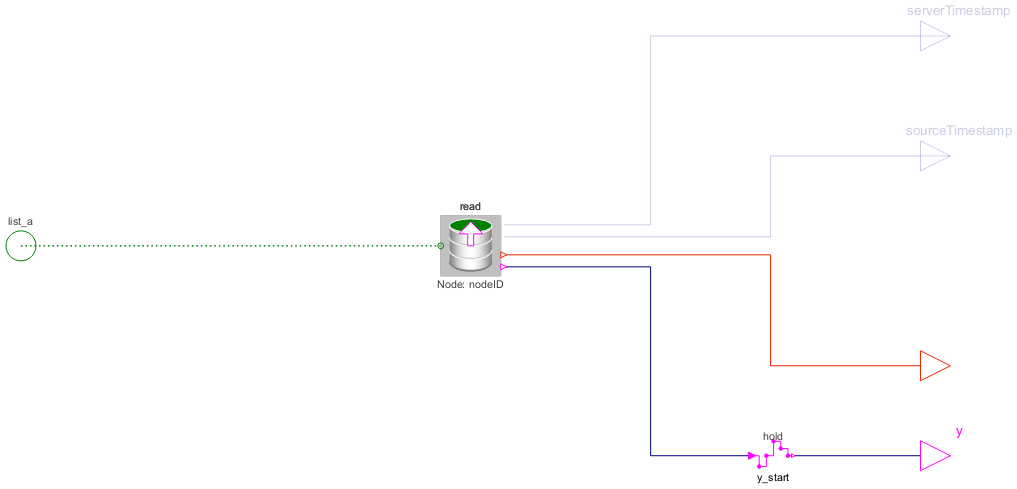

Diagram
Wolfram Language
In[1]:=
SystemModel["OPCUA.Components.Unclocked.BooleanSignals.Read"]
Out[1]:=
Information
This component reads scalar data from the specified node as part of the request defined by the ReadNodeList it's connected to.
See OPCUA.Interfaces.Node for how to specify the node identity and handle errors.
Parameters (7)
| nodeIDType |
Value: Type: UANodeIdType Description: The node identifier type |
|---|---|
| nodeID |
Value: Type: String Description: The node identifier |
| nodeNamespace |
Value: Type: Integer Description: The node namespace |
| errorHandling |
Value: Type: ErrorHandling Description: How to handle node errors (request errors are handled by the connected Read/WriteNodeList component) |
| enableSourceTimestamp |
Value: false Type: Boolean Description: Enable source timestamp output |
| enableServerTimestamp |
Value: false Type: Boolean Description: Enable server timestamp output |
| y_start |
Value: false Type: Boolean Description: Value of output y before the first read |
Connectors (5)
 |
severity |
Type: SeverityOutput Description: Node level status severity |
|---|---|---|
 |
list_a |
Type: List_a Description: Connector for propagating node registrations to a NodeList |
 |
sourceTimestamp |
Type: TimestampOutput Description: 'output Timestamp' as connector |
|
serverTimestamp |
Type: TimestampOutput Description: 'output Timestamp' as connector |
 |
y |
Type: BooleanOutput Description: 'output Boolean' as connector |
Components (3)
| nodeObj |
Type: NodeObject |
|
|---|---|---|
 |
read |
Type: Read Description: Adds reading of a Boolean scalar node to a ReadNodeList |
 |
hold |
Type: Hold Description: Hold the clocked, Boolean input signal and provide it as continuous-time output signal (zero order hold) |
Used in Examples (2)
 |
OPCUA.Examples Demonstrates how to write to and read from nodes on an OPC UA server |
 |
OPCUA.Examples Demonstrates the interaction with an OPC UA server on a Raspberry Pi |
