RegionDilation

RegionDilation[reg,r]

gives the dilation of the region reg by a disk of radius r centered at the origin.

RegionDilation[reg1,reg2]

gives the dilation of the region reg1 by the region reg2.

RegionDilation[reg1,reg2,{u,v}]

gives the dilation of reg1 scaled by a factor u and reg2 scaled by a factor v.

Details and Options

  • RegionDilation is also known as Minkowski sum, geometric sum or offset.
  • Typically used to construct the union of positions of a region through translation.
  • RegionDilation[reg,r] gives the dilation of the region reg by a disk of radius r.
  • RegionDilation[reg1,reg2] returns the region reg1⊕reg2={a+b|a∈reg1∧b∈reg2}.
  • RegionDilation[reg1,reg2,{u,v}] returns the region u reg1⊕v reg2={u a+v b|a∈reg1∧b∈reg2}.
  • RegionDilation takes the same options as Region.

Examples

open allclose all

Basic Examples  (4)

Dilation of a disk:

Dilation of Triangle by Disk:

Dilation of Rectangle by Triangle:

Visualize it:

Dilation of two regions:

Visualize it:

Scope  (8)

Special Regions  (4)

Dilation of two lines:

Visualize it:

Dilation of two disks:

Dilation of a rectangle and a disk:

A disk and a circle:

Visualize it:

Dilation of two polygons:

Visualize it:

Formula Regions  (1)

RegionDilation of ImplicitRegion objects:

2D:

Mesh Regions  (1)

Dilation of two BoundaryMeshRegion objects:

In 3D:

Derived Regions  (2)

Dilation of two BooleanRegion objects:

Visualize it:

Dilation of two TransformedRegion objects:

Visualize it:

Possible Issues  (1)

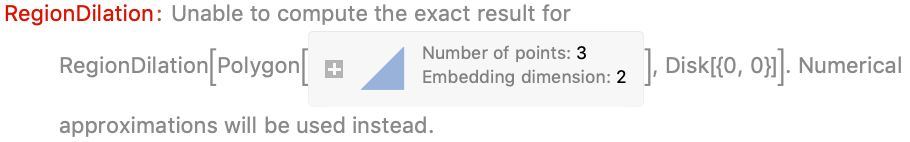

RegionDilation gives an approximate result when the exact result cannot be computed:

Turn on the message:
