ResidueLabels
is an option for BioMoleculePlot3D that specifies what labels should be used for monomer residues.
Details

- Labels for residues in a biomolecule ribbon diagram, displayed as tooltips.

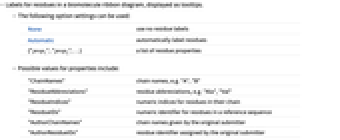

- The following option settings can be used:
-
None use no residue labels Automatic automatically label residues {"prop1","prop2",…} a list of residue properties - Possible values for properties include:
-
"ChainNames" chain names, e.g. "A", "B" "ResidueAbbreviations" residue abbreviations, e.g. "Ala", "Val" "ResidueIndices" numeric indices for residues in their chain "ResidueIDs" numeric identifier for residues in a reference sequence "AuthorChainNames" chain names given by the original submitter "AuthorResidueIDs" residue identifier assigned by the original submitter - Residue labels will be displayed as tooltips when mousing over a region in the 3D plot. Use ResidueLabelsPlaced[…,StatusArea] to instead display the labels in the notebook status area.
- Automatic is equivalent to Placed[{"ChainNames","ResidueIndices"},Tooltip].
Examples
Basic Examples (2)
Import a BioMolecule and plot it with residue labels:
