"PrincipalComponentsAnalysis" (Machine Learning Method)

Details & Suboptions

  • "PrincipalComponentsAnalysis" is a linear dimensionality reduction method. The method projects input data on a linear lower-dimensional space that preserves the maximum variance in the data.
  • The "PrincipalComponentsAnalysis" method works for datasets that have a large number of features and large number of examples; however, the learned manifold can only be linear.

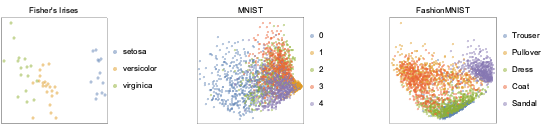

  • The following plots show the results of the "PrincipalComponentsAnalysis" method applied to benchmark datasets including Fisher's Irises, MNIST and FashionMNIST:
  • "PrincipalComponentsAnalysis" is equivalent to the "Linear" and "LatentSemanticAnalysis" methods when the data is standardized.

Examples

open allclose all

Basic Examples  (1)

Train a linear dimensionality reduction using the "PrincipalComponentsAnalysis" method from a list of vectors:

Use the trained reducer on new vectors:

Scope  (1)

Dataset Visualization  (1)

Load the Fisher Iris dataset from ExampleData:

Generate a reducer function using "PrincipalComponentsAnalysis" with the features of each example:

Group the examples by their species:

Reduce the dimension of the features:

Visualize the reduced dataset:
