LogLinearPlot

LogLinearPlot[f, {x, x_min, x_max}]
generates a log-linear plot of f as a function of x from x_min to x_max.

LogLinearPlot[{f₁, f₂, ...}, {x, x_min, x_max}]
generates log-linear plots of several functions f_i.

MORE INFORMATION

LogLinearPlot effectively generates a curve in which f is plotted against Log[x], but with tick marks indicating the original values of x.

LogLinearPlot makes logarithmic functions appear as straight lines.

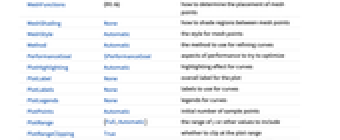

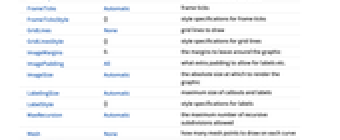

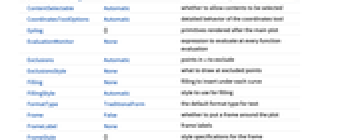

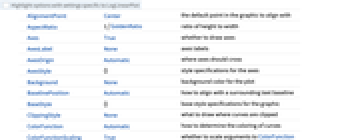

LogLinearPlot has the same options as Plot.

Basic Examples (3)

Make a plot with a logarithmic x scale:

Plot several functions:

Fill below a curve:

ListLogLinearPlot LogPlot LogLogPlot Plot ParametricPlot

Some Special Plots

Function Visualization

New in 6.0: Function Visualization
