CUDAErosion

CUDAErosion[img,r]

gives the morphological erosion of img with respect to a range-r square.

CUDAErosion[list,r]

gives the morphological erosion of list with respect to a range-r square.

CUDAErosion[mem,r]

gives the morphological erosion of mem with respect to a range-r square.

Details and Options

  • The CUDALink application must be loaded using Needs["CUDALink`"].
  • CUDAErosion works with binary, grayscale, and other images.
  • CUDAErosion works with CUDAMemory and lists.
  • CUDAErosion[image,r] is equivalent to Erosion[image,r].
  • If multiple image channels are present, CUDADilation operates on each of them separately.
  • The following options can be given:
  • "Device"Automaticdevice used for CUDA computation
    Padding"Fixed"value used on boundary
    "OutputMemory"NoneCUDAMemory where output is stored

Examples

Basic Examples  (6)Summary of the most common use cases

First, load the CUDALink application:

In[1]:=1
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-9h8a50

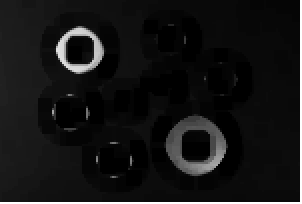

Erosion reduces smaller, light features:

In[2]:=2
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-eifnxu
Out[2]=2

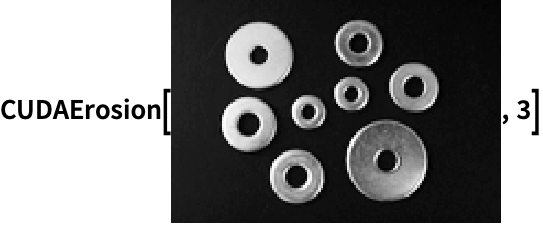

Erosion of a grayscale image:

In[1]:=1
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-0c1z44
Out[1]=1

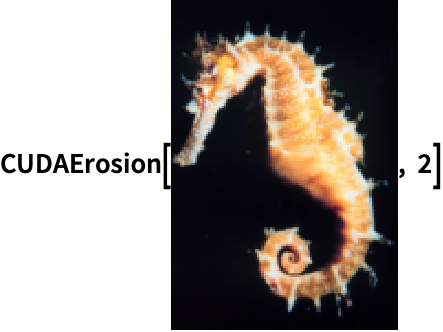

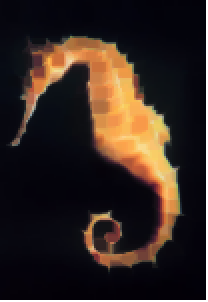

Erosion operates on each color channel independently:

In[1]:=1
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-rqk7oo
Out[1]=1

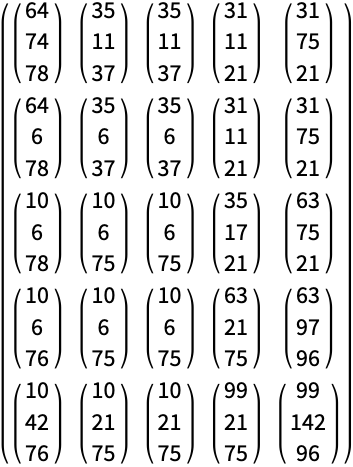

Erosion can be used to perform a max filter on an input list:

In[1]:=1
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-hjc1w

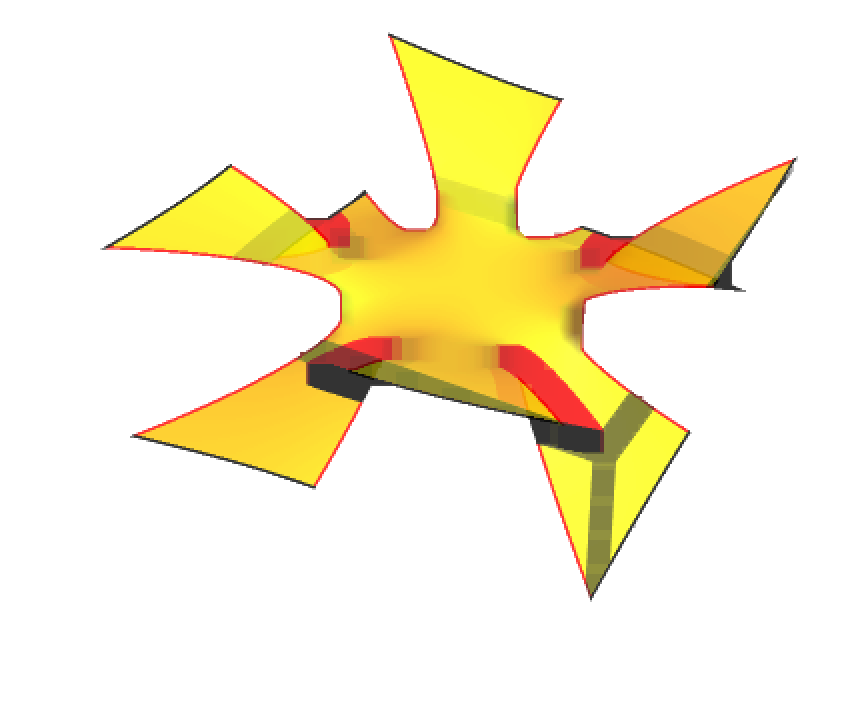

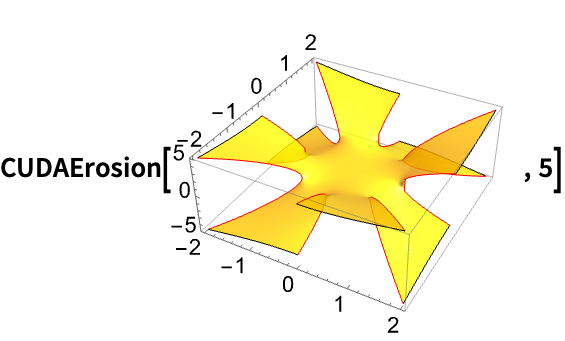

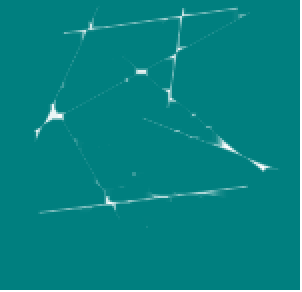

CUDAErosion works with graphics objects:

In[1]:=1
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-bbavb0
Out[1]=1

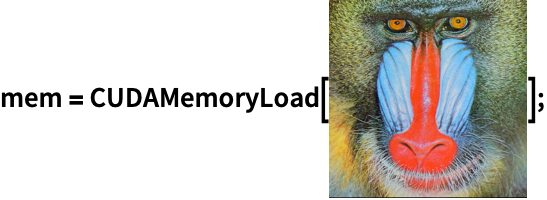

Using CUDAMemory, one can speed up computation by reducing the amount of memory operations. This loads memory onto the CPU:

In[1]:=1
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-f3hsxr

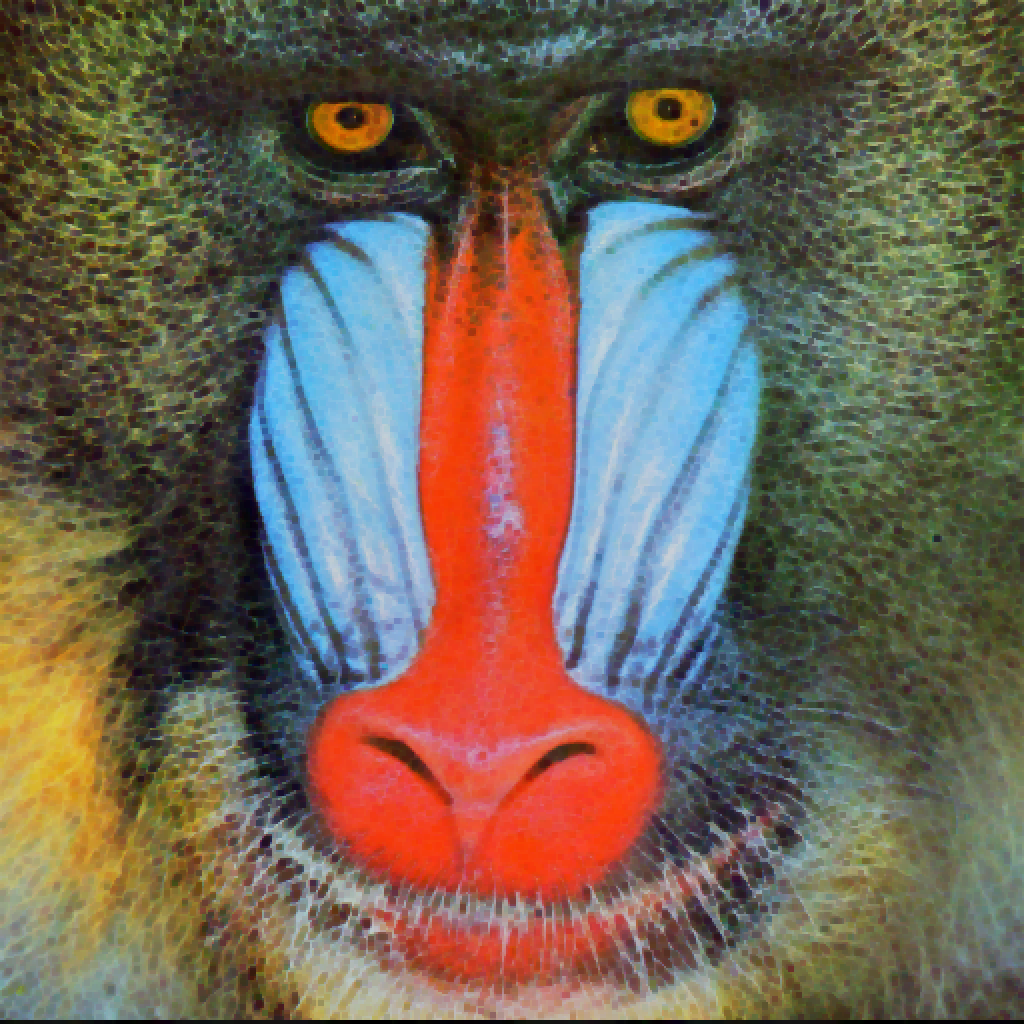

This performs the erosion operation:

In[2]:=2
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-ie3ki6
Out[2]=2

This gets the memory back to the CPU:

In[3]:=3
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-dg0ah9
Out[3]=3

Memory must be deleted:

In[4]:=4
✖
https://wolfram.com/xid/04h86q1vm2mvc4z5jqysla471e-ccytfa
