WOLFRAM

Wolfram 语言与系统参考资料中心

ARPublish[expr]

将 expr 发布到 AR 设备.

ARPublish[{expr1,expr2,…}]

在可浏览的图库布局中显示 expri.

更多信息和选项
Details and Options Details and Options
范例
基本范例
范围
图形
区域
GeoPolygons
Show More Show More
图像
实体
文本
分子
选项
TargetSystem
应用
图形
可视化
化学
生物
属性和关系
参见
相关的工作流程
历史
按以下格式引用：

ARPublish

ARPublish[expr]

将 expr 发布到 AR 设备.

ARPublish[{expr1,expr2,…}]

在可浏览的图库布局中显示 expri.

更多信息和选项

  • ARPublish 通常用于在增强现实 (AR) 设备（例如手机或平板电脑）中可视化 3D 几何或图形对象.
  • ARPublish 返回可由 AR 设备扫描的条形码图像.
  • 可给出以下 expr：
  • Graphics3D部署 3D 图像形
    Graphics通过投射图形创建 3D 图形
    Region部署一个几何区域（球、网格、...）
    Image3D将 3D 图像部署为体素
    Image将图像用作矩形纹理
    Molecule用球-棍模型显示分子
    BioMolecule用丝带显示聚合物链
    Text创建凸起的文本
    Entity部署实体的 "Region" 属性
  • ARPublish 接受以下选项：
  • PermissionsAutomatic部署的对象的的权限
    TargetSystem All目标结构
  • 常用的 TargetSystem 的值包括 "iOS"、"iPadOS" 和 "Android".

范例

打开所有单元 关闭所有单元

基本范例  (3)

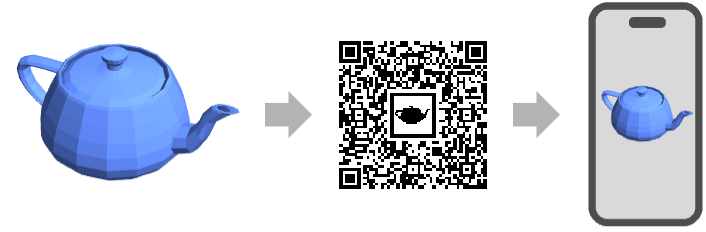

将 Graphics3D 对象部署到 AR 设备：

Wolfram Language code: g = ResourceData["Utah Teapot"]

扫描条形码图像以在手机或平板电脑上可视化：

Wolfram Language code: ARPublish[g]

部署法国地图：

Wolfram Language code: map = ["france"];
Wolfram Language code: Region[Polygon[map]]

扫描条形码图像以在手机或平板电脑上可视化：

Wolfram Language code: ARPublish[map]

以可浏览的图库布局显示模型列表：

Wolfram Language code: ARPublish[{[image] , [image], [image]}]

范围  (20)

图形  (4)

部署二维图形对象：

Wolfram Language code: g = Graphics[{Red, Disk[], Green, Rectangle[{0, 0}, {2, 2}], Blue, Disk[{2, 2}]}]
Wolfram Language code: ARPublish[g]

部署一个 Graphics3D 对象：

Wolfram Language code: g = Graphics3D[Cube[]]
Wolfram Language code: ARPublish[g]

部署三维绘图：

Wolfram Language code: plot = ContourPlot3D[x ^ 4 + y ^ 4 + z ^ 4 - (x ^ 2 + y ^ 2 + z ^ 2) ^ 2 + 3 (x ^ 2 + y ^ 2 + z ^ 2) == 3, {x, -2, 2}, {y, -2, 2}, {z, -2, 2}, Mesh -> None, ContourStyle -> Directive[Orange, Opacity[0.8], Specularity[White, 30]]]
Wolfram Language code: ARPublish[plot]

部署文件中的图形：

Wolfram Language code: g = Import["ExampleData/seashell.stl", "Graphics3D"]
Wolfram Language code: ARPublish[g]

区域  (3)

部署几何对象：

Wolfram Language code: ARPublish[Ball[]]

部署网格区域：

Wolfram Language code: mesh = MengerMesh[2, 3]
Wolfram Language code: ARPublish[mesh]

部署曲面：

Wolfram Language code: mesh = ParametricRegion[{u, v, u^2 - v^2}, {{u, -1, 1}, {v, -1, 1}}];
Wolfram Language code: Region[mesh]
Wolfram Language code: ARPublish[mesh]

GeoPolygons  (2)

部署带有 GeoPosition 的多边形：

Wolfram Language code: ARPublish[Polygon[GeoPosition[{{{40.083441, -88.235716}, {40.083607, -88.257488}, {40.082603, -88.257149}, {40.076136999999996, -88.25740499999999}, {40.076178, -88.270888}, {40.076516, -88.271558}, {40.083686, -88.271512}, {40.083659999999995, -88.267046}, ... 33323}, {40.098112, -88.228687}, {40.095216, -88.228627}, {40.095179, -88.238547}, {40.094480999999995, -88.238546}, {40.094508999999995, -88.23267}, {40.094106, -88.232556}, {40.090666999999996, -88.232477}, {40.090741, -88.235745}}}]]]

部署带有 GeoGridPosition 的多边形：

Wolfram Language code: ARPublish[Polygon[GeoGridPosition[{{{-0.9950503945490105, 1.2366760550756015}, {-0.9952074890903578, 1.2369207053693891}, {-0.9952196732768064, 1.2369073327446167}, {-0.9953160063787643, 1.236848436956935}, {-0.9954141759436825, 1.2369993898475449}, {-0. ... 197645333103}, {-0.9949098578570917, 1.2368130881428654}, {-0.9948663952535768, 1.2367477711687371}, {-0.9948714472169538, 1.2367426500757825}, {-0.9949211061652593, 1.2367089232486177}, {-0.9949439717990124, 1.236746107097628}}}, "Bonne"]]]

图像  (2)

部署二维图像：

Wolfram Language code: image = [image];
Wolfram Language code: ARPublish[image]

部署 3D 图像：

Wolfram Language code: image = [image];
Wolfram Language code: ARPublish[image]

实体  (5)

部署一个三叶结：

Wolfram Language code: knot = ["trefoil knot"];
Wolfram Language code: Region[Polyhedron[ knot]]
Wolfram Language code: ARPublish[knot]

部署解剖头骨：

Wolfram Language code: skull = ["skull"];
Wolfram Language code: AnatomyData[skull, "Graphics3D"]
Wolfram Language code: ARPublish[ skull]

部署法国地图：

Wolfram Language code: map = ["france"];
Wolfram Language code: Region[Polygon[map]]
Wolfram Language code: ARPublish[map]

部署彼得森图：

Wolfram Language code: graph = Entity["Graph", "PetersenGraph"];
Wolfram Language code: Graph3D[graph]
Wolfram Language code: ARPublish[graph]

部署化合物咖啡因：

Wolfram Language code: chemical = Entity["Chemical", "Caffeine"];
Wolfram Language code: MoleculePlot3D[chemical]
Wolfram Language code: ARPublish[chemical]

文本  (2)

部署文本：

Wolfram Language code: ARPublish["Wolf"]

部署具有格式的文本：

Wolfram Language code: text = Style["wolf", FontFamily -> "Comic Sans MS"]
Wolfram Language code: ARPublish[ text]

分子  (2)

部署一个 molecule 对象：

Wolfram Language code: molecule = Molecule[Entity["Chemical", "Caffeine"]];
Wolfram Language code: MoleculePlot3D[molecule]
Wolfram Language code: ARPublish[molecule]

部署一个聚合物链：

Wolfram Language code: biomolecule = BioMolecule[ExternalIdentifier["PDBStructureID", "6WXD"]];
Wolfram Language code: BioMoleculePlot3D[biomolecule]
Wolfram Language code: ARPublish[ biomolecule]

选项  (1)

TargetSystem  (1)

可用 TargetSystem 指定其他平台; includes "iOS":

Wolfram Language code: m = ExampleData[{"Geometry3D", "UtahTeapot"}];
Wolfram Language code: ARPublish[m, TargetSystem -> "iOS"]

"Android":

Wolfram Language code: ARPublish[m, TargetSystem -> "Android"]

"iPadOS":

Wolfram Language code: ARPublish[m, TargetSystem -> "iPadOS"]

应用  (11)

图形  (3)

可视化三维基本基元：

Wolfram Language code: objs = {Graphics3D[{Blue, Ball[]}], Graphics3D[{Red, Cube[]}], Graphics3D[{Yellow, Dodecahedron[]}]}
Wolfram Language code: ARPublish[objs]

可视化二维基本基元

Wolfram Language code: objs = {Graphics[{Blue, Disk[]}], Graphics[{Red, StadiumShape[]}], Graphics[{Brown, Triangle[]}]}
Wolfram Language code: ARPublish[objs]

编写文本，以便在 AR 中查看：

Wolfram Language code: name = "Wolf";
Wolfram Language code: ARPublish[name]

可视化  (3)

可视化球面：

Wolfram Language code: obj = SphericalPlot3D[1 + 2 Cos[2 θ], {θ, 0, Pi}, {ϕ, 0, 2 Pi}]
Wolfram Language code: ARPublish[obj]

条形图：

Wolfram Language code: obj = BarChart3D[{{1, 2, 4, 5}}]
Wolfram Language code: ARPublish[obj]

可视化三维数据重建的曲面：

Wolfram Language code: data = ExampleData[{"Geometry3D", "StanfordBunny"}, "VertexData"]; obj = ListSurfacePlot3D[data, ...]
Wolfram Language code: ARPublish[obj]

化学  (3)

可视化三维分子：

Wolfram Language code: obj = MoleculePlot3D[Molecule["NC(=O)C[C@H](C(=O)O)N"]]
Wolfram Language code: ARPublish[obj]

分子图库：

Wolfram Language code: objs = MoleculePlot3D[Molecule[#]]& /@ {"NC(=O)C[C@H](C(=O)O)N", "CCCC", "O=C(C1CCC1)S[C@@H]1CCC1(C)C"}
Wolfram Language code: ARPublish[objs]

实体：

Wolfram Language code: obj = Entity["Chemical", "Caffeine"]
Wolfram Language code: ARPublish[obj]

生物  (2)

可视化多肽：

Wolfram Language code: obj = BioMoleculePlot3D[BioMolecule[Association["Models" -> {Association["Chains" -> Association["A" -> Association["AuthorChainName" -> "A", "Type" -> "Peptide", "Residues" -> {Association["Name" -> "GLY", "ResidueId" -> 1, "Atoms" -> {"N", "CA ... ID" -> "36", "DbBeginID" -> "26", "DbEndID" -> "61"]}], Association["EntityType" -> "NonPolymer", "SubChains" -> {"B"}]}, "Name" -> "1PPT", "LatticeParameters" -> {34.18, 32.92, 28.4, 90., 105.26, 90.}, "SpaceGroupNumber" -> 9]], PlotTheme -> "Backbone"]
Wolfram Language code: ARPublish[obj]

根据不同主题可视化蛋白质：

Wolfram Language code: objs = BioMoleculePlot3D[BioMolecule[Association["Models" -> {Association["Chains" -> Association["A" -> Association["AuthorChainName" -> "A", "Type" -> "Peptide", "Residues" -> {Association["Name" -> "GLY", "ResidueId" -> 1, "Atoms" -> {"N", "CA ... ID" -> "36", "DbBeginID" -> "26", "DbEndID" -> "61"]}], Association["EntityType" -> "NonPolymer", "SubChains" -> {"B"}]}, "Name" -> "1PPT", "LatticeParameters" -> {34.18, 32.92, 28.4, 90., 105.26, 90.}, "SpaceGroupNumber" -> 9]], PlotTheme -> #]& /@ {"Ribbons", "Tubes", "Spacefilling"}
Wolfram Language code: ARPublish[objs]

属性和关系  (1)

将 3D 对象导出为 AR 格式，如 USD：

Wolfram Language code: Export["ar.usdz", Graphics3D[Cuboid[]], "USD"]

GLTF:

Wolfram Language code: Export["ar.gltf", Graphics3D[Cuboid[]], "GLTF"]
