MorphologicalGraph
MorphologicalGraph
MorphologicalGraph[image]
给出表示应用形态学细化后，image 中的形态学分支点和端点的连通度的一个图形对象.
更多信息和选项

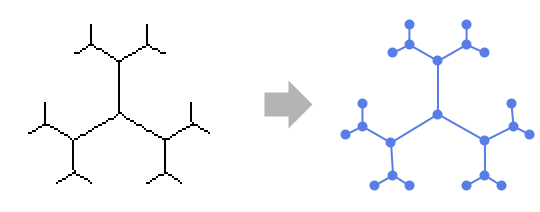

- MorphologicalGraph is an image-to-graph conversion, where branch points and end points of the image skeleton are the vertices and the connections between them are the edges.
- MorphologicalGraph 创建一个具有无向边的 Graph 对象.
- MorphologicalGraph 找到应用 Thinning 后的形态学分支点和端点.
- 对于多通道图像，MorphologicalGraph 作用于对所有通道求平均所得的亮度值.
- image 骨架的形态学分支点和端点被转化为顶点. 如果骨架中对应的分支点和端点是 8 连通的，则图形给出两个顶点之间的一条无向边.
- MorphologicalGraph takes the same options as Graph, with the following changes:
-
EdgeWeight Automatic smallest number of pixels connecting two vertices VertexCoordinates Automatic coordinates of vertices in the image
