NuclearReactorData

For general access to the Wolfram Knowledgebase, use entities of type NuclearReactor instead of NuclearReactorData.

NuclearReactorData[entity,property]

gives the value of the specified property for the nuclear reactor entity.

NuclearReactorData[{entity1,entity2,},property]

gives a list of property values for the specified nuclear reactor entities.

NuclearReactorData[entity,property,annotation]

gives the specified annotation associated with the given property.

Details

  • NuclearReactorData[] gives a list of all nuclear reactor entities.
  • NuclearReactorData["Properties"] gives a list of available properties.
  • The specified entity in NuclearReactorData can be an Entity, EntityClass, entity canonical name, or list thereof.
  • The specified property can be an EntityProperty, EntityPropertyClass, property canonical name, or list of properties.
  • Properties that do not apply or are not known in a particular case are indicated by Missing[].
  • Properties include:
  • "AdministrativeDivisions"administrative divisions
    "AnnualEnergyAvailabilityFactor"annual energy availability factor
    "AnnualEnergyProduction"annual energy production
    "CommercialOperationStartDate"first commercial operation
    "ConnectedToGridDate"connection to grid
    "ConstructionStartDate"construction started
    "Countries"country
    "CumulativeEnergyProduced"cumulative energy produced
    "CumulativeEnergyUnavailableFactor"cumulative energy unavailable factor
    "CumulativeOperatingFactor"cumulative operating factor
    "EnergyAvailabilityFactorCumulative"lifetime energy availability factor
    "FirstCriticalityDate"first criticality
    "GrossCapacity"gross capacity
    "Image"image
    "LoadFactorAnnual"annual load factor
    "LoadFactorCumulative"lifetime load factor
    "LongTermShutdownDate"long term shutdown
    "Name"name
    "NetCapacity"net capacity
    "NuclearReactorSite"nuclear reactor site
    "OperationalFactorAnnual"annual operational factor
    "Operator"operator
    "Owner"owner
    "PermanentShutdownDate"permanent shutdown
    "Position"coordinates
    "Status"status
    "TimeOnLineAnnual"annual time on line
    "TimeOnLineCumulative"lifetime time on line
    "Type"reactor type
  • Some properties are available for NuclearReactorData as a whole and can be given using the form NuclearReactorData[property]. Such properties include:
  • "Entities"all available entities
    "EntityCount"total number of available entities
    "Classes"all available entity classes
    "EntityClassCount"total number of available entity classes
    "SampleEntities"list of sample entities
    "SampleEntityClasses"list of sample entity classes
    "EntityCanonicalNames"list of all entity canonical names
    "PropertyCanonicalNames"list of all property canonical names
    "EntityClassCanonicalNames"list of all entity class canonical names
    "RandomEntities"pseudorandom sample entities
    {"RandomEntities",n}n pseudorandom entities
    "RandomEntityClasses"pseudorandom sample entity classes
    {"RandomEntityClasses",n}n pseudorandom entity classes

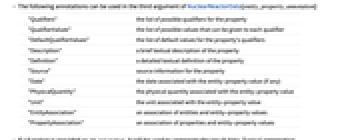

  • The following annotations can be used in the third argument of NuclearReactorData[entity,property,annotation]:
  • "Qualifiers"the list of possible qualifiers for the property
    "QualifierValues"the list of possible values that can be given to each qualifier
    "DefaultQualifierValues"the list of default values for the property's qualifiers
    "Description"a brief textual description of the property
    "Definition"a detailed textual definition of the property
    "Source"source information for the property
    "Date"the date associated with the entity-property value (if any)
    "PhysicalQuantity"the physical quantity associated with the entity-property value
    "Unit"the unit associated with the entity-property value
    "EntityAssociation"an association of entities and entity-property values
    "PropertyAssociation"an association of properties and entity-property values
  • If a function is provided as an annotation, it will be used to aggregate the result data. Typical aggregation functions include:
  • Minthe minimum value
    Maxthe maximum value
    Meanthe mean value
    Commonestthe most frequently occurring value
    Medianthe median value
    Totalreturns the total
    Lengththe number of elements

Examples

open allclose all

Basic Examples  (4)

Use for entity discovery:

Find properties of a nuclear reactor:

Find a list of sample classes of nuclear reactors:

Compare gross capacity for a class of reactors:

Neat Examples  (3)

Visualize energy production for a group of reactors:

Map nearby cities to Three Mile Island-2:

Display the number of nuclear reactors under construction by country:
