SphericalAngle

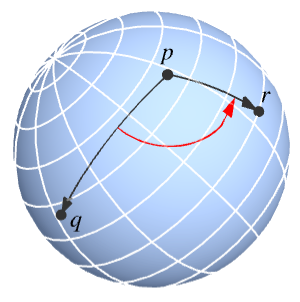

SphericalAngle[{θ0,ϕ0}{{θ1,ϕ1},{θ2,ϕ2}}]

gives the signed angle in radians between the great circles through point {θ0,ϕ0} and points {θ1,ϕ1} and {θ2,ϕ2}.

SphericalAngle[p{q,r}]

gives the unsigned angle for points p, q, r of the form {θ1,θ2,…,θn-1,ϕ} on an n-dimensional hypersphere.

SphericalAngle[p{{q1,r1},…,{qn,rn}}]

gives a list of angles between the great circles from point p through points qi and ri.

SphericalAngle[{p1,…,pn}{{q1,r1},…,{qn,rn}}]

gives a list of angles between the great circles from point pi through points qi and ri.

Details

  • Spherical or hyperspherical coordinate vectors use the same conventions of CoordinateChartData and CoordinateTransformData, but with the leading r coordinate dropped.
  • The angle between great circles is measured in radians, and it does not depend on spherical or hyperspherical radius.
  • The spherical case is orientable, so a signed angle is returned. The hyperspherical case is non-orientable without additional input, so an unsigned angle is returned.
  • The sign convention is positive counterclockwise around the normal passing through point p.
  • Points on a 2D sphere can also be specified using GeoPosition[{lat,lon}] notation, with latitudes and longitudes in degrees.
  • When working with numerical data, SphericalAngle does not accept complex-valued inputs and returns only real-valued outputs.

Examples

open all close all

Basic Examples  (4)

Compute the angle between polar great circles:

Wolfram Language code: SphericalAngle[{0, 0} -> {{Pi / 3, 0}, {Pi / 4, Pi / 4}}]

Find the angle between a pair of geodesics on the 3-sphere:

Wolfram Language code: SphericalAngle[{0.52, 0.63, 0.78} -> {{1.38, 0.94, 0.43}, {1.05, 1.57, 3.14}}]

Perform a symbolic computation:

Wolfram Language code: SphericalAngle[{0, 0} -> {{a, b}, {c, d}}]

Simplify the result assuming a typical range of values:

Wolfram Language code: Simplify[%, {0 < a < Pi, 0 < c < Pi}]

Calculate 10 random angles on a 4-sphere, all centered around one chosen point:

Wolfram Language code: SphericalAngle[{0, 0, 0, 0} -> RandomReal[Pi, {10, 2, 4}]]

Scope  (3)

Calculate a symbolic angle between arbitrary points on a sphere:

Wolfram Language code: SphericalAngle[{a, b} -> {{c, d}, {e, f}}]

Calculate the angle around a tetrahedron vertex using 30 digits of precision:

Wolfram Language code: Take[PolyhedronData["Tetrahedron", "VertexCoordinates"], 3]
Wolfram Language code: {q, p, r} = N[Rest /@ ToPolarCoordinates[%], 30]
Wolfram Language code: SphericalAngle[p -> {q, r}]

Compare with the exact value:

Wolfram Language code: % - 2Pi / 3

SphericalAngle also accepts GeoPosition latitude-longitude coordinates:

Wolfram Language code: {q, p, r} = GeoPosition /@ {Entity["City", {"Chicago", "Illinois", "UnitedStates"}], Entity["City", {"Atlanta", "Georgia", "UnitedStates"}], Entity["City", {"Dallas", "Texas", "UnitedStates"}]}
Wolfram Language code: GeoGraphics[GeoPath[{q, p, r}], GeoRange -> Entity["Country", "UnitedStates"]]
Wolfram Language code: SphericalAngle[p -> {q, r}] / Degree

Applications  (1)

Define three points bounding a spherical octant:

Wolfram Language code: {q, p, r} = {{Pi / 2, 0}, {0, 0}, {Pi / 2, Pi / 2}}

Compute the interior angle at each vertex:

Wolfram Language code: angles = SphericalAngle /@ {p -> {q, r}, p -> {q, r}, q -> {r, p}}

Verify that the sum of these angles minus π equals an eighth of the area of the unit sphere:

Wolfram Language code: With[{sphereArea = 4Pi}, SameQ[Total[angles] - Pi, sphereArea / 8]]

Properties & Relations  (3)

GeoDirection computes an angle from the North Pole on an ellipsoidal model of the Earth:

Wolfram Language code: GeoDirection[Entity["City", {"Madrid", "Madrid", "Spain"}], Entity["City", {"Paris", "IleDeFrance", "France"}]]

Compute a similar angle on a sphere:

Wolfram Language code: SphericalAngle[GeoPosition[Entity["City", {"Madrid", "Madrid", "Spain"}]] -> {{0, 0}, GeoPosition[Entity["City", {"Paris", "IleDeFrance", "France"}]]}] / Degree

Force GeoDirection to use a spherical model of the Earth:

Wolfram Language code: GeoDirection[GeoPosition[Entity["City", {"Madrid", "Madrid", "Spain"}]["Coordinates"], 1], GeoPosition[Entity["City", {"Paris", "IleDeFrance", "France"}]["Coordinates"], 1]]

Approximate the area of the Bermuda Triangle:

Wolfram Language code: {b1, b2, b3} = GeoPosition /@ { Entity["City", {"SanJuan", "SanJuan", "PuertoRico"}]["Coordinates"], Entity["City", {"Miami", "Florida", "UnitedStates"}]["Coordinates"], Entity["City", {"Hamilton", "Hamilton", "Bermuda"}]["Coordinates"]};
Wolfram Language code: GeoGraphics[Polygon[{b1, b2, b3}]]
Wolfram Language code: angles = SphericalAngle[{b1 -> {b3, b2}, b3 -> {b2, b1}, b2 -> {b1, b3}}]
Wolfram Language code: (Total[angles] - π) Entity["Planet", "Earth"]["Radius"] ^ 2

Compare with GeoArea, which uses an ellipsoidal model of the Earth:

Wolfram Language code: GeoArea[Polygon[{b1, b2, b3}]]

Take three points on a hypersphere:

Wolfram Language code: SeedRandom[123]; {q, p, r} = RandomReal[Pi, {3, 5}]

The result of SphericalAngle can also be computed using VectorAngle:

Wolfram Language code: {cq, cp, cr} = FromPolarCoordinates[Prepend[#, 1]]& /@ {q, p, r};
Wolfram Language code: VectorAngle[cq - cq.cp cp, cr - cr.cp cp] === SphericalAngle[p -> {q, r}]

Possible Issues  (1)

The angle q-p-r is indeterminate when p and q are antipodal:

Wolfram Language code: SphericalAngle[{0, 0} -> {{Pi, 0}, {Pi / 2, Pi / 4}}]
