# BattleLemarieWavelet

represents the BattleLemarié wavelet of order 3.

represents the BattleLemarié wavelet of order n evaluated on equally spaced interval {-10,10}.

BattleLemarieWavelet[n,lim]

represents the BattleLemarié wavelet of order n evaluated on equally spaced interval {-lim,lim}.

# Details • BattleLemarieWavelet defines a family of orthogonal wavelets based on orthonormalization of B-splines of degree n.
• is equivalent to BattleLemarieWavelet[n,10].
• The scaling function ( ) and wavelet function ( ) have infinite support with an exponential decay outside the interval -lim to lim. The functions are continuously differentiable.
• BattleLemarieWavelet can be used with such functions as DiscreteWaveletTransform, WaveletPhi, etc.

# Examples

open allclose all

## Basic Examples(3)

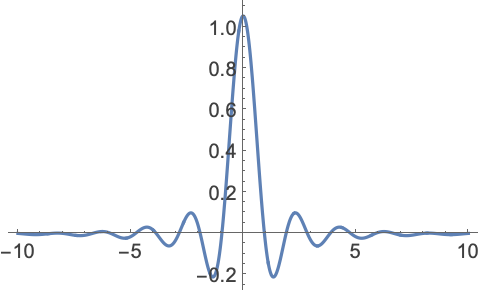

Scaling function:

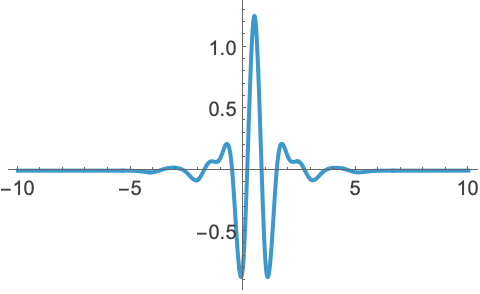

Wavelet function:

Filter coefficients:

## Scope(9)

### Basic Uses(4)

Compute primal lowpass filter coefficients:

Primal highpass filter coefficients:

BattleLemarié scaling function of order 2:

BattleLemarié scaling function of order 5:

BattleLemarié wavelet function of order 2:

BattleLemarié wavelet function of order 5:

### Wavelet Transforms(4)

Compute a DiscreteWaveletTransform:

View the tree of wavelet coefficients:

Get the dimensions of wavelet coefficients:

Plot the wavelet coefficients:

BattleLemarieWavelet can be used to perform a DiscreteWaveletPacketTransform:

View the tree of wavelet coefficients:

Get the dimensions of wavelet coefficients:

Plot the wavelet coefficients:

BattleLemarieWavelet can be used to perform a StationaryWaveletTransform:

View the tree of wavelet coefficients:

Get the dimensions of wavelet coefficients:

Plot the wavelet coefficients:

BattleLemarieWavelet can be used to perform a StationaryWaveletPacketTransform:

View the tree of wavelet coefficients:

Get the dimensions of wavelet coefficients:

Plot the wavelet coefficients:

### Higher Dimensions(1)

Multivariate scaling and wavelet functions are products of univariate ones:

## Properties & Relations(11)

Lowpass filter coefficients approximately sum to unity; :

Highpass filter coefficients approximately sum to zero; :

Scaling function integrates to unity; :

Wavelet function integrates to zero; :

For even order n, scaling function is symmetrical about 1/2:

For even order n, wavelet function is antisymmetrical about 1/2:

For odd order n, scaling function is symmetrical about 0:

For odd order n, wavelet function is symmetrical about 1/2: satisfies the recursion equation :

Plot the components and the sum of the recursion: satisfies the recursion equation :

Plot the components and the sum of the recursion:

Frequency response for is given by :

The filter is a lowpass filter:

Frequency response for is given by :

The filter is a highpass filter:

Fourier transform of is given by :

Fourier transform of is given by :

## Possible Issues(1)

BattleLemarieWavelet is restricted to n less than 15: BattleLemarieWavelet is not defined when n is not a positive machine integer: ## Neat Examples(2)

Plot translates and dilations of scaling function:

Plot translates and dilations of wavelet function:
