DerivativeFilter[data,{n1,n2,…}]

计算 data 在第 i 层的 ni 阶导数.

DerivativeFilter[data,{n1,n2,…},σ]

计算标准差为 σ 的高斯尺度上的导数.

DerivativeFilter[data,{der1,der2,…},…]

计算多个导数 der1、der2、….

更多信息和选项
Details and Options Details and Options
范例
基本范例
范围
数据
参数
选项
InterpolationOrder
Padding
应用
属性和关系
参见
相关指南
历史
按以下格式引用：

DerivativeFilter

DerivativeFilter[data,{n1,n2,…}]

计算 data 在第 i 层的 ni 阶导数.

DerivativeFilter[data,{n1,n2,…},σ]

计算标准差为 σ 的高斯尺度上的导数.

DerivativeFilter[data,{der1,der2,…},…]

计算多个导数 der1、der2、….

更多信息和选项

  • DerivativeFilter 是一个线性滤波器，根据样条插值模型计算数据的导数. 可以使用标准偏差为 σ （默认为 0）的高斯核的正则化来降低对噪声的敏感性.
  • data 可以为以下形式：
  • list任意阶数的数值数组
    tseries时态数据，如 TimeSeries、TemporalData、…
    image任意 Image 或 Image3D 对象
    audioAudio 对象
    videoVideo 对象
  • DerivativeFilter 分别对 data 的每一层进行运算.
  • DerivativeFilter[image,…] 使用数组坐标系统，其中第一个坐标从 image 的顶部到底部，第二个坐标从左到右增加.
  • DerivativeFilter 给出与 data 有同样维度的结果.
  • DerivativeFilter 可以采用下列选项：
  • InterpolationOrder Automatic插值阶数不高于 9
    Padding "Fixed"填充方法
  • 设置为 Padding->{pad1,pad2,…} 时，可以对 data 的不同维度使用不同的填充方案.
  • 导数的阶数必须小于指定的插值阶数.

范例

打开所有单元 关闭所有单元

基本范例  (3)

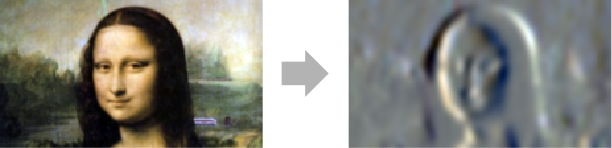

图像的水平导数:

Wolfram Language code: DerivativeFilter[[image], {0, 1}]//ImageAdjust

图像的正则化水平方向上的导数：

Wolfram Language code: DerivativeFilter[[image], {0, 1}, 3]//ImageAdjust

数值列表的导数：

Wolfram Language code: data = PixelValue[[image], {All, 60}]; der = DerivativeFilter[data, {1}];
Wolfram Language code: ListLinePlot[{data, der}, PlotRange -> All]

范围  (13)

数据  (5)

二维数组的一阶导数：

Wolfram Language code: DerivativeFilter[BoxMatrix[1, 5], {1, 1}]//Chop//MatrixForm

获取 TimeSeries 对象的一阶导数：

Wolfram Language code: ts = TemporalData[TimeSeries, {{{-3.47, -0.95, 4.45, 9.11, 14.4, 16.07, 20.16, 18.76, 16.88, 9.88, 4.39, -1.33, -5.41, -4.2, 0.04, 5.73, 11.01, 14.89, 20.36, 18.27, 15.19, 9.74, 6.06, 0.33, -2.74, -1.83, 3.83, 6.68, 12.06, 15.51, 20.64, 19.73, ... 15.41, 19.84, 20.45, 16.79, 9.6, 4.26, -2.3, -1.26, -2.29, -2.08, 7.1, 10.29, 16.92, 19.01, 19.79}}, {{0, 91, 1}}, 1, {"Continuous", 1}, {"Discrete", 1}, 1, {ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, False, 11.2]; filtered = DerivativeFilter[ts, {1}]; ListLinePlot[{ts, filtered}, PlotLegends -> {"original", "filtered"}]

对 Audio 信号进行滤波：

Wolfram Language code: a = Import["ExampleData/rule30.wav", "Audio"]; b = AudioNormalize[DerivativeFilter[a, {1}]]
Wolfram Language code: AudioPlot[{a, b}]

彩色图像在垂直方向上的导数：

Wolfram Language code: DerivativeFilter[[image], {1, 0}]//ImageAdjust

三维图像在垂直方向上的导数：

Wolfram Language code: DerivativeFilter[[image], {1, 0, 0}]

参数  (8)

列表的零阶导数：

Wolfram Language code: DerivativeFilter[{1, 2, -1, 0, 1, 2}, {0}]

阶跃序列的第一、第二和第三阶导数：

Wolfram Language code: step = {0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1};ListLinePlot[DerivativeFilter[step, {{1}, {2}, {3}}], PlotRange -> All, Axes -> {True, False}, Ticks -> False, PlotLegends -> {1, 2, 3}]

图像在垂直方向上的导数：

Wolfram Language code: DerivativeFilter[[image], {1, 0}]//ImageAdjust

水平方向上的导数：

Wolfram Language code: DerivativeFilter[[image], {0, 1}]//ImageAdjust

两个维度上的二阶导数：

Wolfram Language code: 10DerivativeFilter[[image], {2, 2}]

计算图像的几个导数：

Wolfram Language code: ImageAdjust /@ DerivativeFilter[[image], {{1, 0}, {0, 1}, {0, 2}}]

三维图像在垂直方向上的导数：

Wolfram Language code: i = [image]; DerivativeFilter[i, {1, 0, 0}]

水平方向上的导数：

Wolfram Language code: DerivativeFilter[i, {0, 1, 1}]

用高斯平滑来规整导数：

Wolfram Language code: filtered = DerivativeFilter[TemporalData[TimeSeries, {{{0., -0.27267267057145633, -0.6672983789995302, -0.5338541947930846, -0.6117404489279314, -0.6755527076595494, -0.02125421294486496, -0.10792797291843935, -0.6138271235477938, -0.3248568606554575, -0.08843449054 ... 2053424, -0.49980440691873723, -0.5388679788215971, -0.4101602764645551}}, {{0, 1., 0.01}}, 1, {"Continuous", 1}, {"Continuous", 1}, 1, {ValueDimensions -> 1, ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, False, 10.1], {1}, #]& /@ {0, 3}; ListLinePlot[filtered, PlotRange -> All, PlotLegends -> {"σ=0 (default)", "σ=3"}]

不同高斯尺度下水平方向上的导数：

Wolfram Language code: ImageAdjust@DerivativeFilter[[image], {0, 1}, #]& /@ {0, 5, 10}

选项  (3)

InterpolationOrder  (1)

用不同的 InterpolationOrder 值来对数组滤波：

Wolfram Language code: Chop@MatrixForm@DerivativeFilter[ArrayPad[{1}, 5], {1}, InterpolationOrder -> #]& /@ {2, 3}

Padding  (2)

用不同的填充方案进行导数滤波：

Wolfram Language code: v = {1, 2, 3, 2, 2, 1, 2, 1, 0, 0, 0}; pad = {"Fixed", "Periodic", "Reflected"}; ListLinePlot[DerivativeFilter[v, {1}, Padding -> #]& /@ pad, PlotLegends -> pad, PlotRange -> All]

用不同的填充方案对灰度图像进行一阶导数滤波：

Wolfram Language code: ImageAdjust[DerivativeFilter[[image], {1, 1}, 3, Padding -> #]]& /@ {"Fixed", "Periodic", 0.2}

在每个空间方向上使用不同的填充方案：

Wolfram Language code: ImageAdjust[DerivativeFilter[[image], {1, 1}, 3, Padding -> {"Fixed", "Periodic"}]]

应用  (5)

计算图像的梯度：

Wolfram Language code: {Ly, Lx} = DerivativeFilter[[image], {{1, 0}, {0, 1}}]; Sqrt[Lx^2 + Ly^2]//ImageAdjust

计算标度 σ=6 的图像的拉普拉斯：

Wolfram Language code: {Lxx, Lyy} = DerivativeFilter[[image], {{2, 0}, {0, 2}}, 6]; Lxx + Lyy//ColorNegate//ImageAdjust

尺度 σ=2 时的脊探测：

Wolfram Language code: σ = 2; {Lxx, Lxy, Lyy} = DerivativeFilter[[image], {{0, 2}, {1, 1}, {2, 0}}, σ]; (σ^3 / 2/2)(Sqrt[(Lxx - Lyy)^2 + 4Lxy^2] - Lxx - Lyy)//ImageAdjust

T-junction 滤波:

Wolfram Language code: tJunctionFilter[img_, σ_ : 1] := Module[ {data = ImageData[img], Lx, Ly, Lxx, Lxy, Lyy, Lxxx, Lxxy, Lxyy, Lyyy}, {Lx, Ly} = DerivativeFilter[data, {{0, 1}, {1, 0}}, σ]; {Lxx, Lxy, Lyy} = DerivativeFilter[data, {{0, 2}, {1, 1}, {2, 0}}, σ]; {Lxxx, Lxxy, Lxyy, Lyyy} = DerivativeFilter[data, {{0, 3}, {1, 2}, {2, 1}, {3, 0}}, σ]; Image[ Chop[-Lx^5Lxyy + Ly^4(2Lxy^2 - Lxxy Ly + Lxx Lyy) + Lx Ly^3(6Lxx Lxy - Lxxx Ly + 2Lxyy Ly - 6Lxy Lyy) + Lx^3Ly(-6Lxx Lxy - Lxxx Ly + Lxyy Ly + 6Lxy Lyy) + Lx^4(2Lxy^2 + 2Lxxy Ly + Lxx Lyy - Ly Lyyy) + Lx^2Ly^2(3Lxx^2 - 8Lxy^2 + Lxxy Ly - 4Lxx Lyy + 3Lyy^2 - Ly Lyyy)] ] ]; tJunctionFilter[[image], 2]//ImageAdjust

从彩色地图中获取边界：

Wolfram Language code: Norm[DerivativeFilter[[image], {{1, 0}, {0, 1}}]]

属性和关系  (4)

较大的情况下，GaussianFilter 和 DerivativeFilter 的结果收敛：

Wolfram Language code: data = {0, 0, 1, 2, 1, 0, 0, 0, 0, 1, 2, 5, -1, 0, 2, 1}; σ = 0.5; ListLinePlot[ {DerivativeFilter[data, {1}, σ], GaussianFilter[data, σ{3, 1}, {1}]}, PlotRange -> All ]
Wolfram Language code: σ = 1; ListLinePlot[ {DerivativeFilter[data, {1}, σ], GaussianFilter[data, σ{3, 1}, {1}]}, PlotRange -> All ]
Wolfram Language code: σ = 1.5; ListLinePlot[ {DerivativeFilter[data, {1}, σ], GaussianFilter[data, σ{3, 1}, {1}]}, PlotRange -> All ]

DerivativeFilter 和样条插值的相应导数返回相同的值：

Wolfram Language code: data = {0, 0, 0, 0, 0, 0, 0, 0, 0.7, 1, 1, 1, 1, 1, 1, 1, 1};f = ListInterpolation[data, Method -> "Spline", InterpolationOrder -> 3];f'[9]
Wolfram Language code: DerivativeFilter[data, {1}, InterpolationOrder -> 3][[9]]

将滤波器结果绘制在插值函数的导数的上方：

Wolfram Language code: Plot[ Evaluate[Derivative[1][f][x]], {x, 1, Length[data]}, PlotRange -> All, Epilog -> {Red, PointSize[0.025], MapIndexed[Point[{First[#2], #1}]&, DerivativeFilter[data, {1}, InterpolationOrder -> 3]]} ]

二进制图像的导数滤波给出了实数类型的灰度图像：

Wolfram Language code: d = Image[DiskMatrix[10, 81], "Bit"];ImageType[DerivativeFilter[d, {1, 1}]]

DerivativeFilter 是线性滤波器：

Wolfram Language code: list1 = {1, 1, 1, 1, 1, 0, 0, 3, 12, 1, 0, 0, 0, 0, 0}; list2 = {2, 2, 2, 2, 1, 5, 4, 6, 2, 2, 1, 1, 1, 1, 1}; DerivativeFilter[list1 + list2, {1}] == DerivativeFilter[list1, {1}] + DerivativeFilter[list2, {1}]
