TourVideo

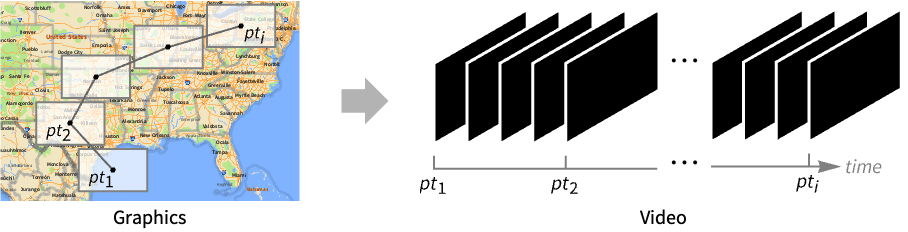

TourVideo[graphics,{pt1,pt2,}]

generates a video by taking a tour at points pti around graphics.

TourVideo[graphics,{step1,step2,}]

uses a more detailed specification at each stepi, including rotation, dwell time and more.

TourVideo[graphics,path]

uses the globally specified path to generate the tour.

Details

  • TourVideo generates a video by navigating around graphics. It can be used to zoom in and out or pan around graphics to explore regions of interest.
  • The input graphics can be any Graphics or Image object.
  • Position specification pti can be either of the following:
  • {x,y}an absolute position in the graphics coordinate system
    Scaled[{x,y}]scaled coordinates from 0 to 1 in each direction
  • Each step of the tour stepi can be an association with the following keys:
  • "Position"the center position of interest
    "DwellTime"the dwell time at a given step
    "Rotation"rotation of the graphics around position
    "Time"time at which the position is visited
    "Width"width of the region of interest
  • The path can be an association with the following keys:
  • "PathPositions"the center positions
    "PathDwellTimes"the dwell times
    "PathRotations"rotations around each position
    "PathTimes"times at each position
    "PathWidths"widths of the regions
  • The path also accepts "PathType" key to control the interpolation scheme between steps. Supported types include:
  • "Constant"jumps from one step to another
    "Linear"linearly interpolates between values (default)
    "Bezier"Bézier interpolation
    {"Hermite",InterpolationOrdern}Hermite interpolation
    {"Spline",InterpolationOrdern}spline interpolation
  • Options to control creation of frames are:
  • AspectRatio9/16aspect ratio to use
    DefaultDurationAutomaticsuggested duration in seconds
  • Options to control properties of the output video are:
  • BitRateAutomaticapproximate bit rate to use
    CompressionLevelAutomaticcompression level to use
    FrameRateAutomaticthe frame rate to use
    GeneratedAssetFormatAutomaticthe format of the result
    GeneratedAssetLocation$GeneratedAssetLocationthe location of the result
    OverwriteTargetFalsewhether to overwrite an existing file
    RasterSizeAutomaticraster size of the output video
    VideoEncodingAutomaticvideo encoding to use

Examples

open allclose all

Basic Examples  (1)

Pan across an image:

Zoom into a part of an image:

Zoom out:

Pan and zoom:

Scope  (4)

Data  (3)

Explore a graphics object:

Explore a fractal mesh:

Zoom in on all the faces in a photo:

Step Specification  (1)

Explore parts of a very large image:

Applications  (1)

Travel around the border of Italy:
