Magnetostatics for Permanent Magnets

ContentsConvergence of Magnetostatics Models
IntroductionBoundary Conditions
Overview ExampleConditions at Material Interfaces
EquationsNomenclature
Secondary QuantitiesReferences

Contents

Introduction

This monograph uses partial differential equations to model and analyze time-independent magnetic fields, which are produced by permanent magnets. In the static regime, the electric and magnetic fields are not coupled, which means that when simulating magnetostatic fields, effects such as induced currents do not exist. See the Electromagnetics Overview for more information.

In this monograph, magnetostatic fields are simulated using the scalar magnetic potential formulation. This formulation is derived from the time-independent Maxwell's equations in combination with constitutive relations that describe the interaction of the magnetic fields with matter. In this formulation, the variable to solve for is the scalar magnetic potential .

The scalar magnetic potential formulation is used exclusively to model permanent magnets and given by:

where is the scalar magnetic potential in units of [], is the vacuum permeability in units of [], and is the magnetization vector in units of []. In this formulation, there are no currents.

Modeling electromagnetic devices with partial differential equations (PDEs) is not the only way to model electromagnetic devices. Other techniques include, for example, setting up ordinary differential equations (ODEs). This approach is followed by the Wolfram System Modeler. Roughly speaking, the system modeler approach is more suitable for large systems of electromagnetic devices interacting, while the partial differential equation approach is more suitable for a fine-grained analysis of a specific device. In some cases, it is beneficial to use a combination of the two approaches.

The approach taken in the introductory section is that a permanent magnet is used to introduce a magnetostatic analysis and show the functionality available. This will be followed by a more theoretical explanation of the underlying ideas and concepts. The theoretical background is much easier to understand once an intuition for the magnetostatic current-free analysis exists. After that, the available boundary conditions are discussed.

The goal of a magnetostatic analysis is to find the scalar potential distribution under specific constraints. A subsequent step then finds secondary fields, such as the magnetic flux density []. The analysis and interpretation of these physical quantities are useful to create a better quality engineering design of the device under consideration.

The modeling process as such results in a system of partial differential equations (PDEs) that can be solved with NDSolve. Extended examples of electromagnetic modeling can be found in the Model Collection.

The electromagnetic device analysis is typically done in stages. First, for the object to be analyzed, a geometric model needs to be created. The geometric model is typically created within a computer-aided design (CAD) process. CAD models can either be imported or created in product. To import geometries, common file formats like DXF, STL or STEP are supported. These geometries can be imported with Import. The alternative is to create the geometrical models in product, for example, by using OpenCascadeLink.

Once the geometric model is made available, some thought needs to be put into what type of analysis is to be performed. The next step is then the setup of boundary conditions and constraints. Materials to be used further specify the PDE model. Once the PDE model is fully specified, the subsequent finite element analysis will then compute the desired quantities of the device under investigation. These quantities are then post-processed, either by visualizing them or by computing derived quantities. This tutorial shows the necessary steps for everything except the CAD model generation.

Electromagnetic devices are typically three-dimensional objects. For the models, special cases exist that result in simplified 2D models. In fact, 2D models have been known to solve 90% of the important problems in electrical engineering [Cardoso, 2018]. 2D models are advantageous, as they are often easier to set up and need less computer time and memory to solve.

The symbols and corresponding units used throughout this tutorial are summarized in the Nomenclature section.

Load the Finite Element package and set the $HistoryLength to 0:

Overview Example

To illustrate the usage of the finite element method in electromagnetics, it is instructive to present a simple example and give an overview of the setup, various analyses and post-processing steps possible.

In this overview example, the workflow of setting up a magnetostatic PDE model is introduced. To keep things simple, a 3D cylindrical permanent magnet is modeled. The cylinder magnet is of height [] and radius []. Also, a sphere of air of radius [] is created that represents the surrounding volume.


Depiction of a cylindrical magnet in gray, embedded in a volume of air in blue.

Creating an electromagnetic model always comprises the same steps:

The first step is to create the geometry.

Set up the magnet geometry:

When modeling a permanent magnet, it is important to consider the surrounding volume. This allows the field extending outward from the device into the surrounding volume to be simulated.

In principal, the surrounding volume should be unbounded. Since an unbounded domain cannot be simulated, exterior boundaries are introduced and are known as artificial boundaries. These artificial boundaries limit the extent of the model to a region of interest. A condition must be applied at these exterior boundaries to obtain a unique solution.

The surrounding volume needs to be sufficiently large compared to the object inside. The reason is to avoid that the boundary conditions applied at the artificial, exterior boundary affect the computations of the field in or on the device.

To decide how large the surrounding sphere must be, it is common practice to perform a convergence test with respect to the size of the surrounding domain. Such a convergence test is carried out in the Convergence of magnetostatic models section but omitted here.

Set up the surrounding sphere geometry:

This concludes the geometry setup. Next, the materials used are considered. To do that, the variables are set up. The dependent variable represents the scalar magnetic potential in the , and directions, respectively.

Set up variables:

The model consists of an air domain and a magnet domain. In the air domain, the magnetization is 0 and in the magnet domain the magnetization is . The different values of the magnetization are expressed through a Piecewise function. A RegionMemberFunction provides the bounds where the magnet magnetization is present.

Define the magnetization vector:

The use of Piecewise allows for an efficient evaluation of the PDE coefficients, and it is discussed in detail in the section Efficient Evaluation of PDE Coefficients of the Finite Element Method Usage Tips tutorial.

At the outer boundary of the surrounding sphere, a condition is set such that the magnetic potential is 0.

Set up the boundary condition:

An easy way to generate a mesh that preserves the internal boundaries of the magnet is to create the RegionDifference of the sphere and magnet but then to request both regions be meshed with "RegionHoles" None.

Create the difference of both regions and create the mesh:
Visualize the mesh:
Set up the magnetostatic PDE component:
Solve the PDE:
Visualize the scalar magnetic potential:

This gives a short overview of the workflow. To keep things simple, the example made use of the function RegionMember. This, however, has as a consequence that when secondary fields are computed, possible discontinuities cannot be resolved properly. The next sections will discuss and address the limitation that comes up when computing discontinuous secondary fields that would be problematic in this case. Once this more elaborate process is established, it can also be applied to the cylindrical magnet example, which is then done in the multimaterial section.

Geometry

The next example shows how to perform a magnetostatic analysis of a horseshoe magnet and a coin in front of it. For this example, a predefined boundary element mesh is loaded.

Import a predefined boundary mesh for a horseshoe permanent magnet:
Visualize the predefined boundary mesh:

The geometric model contains a 1/4 geometry of a horseshoe permanent magnet, a coin in front of it and a bounding box. The reduction to the 1/4 geometry is possible due to the symmetries that the geometry has. One plane of symmetry is the plane and the second plane of symmetry is the plane.

For the actual computation, only the 1/4 geometry will be used, but it is possible to visualize the full geometry.

Create the three remaining 1/4 geometries to create the complete geometry:
Visualize the complete geometry:

The geometry includes two iron regions: one in the horseshoe magnet and the other in the coin. The actual magnet region is located at the tip of the horseshoe magnet, and the surrounding domain consists of air.

One thing to keep in mind is the scale used in the geometric model. If the length of the boundary mesh is, for example, in units of meters, then the material parameters will need to be specified in consistent units. In this specific case, the units of the boundary mesh are in meters.

More information on generating or importing 3D geometric models can be found in the Using OpenCascadeLink tutorial.

Mesh Generation

To perform a finite element analysis, the boundary mesh representation of the geometric model needs to be discretized into a mesh. In this same process, different material regions are specified with element markers.

Specify region markers:
Generate the mesh:
Visualize the parts specified by the markers:
Visualize the coin, magnet and iron regions:

More information about the mesh generation process can be found in the ElementMesh generation tutorial. Another option is to import a mesh generated with third-party software. Some common mesh file formats can be imported with the help of the FEMAddOns.

Material Parameters

The next step is to assign material parameters. Generally, all parameters for electromagnetics models are collected in an Association pars that includes the necessary parameter values.

Create an empty parameter Association pars:

The geometry consists of several regions: two iron regions, a magnet and an air region. Distinct material models must be set up for each of these regions. The iron and air regions use a linear constitutive material model given by:

where is the unitless relative permeability and [] is the vacuum permeability.

A default value [] of the vacuum permeability is used throughout the whole monograph. However, the "VacuumPermeability" parameter can be specified if the constant should have a different value, like 1. This can be useful to scale the equation.

The default "VacuumPermeability" is defined as:

For iron, a relative permeability of 5000 is applied, while for air, a value of 1 is used. The magnet, strictly speaking, does not have a permeability. Instead, it has a magnetization vector , shown later. In the magnet region, a relative permeability of is set up.

To geometrically distinguish between the regions, ElementMarker will be used. This approach is particularly useful for handling more complex geometries. More information about the use of ElementMarker can be found in the ElementMesh generation tutorial.

Set up the relative permeability for the different regions:

Permanent magnets are made of hard ferromagnetic materials, which produce magnetic flux even in the absence of an externally applied field. In this model, a magnetization vector is used to describe the permanent magnet; other ways exist and will be discussed later in the Magnetic materials section.

For the magnet region, the general form of the magnetostatic equation is used:

where is the magnetization vector in units of []. In the magnet region, the magnetization vector is . In the iron and air region, there is no magnetization, and thus the magnetization vector there is .

Set up the magnetization:

The MagnetostaticPDEComponent will generate a single equation that includes both constitutive relations into:

This equation is valid for modeling purposes, provided that the correct parameter values are appropriately assigned to each region. When the MagnetostaticPDEComponent is evaluated with the parameter setup created in this section, the equation is obtained in the magnet region, because here was set. When evaluated in the air/iron region, the equation is obtained, as in the air/iron region the magnetization vector components are set to 0.

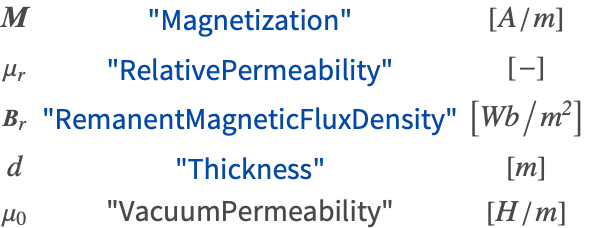

Material parameters where the values are given as Quantity objects can be used. A complete list of property names to specify material properties needed can be found on the reference page of MagnetostaticPDEComponent. Specifying a magnetic material as "Material"->Entity is currently not possible.

Units

Should the units of the geometry be different from the material units, then the material units can be scaled.

Set up material properties and scale the units:

Internally, all material data units are converted to "SIBase" units. As a consequence, the default unit of length is "Meters". If the units of the geometry are also in meters, then nothing needs to be changed. If the units of the geometry are not in meters, then either the PDE and material properties need to be scaled to the units of the geometry or the geometry needs to be scaled to "Meters". To scale the units of the PDE and material parameters, the parameter "ScaleUnits" can be given. If not explicitly stated otherwise, examples in this tutorial use the default "SIBase" units.

More information about the use of units in PDE models can be found in the PDEModels Best Practice tutorial.

Boundary Conditions

Boundary conditions must be defined to fully specify the problem. In essence, this is done by applying a DirichletCondition or NeumannValue at the boundaries, respectively. The various boundary conditions typically used to model magnetostatic devices will be discussed in detail in the section Boundary conditions. The main purpose of this section is to establish the positions where the boundary conditions are to be applied.

In this example, the magnetic field is symmetric with respect to the plane and antisymmetric with respect to the plane. Antisymmetry means that the resulting field has the property , and symmetry means that field has the propriety that . To ensure that the magnetic field has this behavior, boundary conditions that enforce these symmetries are applied at these planes.

At the antisymmetry plane, , the magnetic field is perpendicular to the boundary. To force the magnetic field to be perpendicular to the boundary, a zero magnetic scalar potential condition needs to be applied. This is essentially a DirichletCondition type condition that sets the scalar magnetic potential at the boundary to a specific value. A way to find the positions where the boundary conditions are applied is to visualize them together with the outline of the geometry defined above.

Define the antisymmetry plane:
Visualize the plane at which the scalar magnetic potential needs to be set:

The zero magnetic scalar potential condition will be applied at the antisymmetry plane .

At the symmetry plane, , the magnetic field is tangential to the boundary, which can be achieved by using a magnetic insulation boundary condition, equivalent to a zero Neumann value.

If no boundary condition is applied on any part of the boundary, then the default zero Neumann condition is used. This means that to obtain the effect of a magnetic insulation boundary condition, nothing needs to be done because it happens automatically.

Define the symmetry plane:
Visualize the symmetry plane where a zero NeumannValue is applied:

The remaining surfaces represent exterior boundaries of the surrounding box. At these boundaries, zero NeumannValue values are also applied. These could also be omitted, as they are automatically satisfied.

Define the remaining bounding box:
Establish the symmetry planes where a zero NeumannValue is applied:

For more complicated geometries, a different technique to specify where boundary condition apply may be more appropriate and is shown in the Markers section of the element mesh generation tutorial.

Magnetostatic Analysis

In a magnetostatic analysis, the primary objective is to determine the magnetic scalar potential distribution, , and, as secondary derived quantities, the magnetic flux density in units of [] and the magnetic field intensity in units of [].

Set up the variables:
Set up the magnetostatic current-free PDE component:

Note how the equation is obtained when the equation is evaluated in the magnet region. When it is evaluated in the air/iron region, the equation is obtained, as explained in detail in the Materials parameters section.

Next, a zero magnetic scalar potential will be applied at . At the exterior boundary, this will ensure that the magnetic field lines will be perpendicular to the boundary, an antisymmetric behavior. A MagneticPotentialCondition is equivalent to specifying a DirichletCondition.

Set up a zero potential at :

The remaining boundary conditions are NeumannValue zero boundary conditions and can be omitted.

Solve the PDE:

The result is an InterpolatingFunction object, which gives the magnetic scalar potential distribution .

More information about the solution process and its options can be found in the NDSolve Options for Finite Elements tutorial.

Post-processing

The primary solution of the magnetostatic PDE model is the magnetic scalar potential .

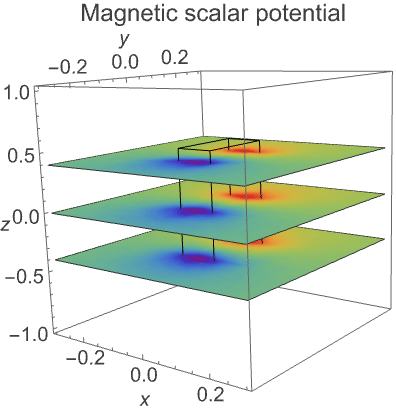

Visualize the magnetic scalar potential at the plane :

The magnetic scalar potential lacks a physical meaning. What is, however, of interest is the magnetic field intensity and the magnetic flux density , and these fields are recovered from the scalar potential .

Both the magnetic field intensity and the magnetic flux density can be discontinuous at the material interface. More information about these conditions can be found in the section Conditions at material interfaces. To address these discontinuities, a DiscontinuousInterpolatingFunction or EvaluateOnElementMesh is used. This process will be shown next.

First, convert the magnetic scalar potential function to a DiscontinuousInterpolatingFunction.

Convert to a discontinuous interpolating function:

The magnetic field intensity is the gradient of the magnetic scalar potential and will be computed in a second step.

Compute the magnetic field intensity :

For a three-dimensional model, the -field computed with the function Grad returns a list of three DiscontinuousInterpolatingFunction with the three independent variables , and each.

Note that when the field is evaluated exactly at the discontinuity, the returned value will be the value of iron. In some cases, it may be preferable to obtain the value of air. The behavior of which subdomain takes precedence can be controlled. DiscontinuousInterpolatingFunction or EvaluateOnElementMesh functions will prioritize a value from one of the subdomains. More details about how to model multimaterial models can be found in the Multimaterial section.

Evaluate the magnetic field intensity at a specific coordinate :

Various components of the magnetic field can be accessed by using Part.

Extract the component of the electric field:

The magnetization vector and the relative permeability are Piecewise functions in this case, resulting in a discontinuity at the material boundary. EvaluateOnElementMesh can be used to create a DiscontinuousInterpolatingFunction from them.

Extract the magnetization from the parameters:
Extract the relative permeability:
Inspect the value of :
Compute the magnetic flux density :
Add the spatial variables to the magnetic flux density :
Visualize the vector field at :

To visualize the antisymmetric 1/4 of the field, the antisymmetric behavior of the field must be considered. At positive values, the field is and for , the field is .

Create the remaining 1/4 geometries to create the complete geometry:
Visualize the complete antisymmetric vector field at in the complete geometry:

A DensityPlot is used to visualize the magnetic flux density at the plane .

Plot the magnitude of the magnetic flux:

Note the discontinuity in the magnetic flux density between the interface of the entire magnet and the air region.

This same workflow can be applied to any type of geometry.

Remember that the magnetic scalar potential can only be used in models where no current is present. Otherwise, the magnetic vector potential, , must be used.

Equations

Overview

This section gives an introduction on creating magnetostatics partial differential equation models. Generally speaking, magnetostatics is the subfield of electromagnetics that deals with magnetic fields produced either by direct currents (DC) in a conductor or, alternatively, by permanent magnets.

In magnetostatics, two different formulations, derived from Maxwell's equations, are used for modeling magnetostatic fields. The first uses a scalar magnetic potential , and the second makes use of the vector magnetic potential . In this monograph, only the scalar magnetic potential formulation is addressed. The scalar magnetic potential is mainly used to model permanent magnets.

Starting with an explanation of Maxwell's equations used for magnetostatics, a derivation of the scalar magnetic potential equation, the formulation for short, is given. That is followed by an introduction of the constitutive relations that explain how the magnetic field interacts with matter.

The most general form of the equation of the scalar magnetic potential formulation is:

The dependent variable in this equation is the scalar magnetic potential in units of [], which varies with position . The equation is made up of a diffusive term with the vacuum permeability [] as the diffusion coefficient. A second term is the derivative term , in which the variable [] is the magnetization vector. The formulation is used in 2D, 2D axis symmetric and 3D geometries; 1D cases cannot be modeled with this equation.

Note that this equation does not have a source term; in other words, it is set to 0, which means that the equation cannot be used if currents are present. Since the formulation is used only in static cases and when the model or device is free of currents, it usually used to model permanent magnets. In other cases, when sources are present, the vector magnetic potential formulation should be used.

From Maxwell's Equations to the Scalar Potential Magnetostatic Equation

The derivation of the magnetostatic equation starts from Maxwell's equations:

where is the gradient operator, is the dot product and is the cross product. All vector-valued quantities are bold. [] and [] are the electric and magnetic field intensities, respectively. [] is the electric flux density, and [][] is the magnetic flux density, sometimes also called magnetic induction. Flux density refers to the flow though an area. [] is the electric current flux density, commonly called electric current density, and [] is electric charge density, and they represent sources of a magnetic and an electric field, respectively. SI units are used throughout the tutorial.

In the static regime, time variations of quantities become zero (). So, Maxwell's equations can be written in the following form:

A direct consequence of neglecting the time-derivative terms is that the electric and magnetic fields are no longer coupled. The static regime also implies that any time-dependent effects such as inductive effects need not be considered.

As Maxwell's equations are no longer coupled, it is possible to solve solely for the electric or magnetic field. This means there are two sets of equations: one describing the electrostatic case and the other describing the magnetostatic case.

The magnetostatic case consists of the following equations:

These equations, and the corresponding constitutive relation for and , describe magnetostatic phenomena [Ida & Bastos, 2013].

Ampere's law helps to understand how a current density vector generates a rotating magnetic field. For example, if a current is flowing through a straight wire, this will generate circular loops of magnetic fields around the wire.

The second equation, the Gauss law of magnetism , says that the magnetic flux is conservative and thus, a magnetic flux will not have a source or a sink. In other words, there are no isolated magnetic charges that produce magnetic fields.

Finally, it is important to note that although Faraday's law will not be used to derive the equation, it still provides valuable insights. Faraday's law indicates that in a magnetostatic situation, electric fields are not generated by time-varying magnetic fields. However, the fact that the curl is zero does not imply that the electric field is zero in a magnetostatic case [Ida & Bastos, 2013], as an external electric field can always exist but it will not affect a magnetostatic model.

These reduced versions of Maxwell's equations together with the corresponding constitutive equations will help to derive the potential and the equation needed to model static magnetic fields free of currents.

The magnetostatic equation is:

The exact derivation of the equation in terms of will be shown in the subsequent sections.

Magnetic Materials

The next question to answer is how a material interacts with an external magnetic field. Also of interest is how it is possible that permanent magnets can generate and maintain their own magnetic fields without the need of an electric current.

The way to describe and understand how a material interacts magnetically is through the magnetization vector []. The magnetization vector is a vector field that expresses the density of permanent or induced magnetic dipole moments in a material. Magnetic dipoles are the origin of the magnetic properties of a material. The magnetization vector describes how a material responds to an applied magnetic field as well as the way the material changes the field.

On a quantum level of a material, magnetic dipole moments originate from both the movement of electrons orbiting around nuclei in atoms and the spin of electrons. A net magnetization occurs when an external magnetic field is applied and the magnetic moments align with the field. Otherwise, the net magnetic moment will be zero, due to the random orientation of the magnetic dipoles.

Magnetic dipole moment in a volume represented by small magnets. On the left: No external magnetic field is applied. On the right: An external magnetic field is applied and the magnetic moments align with the field [Domke, 2011].

Faraday's law says that magnetic fields are generated by electric currents flowing through a conductor. Similarly, in magnetic materials, the magnetic fields arise from the collective behavior of magnetic dipole moments per unit volume. This collective behavior can be described as a bound current, which generates a magnetization vector, . Just as Faraday's law explains how electric currents create magnetic fields, , the bound current in magnetic materials produces the magnetization vector :

where is the bound volume current density. A bound current refers to a type of current that arises within materials, particularly in magnetized materials, due to the alignment of magnetic dipoles. It is important to distinguish a current from a free current. Bound currents are associated with molecular or atomic magnetic moments, including the spin of electrons. These type of currents are called "bound" because they are tied to the positions of the atoms or molecules within the material.

On the other hand, free currents are just conduction currents that follow Ohm's law.

In free space, , the following equation is used:

or equivalently:

On the contrary, in a material medium where , will have a contribution from both the conduction current and the bound current :

Expressing in terms of , through Eqn. 1. Then Eqn.2 becomes:

which can be rearranged as:

Comparing Eqn. 3 with Eqn. 4, the following definition for is deduced:

and by rearranging this equation, the constitutive relation of with is obtained:

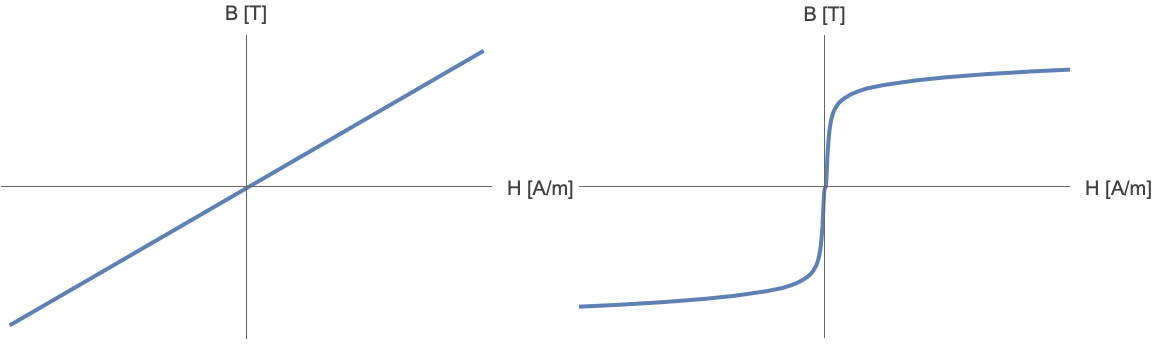

This constitutive relation holds for all magnetic materials whether they are linear or not.

Alternatively, a magnetic polarization can be defined, such that . The relation between the magnetic polarization and the magnetization vector is then given by . This relation is also valid for both linear and nonlinear materials.

Now that the constitutive relations have been defined, the derivation of the magnetostatic equation can follow.

Scalar potential formulation

The equation used in the formulation is derived from Gauss's law for magnetics:

but expressed in terms of the magnetic scalar potential and including material properties.

First, the constitutive relation of and is substituted into Eqn. 5:

When there are no free currents, which means that , and under static conditions, it is possible to define a magnetic scalar potential much like the scalar electric potential . So, under the condition that , Ampere's law becomes:

This setting is done because generally speaking, for fields the following equation can be deduced:

which states that the curl of the gradient of any scalar function is zero. Thus, comparing Eqn. 6 with Faraday's law (), it is deduced that can be represented as the gradient of a function :

This leads to:

The negative sign is added to correctly describe the direction of the magnetic field in relation to the magnetic scalar potential . Just as points in the direction of decreasing electric potential, points in the direction of decreasing magnetic scalar potential.

Now that the magnetic scalar potential has been defined, the final version of the magnetostatic equation can be obtained by substituting it in Eqn. 7:

Linear magnetic materials

For linear materials, depends linearly on such that:

where is a dimensionless quantity called magnetic susceptibility that measures how susceptible a material is to a magnetic field.

Substituting Eqn. 8 into yields the linear constitutive relation for magnetic materials:

where the unitless is the relative permeability given by:

where is the absolute permeability in units of [].

The relative permeability can depend on the space coordinates and vary in the region considered, i.e. an inhomogeneous material, or vary with direction, i.e. an anisotropic material.

Next, the linear constitutive relation (Eqn. 9) is substituted into Gauss' law for magnetics:

Then, by substituting (Eqn. 10), the linear equation is obtained:

Both Eqns. 11 and 12 can be expressed through the MagnetostaticPDEComponent, as shown in the Model setup and Modeling magnetic materials sections.

Anisotropic materials

For anisotropic materials, like crystals, the relative permeability is a tensor. In the 3D case, the tensor has nine components:

where is the relative permeability tensor. and are called the principal relative permeability coefficients and off-diagonal permeability coefficients, respectively.

Classification of Magnetic Materials

In general, the relative permeability or the magnetic susceptibility are used to classify materials depending on their response to external magnetic fields. There are basically two types of magnetic materials:

A material is said to be nonmagnetic if or , such as free space or air.

Next, a detailed description of soft and hard magnetic materials is provided to better understand their differences, including how their values of vary in each case.

First, soft diamagnetic and paramagnetic materials will be described, then ferromagnetic materials, which include soft and hard ferromagnetic materials.

Soft magnetic materials—Diamagnetic and paramagnetic materials
Diamagnetic materials

Diamagnetic materials have a relative permeability slightly lower than one, , or a magnetic susceptibility lower than zero, . The phenomenon of diamagnetism arises from the orbital angular momentum of electrons [Purcell, 2013]. These types of materials are slightly repelled by magnets, and this is because the diamagnetic moment points antiparallel to the external magnetic field. That is to say, is negative.

Diamagnetism is a property of every atom and molecule, but often is outweighed by a different and stronger effect. A common diamagnetic material is copper, which has a relative permeability of 0.999991. Other diamagnetic materials possess a of the same order of magnitude. So, for most practical cases, it is assumed that for diamagnetic materials.

Paramagnetic materials

Paramagnetic materials have a relative permeability slightly larger than one, , or a magnetic susceptibility higher than zero, . The phenomenon of paramagnetism arises from the spin angular momentum of electrons [Purcell, 2013]. These types of materials are slightly attracted by magnets, and this is because the diamagnetic moment points parallel to the external magnetic field. That is to say, is positive.

The effect due to paramagnetism is negligible. A common diamagnetic material is aluminum, which has a relative permeability 0f 1.00000036. Therefore, as with diamagnetic materials, it is assumed that for paramagnetic materials.

Ferromagnetic materials

The most commonly known ferromagnetic material is iron. Ferromagnetic materials are of great importance in electromagnetic devices. This is mainly because ferromagnetic material have a relative permeability much larger than one, , or a magnetic susceptibility much higher than zero, . Iron, for example, can have a relative permeability in the order of .

A ferromagnetic material like iron is composed of different domains where the spins are aligned, forming little pockets of magnetic domains all over the material. These magnetic pockets, when aligned, are what give ferromagnetic materials their strong magnetic properties. In essence, ferromagnetism arises from the spin angular momentum of electrons, but in a stronger manner than in paramagnetic materials. A deeper insight can be gained from a quantum mechanics perspective, which is omitted here. The interested reader is referred to [Purcell, 2013].

Apart from having a great relative permeability and being strongly attracted by magnets, ferromagnetic materials are also capable of conserving a magnetic moment in the absence of an external magnetic field. They retain their magnetization even after the external field has been removed.

Another characteristic of ferromagnetic materials is that the relative permeability depends on the magnitude of the magnetic field, so even though holds, the linear constitutive relation, , no longer holds for ferromagnetic materials because of their nonlinear behavior. In addition to that, is dependent on .

For details on how to model these nonlinearities, see the Modeling magnetic materials section.

Ferromagnetic materials show a second nonlinear behavior, which is in the relationship between and : The process of magnetization and demagnetization of ferromagnetic materials depends on the history of previous magnetizations. So in order to know how the material will behave, one needs to know in which state it was previously. As a consequence, the process of magnetization and demagnetization is not reversible along the same path. This nonlinear behavior is called hysteresis.

Due to hysteresis, the path followed when increasing the magnetic field is different from the path followed when decreasing it. This irreversibility indicates energy loss in the form of heat within each cycle of magnetization and demagnetization.

For ferromagnetic material, the only way to represent the relationship between and is through a magnetization curve called a - curve.

Next, a closer examination of a - curve and an explanation of the hysteresis effect will follow. A typical - curve is shown below, accompanied by a material block where the blue arrows represent the magnetic domains of the material [Blinder, 2011].

Interactive graph of a - curve and below, a ferromagnetic visualization that shows how the magnetic domains behave according to the blue dot located on the - curve. The purple, yellow and red dots show the location of the saturation field , the coercivity field and the remanence field , respectively.

The interactive visualization shows a complete magnetization and demagnetization cycle of a ferromagnetic material.

When describing a - curve, the focus is on the relationship between the magnitudes of these quantities, and therefore the bold vector notation is not used here, as the quantities in the - curve are referred to as scalar rather than vector quantities.

The description of the process of magnetization begins from the origin, that is to say, the material starts in a completely demagnetized state. There is no external magnetic field and the magnetic flux density is also zero . In this demagnetized state, the magnetic domains are oriented randomly. To align the domains, an external magnetic field intensity must be applied to the material by increasing . The domains will begin to align themselves in the direction of the magnetic field and the material will become magnetized, acquiring a magnetization , and start to produce a magnetic flux density .

As is increased further, a point is reached where the material becomes saturated. Now all domains are aligned in the same direction. At this point, shown in purple, the saturation value, of the magnetic flux is reached. The material is now fully magnetized and the magnetization remains constant beyond that.

To demagnetize the material, a magnetic field in the opposite direction must be applied. When is reduced to zero, the flux density is not reduced to zero because some of the magnetic domains will resist changing the applied field. At , reaches a value of , known as the remanent magnetic flux density, shown in red. The fact that the material remains magnetized without an external field is the characteristic behavior of ferromagnetic materials. The effect is due to the resistance of the magnetic domains to align to the magnetic field applied in the opposite direction.

If the blue dot is placed at , it can be seen that the domains will not be perfectly aligned. As a consequence, the magnetic flux density will lag behind the changes in . This lagging is what is known as hysteresis.

If is increased further in the opposite direction, eventually a point is reached where the material becomes completely demagnetized, with . The value of to achieve this is named the coercive field intensity , shown in yellow.

By further increasing the value of in the negative direction, another saturation point is reached. Continuing to increase in the reverse direction returns to the previous saturation point, forming a closed curve called a hysteresis loop.

The - curve, and in consequence the area enclosed by the curve, varies from one material to another. This area enclosed by the curve gives the energy loss per unit volume during one cycle.

At any point on the curve , is given by the ratio /, and by knowing and , one easily can get a value for .

Ferromagnetic materials are also temperature dependent, so when heated above a specific value, they lose their magnetic properties. This critical temperature value is known as the Curie temperature.

It is important to note that the curve starting from the origin, known as the initial magnetization curve, will never be reproduced again unless the material is heated above its Curie temperature.

Last, the - curve of a material allows one to identify if the material is a soft or hard ferromagnetic. This is shown in the following subsections.

Soft ferromagnetic materials

Soft ferromagnetic materials are materials that when an external magnetic field is no longer applied to them, do not retain a significant remanent flux density . They are characterized by having a low retentivity and they are typically used in electromagnets.

A soft ferromagnetic material will have a relatively small area under the - due to their low and values. The most common example of a soft ferromagnetic material is iron.

Hard ferromagnetic materials: Permanent magnets

Hard magnetic materials are materials that have a high retentivity, meaning that they retain a significant remanent magnetic flux . These hard magnetic materials are called permanent magnets. Permanent magnets also have a high coercivity, meaning they have high values and are hard to demagnetize. This values correlate to the much larger area under their - curve.

Coercivity is defined as the intensity of the applied magnetic field required to reduce the magnetization of a material to zero after the material has been magnetized to saturation.

The section on modeling magnetic materials will examine the different approaches to modeling ferromagnetic materials. The most common example of a hard ferromagnetic material is the alloy of neodymium, iron and boron (NdFeB).

Model Setup

The formulation equations used in this monograph can be generated by MagnetostaticPDEComponent. The most general magnetic scalar potential equation is given by:

The formulation works for stationary analysis and can be solved for 2D, 2D axisymmetric and 3D models but not for 1D.

To specify a PDE model, model variables vars and parameters pars need to be set up. Stationary variables are specified as , where the dependent variable is the magnetic scalar potential in units of [] and the {x,y,…} are the independent spatial variables in units of [].

The following is a list of possible parameters pars that can be specified for a steady magnetostatic model free of currents:

Set up a symbolic 2D linear magnetostatic model:

Note that this model definition uses inactive PDE operators. "Numerical Solution of Partial Differential Equations" has several sections that explain the use of inactive operators.

In a magnetostatic analysis of permanent magnets, time and frequency studies are not relevant or useful.

The use of "Magnetization", "RelativePermeability" and "RemanentMagneticFluxDensity" is shown in the Modeling magnetic materials section.

2D models

When the magnetic scalar potential varies in, say, the and directions and is constant in the third direction, say the direction, a 3D model can be modeled as a 2D model in the - plane.

A 2D model has the advantage that the computational cost in both CPU time and machine memory is much less than in the case of solving a full 3D model.

These types of symmetries are seen frequently in rotating electric machines, in which the field distribution is repeated in planes parallel to the cross section of the electric machine [Cardoso, 2018].


The image shows a rectangular magnet. The magnetic scalar potential is visualized in slices. It can be seen from the slices that the magnetic scalar potential does not vary with respect to the direction within the magnet. It is thus possible to model the domain in the - plane only by making the implicit assumption that the bar magnet is infinitely long along the axis.

With this symmetry, the following equation is solved:

where [] is a thickness variable denoting thickness of the device in the direction.

Set up a linear 2D stationary model with a thickness :

The default value for the thickness is .

To show a 2D example, a permanent magnet is modeled through its rectangular cross section. Basically, the 3D cuboid is cut at, for example, . The magnet is also magnetized transversely in the direction of the axis. A zero magnetic scalar potential is used at the exterior boundaries of the surrounding volume to enclose the field.

Define the bar magnet and the surrounding volume:
Make a region difference:
Define the region markers:
Build the mesh and visualize the mesh:

Since in the default case the element size is roughly the same as the magnet, the magnet region shown in red was refined to get a better accuracy in the solution.

Define vars of the model:

The magnet will have a magnetization in the direction with a value of 4000. The air region will have a magnetization of zero.

Define the magnetization:
Define the PDE:
Define the zero magnetic scalar potential at the exterior boundaries:
Solve the PDE:
Convert the solution to a DiscontinuousInterpolatingFunction:
Visualize the magnetic scalar potential with the magnetic field :

2D axisymmetric

An axisymmetric simulation can be performed when a 3D solid has an axis of revolution. An axisymmetric model uses a truncated cylindrical coordinate system in 2D with independent variables instead of the cylindrical coordinates . The cylindrical coordinate variable disappears because the system is rotationally symmetric about the axis.

The 2D magnetostatic axisymmetric equation for for linear materials is given as:

An axisymmetric model has the advantage that the computational cost in both CPU time and machine memory is much less than in the case of solving a full 3D model.

The MagnetostaticPDEComponent function can produce the axisymmetric form of the magnetostatic equation. To do so, the parameter "RegionSymmetry" is set to "Axisymmetric".

Set up a 2D axisymmetric magnetostatic model:

A 2D axisymmetric model can also be generated when using other constitutive relations.

In the next example, the cylinder magnet of the overview example will be modeled with a 2D axisymmetric approximation. The geometry will consist of a rectangle and a semicircle.

Define the geometric parameters:
Define the air half-disk:
Define the magnet region:
Make an Inactive union of both regions:

Inactive is used to preserve the internal boundaries.

Element markers will be used here to attribute different material properties to the subdomains.

Define the region markers:
Build the element mesh:

The mesh is refined in the magnet region, because in the default case, the size of the surrounding elements is roughly the same size as the magnet, and that is too little to accurately resolve that part of the geometry. Also, the mesh is created with an accuracy goal slightly higher than the default to get an accurate solution of the boundary.

Visualize the mesh:
Define variables:
Define the parameters of the model:
Define the magnetostatic equation:
Set up a zero magnetic scalar potential at the exterior boundaries:
Solve the PDE:
Compute the field
Visualize the field:

Modeling Magnetic Materials

There are many different ways to represent the behavior of a magnetic material. The choice of which model or constitutive relation to use depends on how much of the material's characteristics is intended to be incorporated.

There are basically two types of magnetic materials that can be modeled:

The next sections explain in detail how to model soft and hard magnetic materials using MagnetostaticPDEComponent and its different parameters inputs.

The use of a full - curve with hysteresis is not really needed in many cases. The following sections show how to model magnetic material if hysteresis is not to be considered. This will be appropriate in many, if not most cases. This will significantly simplify the models.

Soft magnetic materials

Diamagnetic and paramagnetic materials

For soft magnetic materials like diamagnetic or paramagnetic materials, one can often simply use a relative permeability to describe the material.

A linear relationship between and , given by .

Set up a 3D symbolic magnetostatic model with a constant relative permeability :
Soft ferromagnetic materials

For soft ferromagnetic materials, one can often simply use a relative permeability to describe the material or use a nonlinear , which can often be obtained from a simplified - curve.

The constant relative permeability is used in soft iron if the fields are small, and a nonlinear is typically used to include the effect of magnetic saturation in soft ferromagnetic materials.

The figures below illustrate the types of simplified - curves that are used to model soft ferromagnetic materials. Since a soft ferromagnetic material does not exhibit a big hysteresis, the - curves used can be simpler than the ones presented in the Ferromagnetic materials section.


On the left: a linear relationship between and , given by . On the right: a nonlinear relationship between and , given by .

Set up a 3D symbolic magnetostatic model with a relative permeability as a function of the magnitude of a magnetic flux density :

In the Solving Partial Differential Equations with Finite Elements monograph, a motor model is shown that uses a nonlinear relative permeability obtained from a -.

Hard ferromagnetic materials: Permanent magnets

In the following section, constitutive relations for permanent magnets are described, including:

The following sections show how to model hard ferromagnetic material if hysteresis is not to be considered. This will be appropriate in many, if not most cases.

The rare case where a full - curve with hysteresis needs to be considered can be handled through the Jiles–Artherton model but is not considered here. Details on this model can be found in [Kumar & Tummuru, 2016].

Magnetization

A conceptually simple approach to modeling permanent magnets is to describe the magnet though a magnetization vector according to the following equation:

This constitutive relation is used to describe rare earth permanent magnets that are already magnetized and that remain in this state. The overview example made use of this model for a cylindrical magnet.

In the figure below, the - behavior is illustrated by , where is the offset of the line and the slope is .

Simple - behavior given by used for hard ferromagnetic materials.

Set up a 3D symbolic magnetostatic model with magnetization :
Remanent magnetic flux density

An alternative constitutive relation used to model permanent magnets is the remanent magnetic flux density. In general, manufacturers of permanent magnets provide magnetic characteristics in the form of a demagnetization curve, which is the second quadrant of the - plane. These curves indicate the remanent flux density , the coercive field intensity , and generally describe the way in which and vary in the second quadrant. Permanent magnets, such as neodymium-iron-boron (NdFeB), exhibit an almost linear demagnetization curve like the one shown in the following graphic:

Simple - behavior given by used for hard ferromagnetic materials.

This constitutive law follows:

where is the remanent flux density in units of [] and is the unitless recoil permeability. Compared to the magnetization approach, this relation improves the modeled quality by the effect of demagnetizing caused by an externally applied field in the opposite direction to .

The recoil permeability is given by the ratio /. The value of given by manufacturers is actually the remanent flux density norm. To get the vector, the given value of is multiplied with a normalized direction field .

Using Eqn. 13 turns the magnetic scalar potential equation into:

Set up a symbolic 3D magnetostatic equation with a remanent magnetic flux :

In the next example, the same cylindrical magnet of the overview example is modeled, but here the magnet material will be expressed differently. In this case, the remanent magnetic flux density with a recoil permeability will be used. The magnet is made of the alloy neodymium-iron-boron (NdFeB).

Set up the magnet geometry:
Set up the surrounding sphere geometry:
Set up variables:
Specify the region markers:
Generate the mesh:

For NdFeB materials, the remanent magnetic flux has a magnitude of [] and a recoil permeability of 1.05.

Define the parameters of the model:
Set up the boundary condition:
Set up the magnetostatic PDE component:
Solve the PDE:
Visualize the magnetic scalar potential:
Get the minimum and maximum values:

The values of the magnetic scalar potential are very similar to the ones from the overview example. The overview example has minimum and maximum values of and .

Modeling Anisotropic Materials

For anisotropic material, like crystals, the relative permeability is a 2-tensor. In the 3D case, the tensor has nine components:

where is the relative permeability tensor. and are called the principal relative permeability coefficients and off-diagonal permeability coefficients, respectively.

Define the relative permeability tensor:
Define a 3D model with an anisotropic relative permeability with the formulation:

Anisotropic materials are found in advanced composite materials, magnetic recording media and certain types of sensors. These materials are used in fields like geophysics, material science and electrical engineering [Gutfleisch et al., 2011].

Multiple Materials

In magnetostatic models, the simulation domain always consists of multiple materials, primarily because it is necessary to account for the surrounding volume of a magnetic device. The overview example showed a first approach for simulating multimaterial regions, in which a cylindrical permanent magnet and its surrounding were modeled.

Depiction of a 3D cylinder magnet in gray and a sphere region of air surrounding the magnet, in blue.

In this section, the same model will be simulated, focusing on more specific details about the material interfaces.

First, the geometry is constructed.

Define the height [] and radius []:
Define the radius of the sphere:
Define the magnet:
Define the air region:
Create the difference of both regions:

In the overview example, to keep things simple, the example made use of the function RegionMember. This, however, had as a consequence that when secondary fields are computed, possible discontinuities cannot be resolved properly. A better way to do it is to use region markers for the specification of the different materials of the model and then use the function DiscontinuousInterpolatingFunction, as is done here.

Specify the region markers:
Generate the mesh:
Visualize the mesh:

Then, variables and parameters of the model are specified.

Define variables of the model:
Set up the component of the magnetization vector:
Set up the magnetization vector:

The use of Piecewise allows an efficient evaluation of the PDE coefficients, and it is discussed in detail in the section Efficient Evaluation of PDE Coefficients of the Finite Element Method Usage Tips tutorial.

Define model parameters:
Set up the magnetostatic current-free PDE component:

Finally, the boundary conditions are defined and the PDE model is solved.

Set up a zero potential at the outer boundaries:
Solve the PDE:

Now, you can proceed to study the material interfaces and their impact on the fields. When computing the magnetic flux density or the magnetic field intensity , it is crucial to consider that at interfaces between materials, the fields can exhibit discontinuities. More information about these conditions can be found in the section on Conditions at material interfaces. Exploring how to handle these discontinuous interfaces is essential.

In this example, will exhibit a discontinuity at the interface where .

Compute the magnetic flux density:
Visualize the field discontinuity cross the material interface:

The previous plot shows the discontinuity across the material interface at . The values observed are from the left and from the right simultaneously.

Visualize the values of the field along the material interface:

Note that when using InterpolatingFunction, there is no control over what the value of the field at the interface is, which can be seen by the jiggled plot line. When evaluating an InterpolatingFunction at the material interface, it is somewhat random if the value of the one material subregion or the other subregion is given.

To address this issue, a DiscontinuousInterpolatingFunction is employed. This process will be shown next.

First, the electric potential function is converted to a DiscontinuousInterpolatingFunction.

Convert the electric potential interpolating function to a discontinuous interpolating function:

The magnetic field intensity will then be computed in a second step.

Compute the magnetic field intensity:
Visualize the values of the field along the material interface:

The plot no longer shows random values from one of the material subregions. The plot shows only values that belong to the magnet subregion.

The remaining discontinuities observed in the plot are of a different nature. These arise when taking the derivative of the primary unknown variable, in this case. Such secondary values can exhibit discontinuities at the element boundaries. While these discontinuities are unavoidable, they can be reduced by refining the mesh. For more details, refer to the Discontinuity of Secondary Unknown Quantities section in the PDE Models Best Practices tutorial.

Compute the value at the interface:

Note that the value that is returned at the discontinuity is the value of the magnet. The behavior of what takes precedence over what can be controlled. The DiscontinuousInterpolatingFunction function will prioritize a value from one of the subregions. The default is based on the order of material markers.

Inspect the "MeshElementMarkerUnion":
Inspect the region markers:

In this case, the default prioritization favors the magnet region, because the default chooses whatever region is first in the "MeshElementMarkerUnion" list. To demonstrate the usage of marker prioritization, gradients will be recalculated with a priority that favors the air region over the magnet region.

Compute the electric field, now prioritizing the iron region:
Compare the value to the value above.

With this technique, precise control is exerted over which material subregion takes precedence. The fact that DiscontinuousInterpolatingFunction prioritizes the subregions based on markers also explains why an element mesh with markers is needed. In the overview example, no marker mesh was created for simplicity, and without the use of DiscontinuousInterpolatingFunction, the computation of the secondary quantities would not be accurate at the material interfaces. DiscontinuousInterpolatingFunction is very useful to compute values at the interface between two distinct materials, which can then be used in plots or as arguments for further computations.

Secondary Quantities

Once the simulation is completed, the solution for the dependent variables is obtained. Often, there is interest in quantities derived from the primary dependent variable. These derived quantities are called secondary quantities. Secondary quantities provide a deeper understanding of the model and include quantities like fields, forces, energy and energy-related parameters.

Fields

In magnetostatics, there are two different fields that can be computed from the magnetic scalar potential , the magnetic field intensity and the magnetic flux density .

The magnetic field intensity is computed with the following equation:

The equation to use for computing the magnetic flux density will depend on the constitutive relations used. In the case of a linear material, is computed with the following equation:

The accurate computation of magnetic fields and in permanent magnets is essential for the design, analysis and optimization of a wide range of electromagnetic devices and systems.

Energy

The magnetostatic energy is the energy that is stored in a magnetic field. For linear materials, the magnetostatic energy can be expressed by the following equation:

where the magnetostatic energy density is:

An example that computes the magnetostatic energy can be found in the Convergence of magnetostatic models section.

For nonlinear materials that have hysteresis effects, the previous equation no longer applies, and a more complicated expression is needed to account for the hysteresis effect.

For nonlinear materials, the energy density is obtained by integrating the relationship:

where is the integration variable. The integration limit is from 0 to , indicating a start from an unmagnetized state up to the current state . Integration over the entire volume yields the total energy:

Magnetostatic Forces

This section shows how to compute magnetostatic forces between objects. This is useful, as many devices rely on magnetostatic forces for control and actuation. The Maxwell stress tensor will be used for the computation of magnetostatic forces and is introduced next.

Maxwell stress tensor

The Maxwell stress tensor is used to calculate electric and magnetic forces on objects. With the Maxwell stress tensor, the force can generally be expressed as:

where is the Maxwell stress tensor, is the unit normal vector, is the differential surface, is the domain surface boundary, is the domain volume, is the differential volume, and is the Poynting vector. In the magnetostatic case, there are no time dependencies, and the equation simplifies to:

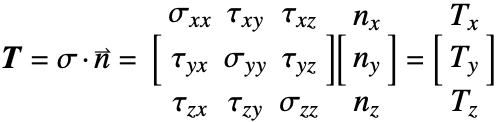

The componentwise definition of the full Maxwell stress tensor is:

where is the magnitude of E and is the Kronecker delta, which is 1 if the indices are the same and zero otherwise. In magnetostatics, the componentwise Maxwell stress tensor simplifies to:

The first index indicates the direction of the force, and the second index indicates the direction of the surface.

In a 3D case, with spatial variables , the Maxwell stress tensor has nine components, as follows:

The Maxwell stress tensor is a force per unit area acting on a surface. To compute the actual stress for a given surface, one takes the dot product with the desired surface normal such that:

Then, is integrated over the surface of the object that the force acts on:

For the complete derivation of the equation, refer to [Griffiths, 2017].

An equivalent formula that is easier to compute is [Ida & Bastos, 2013]:

Eqn. 14 is an alternative to compute and is used here. An electrostatic example is given in the Maxwell stress tensor section of the electrostatic monograph.

In the next example, the horseshoe magnet of the overview example will be modeled again, but now the magnetostatic force on the coin will be computed.

Import a predefined boundary mesh for a horseshoe permanent magnet:
Specify region markers:
Generate the mesh:
Set up the relative permeability and magnetization for the different regions:
Define the antisymmetry plane:
Set up the variables:
Set up the magnetostatic current-free PDE component:
Set up a zero potential at :
Solve the PDE:

To correctly compute the component of the force on the iron coin at the iron-air interface, one needs to prioritize the air values over the iron values.

The fields that generate these forces on the coin are those surrounding the coin body. So, to correctly compute the forces, it is necessary to know the values of the fields on the surface enclosing the coin body, which are the values in the domain's air side.

Compute the magnetic field intensity :
Extract the magnetization from the parameters:
Extract the relative permeability:
Compute the magnetic flux density :

The region of interest is the coin, and it is here, where the surface integral of the Maxwell stress tensor will be computed:

Extract the mesh of the coin:
Visualize the mesh:

To perform the integral, the boundary unit normals to the surfaces need to be computed.

Compute the boundary unit normals:

Next, using the following formula derived above

the component to the Maxwell stress tensor is set up.

Define the dot product of the Maxwell stress tensor with the boundary unit normal of only the component:
Integrate the expression:

The integration gives a value of around 0.06 [], which corresponds to the value of one quarter of the coin. The actual force on the coin is therefore four times this value.

Compute the actual force:

Convergence of Magnetostatics Models

Typically, when an electromagnetic simulation is to be performed, the device of interest is surrounded by a second domain representing the material in which the device is embedded. This surrounding region repents an infinite domain around the device. Since an infinite domain cannot be modeled numerically, the domain needs to be truncated at some distance. An important question is then, How large should the surrounding domain be?

To decide how large the surrounding volume must be, one needs to perform a convergence test with respect to the surrounding domain size. In other words, one compares a quantity such as the magnetic energy generated by the magnet against the size of the surrounding volume. When the magnetic energy approaches a steady value, then the domain size no longer needs to be increased. To see the convergence of the value, a simple plot can be created.

In the next example, a convergence test will be performed for the cylindrical magnet overview example.

Define the height [] and radius []:
Specify the region markers:
Define variables of the model:
Set up the component of the magnetization vector:
Set up the magnetization vector:
Define model parameters:
Define the magnetostatic equation:

To perform the convergence test, it is necessary to change the size of the surrounding sphere, so in this case, a list of different radii will be defined.

Define the list of radii to use:

Next, a parametric study will be conducted. The changing parameter is the radius, and as a consequence, there will be a different mesh for each radius. The PDE model will be solved for each radius.

Build the different meshes:

A MagneticPotentialCondition will be used at the exterior boundaries with a default value of one. The exterior boundaries of the sphere are represented by point element marker with ID 1.

Solve the PDE for each radius:

To compute the magnetic energy, the magnetic field intensity and the magnetic flux density need to be computed.

Compute a DiscontinuousInterpolatingFunction for each solution:
Compute the field for each solution:
Inspect the vacuum permeability:
Compute the field for each solution:

To compute the energy expression, , a mesh is required.

In this case, the magnetostatic energy associated with the magnet will be computed. So, only the magnet region will be required.

Extract the magnet region of the different meshes:
Compute the magnetostatic energy:
Visualize the convergence plot:

The absolute value was used to find the energy associated solely with the magnet. The negative sign obtained indicated the direction of relative to .

The plot shows a steady value has been reached at about .

Boundary Conditions

Boundary conditions for magnetic models fall into one of two categories. Dirichlet conditions specify the magnetic scalar potential at boundaries. The other category involves boundaries that specify the value of the normal component of the magnetic flux density . These boundaries are realized with Neumann value boundary conditions.

For every model, at least one magnetic potential boundary condition must be specified to make the differential equation solvable.

In addition to these two types of boundary conditions, there is also a third type, known as periodic boundary conditions, which are useful when the geometry has repetitive sections.

For the magnetostatic formulation, the following boundary conditions are introduced:

Next, these common boundary conditions are presented and explained. To keep things simple, the same base model is used in the subsequent examples. The model consists of an iron cube in a homogeneous magnetic field of [] directed along the axis. The model is shown in the figure below, where the grey cube represents the iron cube and the blue arrows the magnetic field.

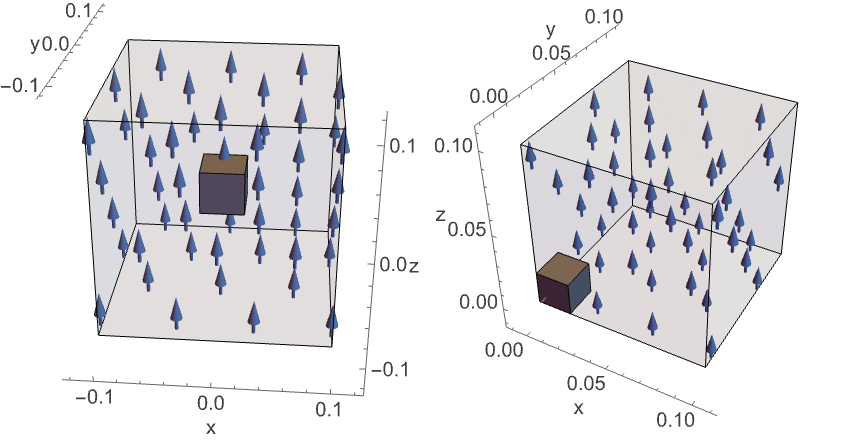

On the left: an iron cube inside an homogeneous magnetic field directed in the positive axis. On the right: 1/8 of the domain.

The domain is composed of an iron cube of length [] and, due to symmetry, only 1/8 of the whole domain is simulated. The air boundary surrounding the iron cube is another a cube of length [].

The magnetic field is antisymmetric to the plane and symmetric to the other planes. These planes are represented as boundaries in the model.

Define the lengths of each cube:

Region markers will be employed to specify the material parameters of the iron and air regions.

Set up the region markers:
Load the boundary mesh:
Visualize the geometry:
Create the mesh:
Visualize the mesh:
Set up the model variables:

The parameters to be used are the permeability of vacuum and iron and the flux density value of the magnetic field.

Specify the relative permeability :
Set up the model parameters:

All common boundary conditions used in magnetostatics can be shown with this model: a magnetic scalar potential, a magnetic flux density, a background magnetic flux density and symmetry boundary conditions. These conditions will be explained in the subsequent sections.

Set up the magnetic flux density value to use:

Magnetic Potential Boundary Condition

The purpose of a magnetic potential boundary condition is to set a specific scalar potential on some part of the boundary.

A magnetic scalar potential on a boundary for the dependent variable is modeled with MagneticPotentialCondition:

If the "MagneticPotential" is omitted a potential of 0 is used.

Setup a default 0 magnetic potential condition:

MagneticPotentialCondition returns a DirichletCondition. Predicates can be specified in exactly the same way as for DirichletCondition.

In the following example the use of MagneticPotentialCondition will be shown.

MagneticPotentialCondition example

A zero magnetic scalar potential condition is used to account for the antisymmetry at , where the magnetic field needs to be perpendicular to the boundary. A zero magnetic scalar potential condition is equivalent to an antisymmetry boundary condition.

Set up a zero magnetic scalar potential with MagneticPotentialCondition:
Solve the magnetostatic PDE model:
Visualize the magnetic scalar potential at :

The plot illustrates the distribution of the magnetic scalar potential on the plane. The potential ranges from [] to []. At the imposed MagneticPotentialCondition sets the potential to 0.

Magnetic Flux Density Boundary Condition

The purpose of a magnetic flux density boundary condition is to define an inward or outward magnetic flux density at a boundary.

For simplicity, but without any restriction to generality, boundary condition equations will be presented in terms of the relative permeability . However, boundary condition equations can be used equally well for other equations shown in the Modeling magnetic materials section.

With a prescribed scalar magnetic flux density [] normal to the boundary , the magnetic flux density boundary condition is given by:

A boundary where a magnetic flux density normal to the boundary is specified and not equal to zero is called a magnetic flux density boundary:

By convention, a negative sign is added in front of to indicate that the magnetic flux density is specified opposite to the outward boundary normal . Therefore, a positive value denotes an inward magnetic flux density, and a negative value denotes an outward magnetic flux density.

Inserting into the constitutive law , a relation between the magnetic flux density and the magnetic scalar potential gradient is obtained:

Inserting Eqn. 15 into Eqn. 16 gives .

An inward density flux can be modeled with MagneticFluxDensityValue by specifying a normal magnetic flux :

MagneticFluxDensityValue returns a NeumannValue. Predicates can be specified in exactly the same way as for NeumannValue.

With a boundary magnetic flux density vector [] and boundary unit normal , the boundary condition is given by:

where is the magnetic flux density field at the boundary. The normal is automatically added and is computed using BoundaryUnitNormal. BoundaryUnitNormal represents an outward-pointing unit normal vector on a region.

An inward current flow can be modeled with MagneticFluxDensityValue by specifying a magnetic flux density vector :

If the magnetic flux density is specified as a vector of zeros or the normal component is specified with a zero value, then there is no flux density at that boundary. This is equivalent to a Neumann zero boundary condition. The magnetic insulation boundary condition is the implicit default boundary condition used if no other boundary condition is specified at a given boundary:

Define a magnetic insulation boundary condition:
Define a magnetic insulation boundary condition through default values:

MagneticFluxDensityValue also can be used to model an background magnetic flux density boundary condition. The background magnetic flux density section shows this in detail.

In the following example, the use of MagneticFluxDensityValue will be shown.

MagneticFluxDensityValue example

To specify the homogeneous magnetic field across the domain, an outward magnetic flux density normal to the boundary, at , is specified.

Set up the magnetic flux density condition with MagneticFluxDensityValue:
Solve the magnetostatic PDE model:

Next, visualize the magnetic field .

Turn the solution into a discontinuous interpolating function:
Compute :
Visualize the field :

The plot shows the direction and magnitude of the magnetic field intensity . The MagneticFluxDensityValue at generates the homogeneous magnetic field [] and forces it to flow in the positive direction.

Symmetry Boundary Condition

A symmetry boundary condition is used when the computational domain and the expected magnetic scalar potential have mirror symmetry along an axis of the simulation domain.

The symmetry boundary condition is given by the dot product of and :

which is equivalent to:

which states that the normal component of the magnetic field intensity is zero.

A symmetry boundary for the dependent variable is modeled with MagneticSymmetryValue:

MagneticSymmetryValue returns a zero NeumannValue. So, a symmetry boundary condition is equivalent to an magnetic insulation boundary condition. If on some part of the boundary no boundary condition is specified, then a Neumann zero boundary condition is implicitly used.

MagneticSymmetryValue example

In the simplified geometry, at the surfaces parallel to the planes - and -, a symmetry boundary condition needs to be applied.


On the left: an iron cube inside an homogeneous magnetic field directed along the axis. On the right: 1/8 of the whole domain.

A magnetic symmetry boundary condition is used to force the magnetic field to be tangential to the boundaries at the symmetry planes.

Set up the magnetic symmetry condition with MagneticSymmetryValue:
Solve the magnetostatic PDE model:

Since the magnetic symmetry condition is a Neumann zero boundary condition and is the default, it can be left out.

Solve the magnetostatic PDE model with a default magnetic symmetry condition:

Next, visualize the magnetic field in the geometry used and in its mirrored geometry.

Turn the solution into a discontinuous interpolating function:
Compute :

To visualize the other half of the field, at , the symmetric behavior of the field must be considered. At positive values, the field is , and at negative values, the field is also .

Create another 1/8 geometry to create 1/4 geometry:
Visualize the symmetric vector field at 1/4 of the complete geometry:

The plot shows the direction and magnitude of the magnetic field intensity at the original geometry and at the symmetry geometry, for . The MagneticSymmetryValue forces the magnetic field to be tangential to the boundaries at the symmetry planes.

Antisymmetry Boundary Condition

An antisymmetry boundary condition models a boundary where a function being considered exhibits an antisymmetry with respect to an axis or plane. This means that the physical quantity of interest, such as the magnetic field, is mirrored across a boundary with a change in sign.

The antisymmetry boundary condition is given by the cross product of and :

and is fulfilled if the potential is set to a constant at , due to the fact that the gradient of a constant potential is zero:

or equivalent to:

A magnetic potential boundary condition set to zero can be used as an antisymmetry boundary condition.

A zero magnetic scalar potential on a boundary for the dependent variable is modeled with MagneticPotentialCondition:

It is important to understand that an antisymmetry boundary condition forces the tangential component of the magnetic field to be zero at the plane of antisymmetry, resulting in the field having only a normal component. And in addition, across the antisymmetry boundary, the normal component to the boundary changes sign.

For example, if a magnetic field configuration is antisymmetric about the - plane, then if the field component in the direction at is , it will be at .

Antisymmetry boundary condition example

In this simplified geometry, the magnetic field exhibits symmetry to the - and - planes and antisymmetry to the - plane.

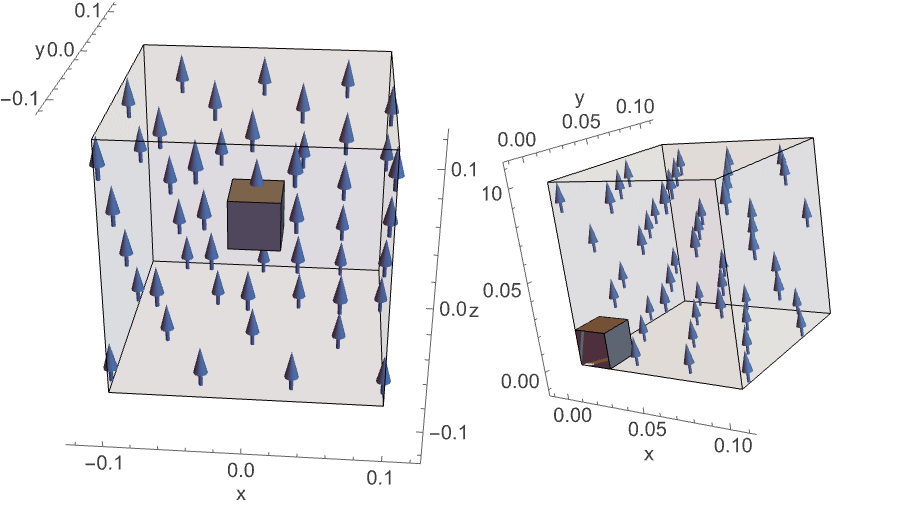

One-eighth of the iron cube model inside an homogeneous magnetic field directed along the axis.

At the left and front boundary, in the - and - planes, respectively, a symmetry boundary condition is applied. This boundary will force the magnetic field to be tangential to the boundaries.

The antisymmetry boundary condition comes into play at the lower boundary, at the plane, where the magnetic field needs to be normal to the boundary.

A magnetic antisymmetry boundary condition is used to force the magnetic field to be normal to the boundaries specified.

Set up the magnetic antisymmetry condition with MagneticPotentialCondition:
Solve the magnetostatic PDE model:

Next, visualize the magnetic field in the geometry used and in its mirrored geometry below the antisymmetry plane.

Turn the solution into a discontinuous interpolating function:
Compute :

To visualize the other half of the field, at , the antisymmetric behavior of the field must be considered. At positive values, the field is , and at negative values, the field is .

Create another 1/8 geometry to create 1/4 geometry:
Visualize the symmetric vector field at 1/4 of the complete geometry:

The plot shows the direction and magnitude of the magnetic field intensity at the original geometry and at the symmetry geometry for . Across the symmetry at , the magnetic field exhibits an antisymmetric behavior. The antisymmetry boundary condition forces the magnetic field to be normal to the plane at , and the magnetic field is mirrored across the plane with a change in sign in the normal component, .

Periodic Boundary Condition

The purpose of a periodic boundary condition is to map the magnetic scalar potential from one boundary to another in order to model periodicity of the domain.

Given a function that maps the magnetic scalar potential from the periodic boundary to the targeted boundary , the periodic boundary condition can be written as:

A periodic boundary condition for the dependent variable modeled with PeriodicBoundaryCondition:

Conditions at Material Interfaces

Maxwell's equations are valid for continuous material. However, in electromagnetics, it is common for electric or magnetic fields to be generated in one medium and transmitted to a second medium with different physical properties. The interface between any two materials is a physical discontinuity in the materials. The question then is, How are Maxwell equations solved in a multimaterial domain?

In the multimaterial case, the electromagnetics field quantities, of course, adhere to the physics at these material interfaces. These interface conditions are not boundary conditions that must be applied but conditions that provide the mathematical legitimacy to use the finite element method to solve the equations.

At a material interface separating two different materials the following conditions must be satisfied:

where [] is a surface current density deposited at the interface of medium 1 and medium 2. Eqn. 17 can be written as follows:

which means that the normal component of the magnetic flux density is continuous.This condition is equivalent to the natural boundary condition, discussed in the Magnetic flux density boundary condition section and hence is automatically satisfied.

On the other hand, the normal component of the magnetic field intensity will not be continuous. To show this, substitute :

showing that the normal component of must be discontinuous at the interface boundary. Since the permeability in the two materials ; the only way that is true is when fields and are discontinuous. must be discontinuous at the material interface.

Eqn. 18 means that the tangential component of the magnetic field intensity will be discontinuous if a surface current density is placed deliberately at the interface. If not, then the magnetic field intensity will be continuous across the interface:

On the other hand, substituting by , the following equation is deduced:

These interface conditions have a direct consequence on the main variable being solved for, especially in models involving different media. At the interface, the magnetic scalar potential needs to satisfy the following conditions:

where is the normal derivative.

These conditions are known in literature as the continuity conditions. These conditions essentially legitimate the use of the finite element method for electromagnetic computations, because these conditions are naturally satisfied with the finite element method. In other words, no additional measures need to be taken; the finite element method will automatically handle this.

Nomenclature

References

1.  Blinder, S. M. (2011, March 7). "Magnetic Hysteresis." Wolfram Demonstrations Project. Retrieved from http://demonstrations.wolfram.com/MagneticHysteresis

2.  Cardoso, J. R. (2018). Electromagnetics through the Finite Element Method. Boca Raton: CRC Press.

3.  Domke, H.-J. (2011, March 7). "A Simple Model of Magnetization." Wolfram Demonstrations Project. Retrieved from http://demonstrations.wolfram.com/ASimpleModelOfMagnetization

4.  Griffiths, D. J. (2017). Introduction to Electrodynamics (4th ed.). Cambridge University Press.

5.  Gutfleisch, O., Willard, M. A., Brück, E., Chen, C. H., Sankar, S. G. and Liu, J. P. (2011). "Magnetic Materials and Devices for the 21st Century: Stronger, Lighter, and More Energy Efficient." Advanced Materials, 23(7), pp. 821–842.

6.  Ida, N. and Bastos, J. P. (2013). Electromagnetics and Calculation of Fields. Springer Science & Business Media.

7.  Kumar, S. and Tummuru, T. (2016, December). "Jiles-Atherton Model of Magnetic Hysteresis." Wolfram Demonstrations Project. Retrieved from https://demonstrations.wolfram.com/JilesAthertonModelOfMagneticHysteresis

8.  Mesquita, R. C. and Bastos, J. P. A. (1992). "An Incomplete Gauge Formulation for 3D Nodal Finite-Element Magnetostatics." IEEE Transactions on Magnetics, 28(2), pp. 1044–1047.

9.  Purcell, E. M. (2013). Electricity and Magnetism. Cambridge University Press.
