AudioGenerator[model]

生成 1 秒给定模型 model 的音频.

AudioGenerator[model,t]

生成 t 秒音频.

AudioGenerator[model,t,"type"]

生成指定类型 "type" 的音频样本.

更多信息和选项
Details and Options Details and Options
范例
基本范例
范围
基本用法
模型说明
振荡
噪音生成器
使用函数
使用过程
使用 TimeSeries
选项
SampleRate
应用
噪声应用
根据时间数据生成音频
生成多频率
频率和幅度调制
可能存在的问题
互动范例
巧妙范例
参见
技术笔记
相关指南
历史
按以下格式引用：

AudioGenerator

AudioGenerator[model]

生成 1 秒给定模型 model 的音频.

AudioGenerator[model,t]

生成 t 秒音频.

AudioGenerator[model,t,"type"]

生成指定类型 "type" 的音频样本.

更多信息和选项

  • AudioGenerator 可以生成不同类型的音频，包括振荡和噪音.
  • model 的可能设置包括：
  • f对随机时间函数 f 抽样（以秒计量）
    proc从随机过程 proc 中生成样本
    tseries从 TimeSeries tseries 中生成样本
    "model"根据已命名函数 "model" 生成样本
  • 无声：
  • "Silence"无声（零）信号
  • 振荡：
  • {"Sin",freq,phase}正弦波
    {"Triangle",freq,phase}三角波
    {"Sawtooth",freq,phase}锯齿波
    {"Square",freq,phase}方形波
    {"Pulse",freq,phase,width}使用占空因数 width 的长方形波
    {"Impulse",freq,phase}脉冲信号
  • 默认情况下，使用 freq=TemplateBox[{440, "Hz", hertz, "Hertz"}, Quantity]、phase=TemplateBox[{0, "rad", radians, "Radians"}, Quantity] 和 width=TemplateBox[{25, "%", percent, "Percent"}, QuantityPostfix].
  • 参数 freq、phase 和 width 可为标量、数量 Quantity、Audio 对象、TimeSeries、或纯函数.
  • 噪音：
  • "White"恒定功率谱密度
    "Pink"服从 1/f 的功率谱密度
    "Brown"服从
    "Blue"服从 的功率谱密度
    {"Color",α}服从 且 的功率谱密度
    {"White",dist}从 dist 抽样的随机噪音数值
    "PeriodicRandomNoise"拥有恒定振幅和随机相位的正弦组成总和
  • 其他：
  • AudioGenerator 生成类型为 "Real32" 的音频对象. "type" 的可能设置类型参见 Audio 的页面.
  • AudioGenerated 与 Audio 的选项相同.

    • 所有选项的列表

范例

打开所有单元 关闭所有单元

基本范例  (3)

生成 1 秒的正弦音频：

Wolfram Language code: AudioGenerator["Sin"]

根据任意函数生成信号：

Wolfram Language code: AudioGenerator[Sin[800 # ^ 2 ]&, 3]

生成噪音：

Wolfram Language code: AudioGenerator["White", 2]

范围  (17)

基本用法  (2)

默认情况下，生成 1 秒的音频：

Wolfram Language code: AudioGenerator["Sin"]//Duration

指定时长：

Wolfram Language code: AudioGenerator["Sin", 5]//Duration

用时间量指定时长：

Wolfram Language code: AudioGenerator["Sin", Quantity[100, "ms"]]//Duration

指定生成的样本数：

Wolfram Language code: AudioGenerator["Sin", Quantity[4410, "samples"]]//Duration

默认情况下，生成 "Real32" 类型的音频：

Wolfram Language code: AudioGenerator["Sin", 1]//AudioType

指定不同的数据类型：

Wolfram Language code: AudioGenerator["Sin", 5, "SignedInteger8"]//AudioType

模型说明  (15)

振荡  (5)

频率为 2000 Hz 的正弦振荡：

Wolfram Language code: AudioGenerator[{"Sin", Quantity[2000, "Hertz"]}]

用函数控制正弦波的频率：

Wolfram Language code: AudioGenerator[{"Sin", 1000 + 1000Sin[2 * Pi#]&}]

可视化波谱图：

Wolfram Language code: Spectrogram[%, PlotRange -> {All, {0, 3000}}]

使用另一个 Audio 对象控制正弦波的频率:

Wolfram Language code: freqMod = Import["ExampleData/rule30.wav"]; AudioGenerator[{"Sin", 440 + 2000 * freqMod}]

可视化生成音频的波谱图：

Wolfram Language code: Spectrogram[%, PlotRange -> {All, {0, 2000}}]

使用 TimeSeries 控制正弦波的频率：

Wolfram Language code: frequencies = {378, 366, 287, 482, 595, 522, 227, 412, 481, 390}; times = {0.2, 0.5, 0.7, 1.1, 1.4, 1.7, 1.9, 2., 2.4, 2.7}; freqMod = TimeSeries[frequencies, {times}]
Wolfram Language code: AudioGenerator[{"Sin", freqMod}]

生成不同的振荡波：

Wolfram Language code: waveforms = {"Sin", "Triangle", "Sawtooth", "Square", "Pulse", "Impulse"};
Wolfram Language code: Table[AudioPlot[AudioGenerator[i, .01], PlotTheme -> "Minimal", PlotLabel -> i], {i, waveforms}]//Multicolumn

噪音生成器  (5)

生成白色噪音：

Wolfram Language code: AudioGenerator["White"]

白色噪音的数值可由分布中抽样提取：

Wolfram Language code: Histogram@AudioData@AudioGenerator[{"White", NormalDistribution[]}]

生成不同的振荡波：

Wolfram Language code: noises = {"White", "Pink", "Brown", "Blue", {"Color", 1.5}, "PeriodicRandomNoise"};
Wolfram Language code: Table[AudioPlot[AudioGenerator[i, .01], PlotLabel -> i, PlotTheme -> "Minimal"], {i, noises}]//Multicolumn

粉色、棕色和蓝色噪音频谱符合 f-α 分布，其中 α 分别等于 1、2 和 ：

Wolfram Language code: colors = {"Pink", "Brown", "Blue"}; Periodogram[AudioGenerator /@ colors, 4000, ScalingFunctions -> {"Log10", Automatic}, PlotRange -> {-50, 25}, PlotLegends -> colors, PlotStyle -> {RGBColor[1, 0.5, 0.5], RGBColor[0.772079, 0.431554, 0.102387], RGBColor[0.368417, 0.506779, 0.709798]}]

"PeriodicRandomNoise" 的频谱为完美平滑：

Wolfram Language code: Periodogram[AudioGenerator["PeriodicRandomNoise"]]

使用函数  (1)

AudioGenerator 支持时间函数：

Wolfram Language code: f[x_] := Sin[440 2Pi x]; AudioGenerator[f, 2]

使用过程  (2)

从噪音过程中生成音频：

Wolfram Language code: AudioGenerator[FractionalGaussianNoiseProcess[.2]]//AudioNormalize

使用从随机过程生成的音频对象处理控制正弦曲线的振幅：

Wolfram Language code: telegraph = AudioGenerator[TelegraphProcess[4], 4];
Wolfram Language code: (1 + telegraph) * \!\(\*AudioBox["![Embedded Audio Player](audio://content-ifz6q)"]\)

使用 TimeSeries  (2)

从 TimeSeries 中生成音频：

Wolfram Language code: AudioGenerator[TimeSeries[Range[10] / 10.]]//AudioPlot

从不规则的 TimeSeries 中生成音频对象：

Wolfram Language code: amplitudes = AudioGenerator[TimeSeries[{{0, 1}, {1, 0}, {1.5, .3}, {3, 0}}]]; amplitudes * AudioGenerator["Sin", 3]
Wolfram Language code: AudioPlot@%

选项  (1)

SampleRate  (1)

默认情况下，使用 SampleRate->44100：

Wolfram Language code: AudioGenerator["Sin"]//AudioSampleRate

指定不同的采样率：

Wolfram Language code: AudioGenerator["Sin", SampleRate -> 1000]//AudioSampleRate

应用  (8)

噪声应用  (2)

将噪音加入音频对象：

Wolfram Language code: a = ExampleData[{"Audio", "Cello"}, "Audio"];
Wolfram Language code: noisy = .5a + .03AudioGenerator["White", Duration[a]]

使用 "PeriodicRandomNoise" 测试线性系统的频率反馈：

Wolfram Language code: Periodogram[LowpassFilter[AudioGenerator["PeriodicRandomNoise", .1], 2 Pi 10000]]

根据时间数据生成音频  (2)

对比两个公司的股票趋势：

Wolfram Language code: msft = TimeSeriesRescale[TimeSeries@FinancialData["MSFT", {"Jan. 1, 1990", "Jan. 1, 2018"}], {0, 10}]; aapl = TimeSeriesRescale[TimeSeries@FinancialData["AAPL", {"Jan. 1, 1990", "Jan. 1, 2018"}], {0, 10}];

对数据重新采样并平滑话处理：

Wolfram Language code: resampledMSFT = QuantityMagnitude@TimeSeriesResample[Round[MovingAverage[msft, 60]], 1 / 8]; resampledAAPL = QuantityMagnitude@TimeSeriesResample[Round[MovingAverage[aapl, 60]], 1 / 8]; ListLinePlot[{resampledMSFT, resampledAAPL}, PlotStyle -> {Automatic, Automatic, PointSize[Large]}, PlotLegends -> {"MSFT", "AAPL"}]
Wolfram Language code: midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.;

生成由两个时间序列控制的音频：

Wolfram Language code: res = .8Mean[{AudioGenerator[{"Sin", midiToFreq[.5resampledMSFT + 40]}], AudioGenerator[{"Triangle", midiToFreq[.5resampledAAPL + 40]}]}]

使用 TimeSeries 列表控制正弦波谐波列表的振幅：

Wolfram Language code: duration = 5;
Wolfram Language code: sineBank = Table[AudioGenerator[{"Sin", Quantity[100, "Hertz"] * i, 0}, duration], {i, 10}];
Wolfram Language code: amplitudes = Table[AudioGenerator[TimeSeries[RandomInteger[{0, 1}, 40], {RandomReal[{0, duration}, 40]}], duration, SampleRate -> 200], 10];
Wolfram Language code: Mean[amplitudes * sineBank]
Wolfram Language code: AudioPlot@%

生成多频率  (3)

生成一系列 DTMF 音调来模拟拨打电话号码：

Wolfram Language code: keys = {1 -> {697, 1209}, 2 -> {697, 1336}, 3 -> {697, 1477}, 4 -> {770, 1209}, 5 -> {770, 1336}, 6 -> {770, 1477}, 7 -> {852, 1209}, 8 -> {852, 1336}, 9 -> {852, 1477}, 0 -> {941, 1336}};
Wolfram Language code: dtmf[str_String] := AudioJoin[Table[{Mean[AudioGenerator[{"Sin", #}, Quantity[200, "Milliseconds"]]& /@ (key /. keys)], Quantity[50, "Milliseconds"]}, {key, ToExpression /@ Characters[str]}]]
Wolfram Language code: phoneNumber = "6345789";
Wolfram Language code: dtmf[phoneNumber]

创建数值键盘：

Wolfram Language code: Grid[Partition[MapIndexed[Labeled[Audio[Mean[AudioGenerator[{"Sin", #}, .1]& /@ #], Appearance -> "Minimal"], First@#2]&, Flatten[Outer[List, {697, 770, 852}, {1209, 1336, 1477}], 1]], 3]]

创建一个错听：

Wolfram Language code: range = 12; duration = 20; lfoFreq = .05; basePitch = 30; numOsc = 8; midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.

生成坡道控制频率和振荡器振幅：

Wolfram Language code: phasors = Table[AudioGenerator[{"Sawtooth", lfoFreq, 2.Pi / numOsc(i - 1.)}, duration, SampleRate -> 500] / 2. + .5, {i, numOsc}]; AudioPlot[phasors, PlotLayout -> "Overlaid", PlotRange -> All]

生成可控制振荡器的频率. 频率从相互间提取出一个频程并进行指数增加，从而使音高进行线性增加：

Wolfram Language code: freqs = Table[midiToFreq[(phasors[[i]]) * 12 * numOsc + basePitch], {i, numOsc}]; AudioPlot[freqs, PlotLayout -> "Overlaid", PlotRange -> All]

生成振幅可控制振荡器的振幅. 当频率减小到最低值时候振幅为 0：

Wolfram Language code: amps = Cos[# * Pi - Pi / 2.]& /@ phasors; AudioPlot[amps, PlotLayout -> "Overlaid", PlotRange -> All]

显示一个振荡器频率和振幅间的关系：

Wolfram Language code: AudioPlot[AudioNormalize /@ {freqs[[2]], amps[[2]]}, PlotRange -> All]

用生成的频率和振幅结合多个振荡器：

Wolfram Language code: res = Mean[ Table[amps[[i]]AudioGenerator[{"Sin", freqs[[i]]}, SampleRate -> 24000], {i, numOsc}]]
Wolfram Language code: Spectrogram[res, 8192, 4096, HannWindow]

频率和幅度调制  (1)

生成并重建 AM 信号：

Wolfram Language code: a = \!\(\*AudioBox["![Embedded Audio Player](audio://content-eufg8)"]\);
Wolfram Language code: Periodogram[a, 2000, PlotRange -> {{0, 10000}, All}]

用 22050 Hz 正弦曲线调节振幅，将内容移动至频谱的最高端. 结果可让大部分听见：

Wolfram Language code: amsignal = a×AudioGenerator[{"Sin", Quantity[22050, "Hertz"]}, Duration@a, SampleRate -> 96000]
Wolfram Language code: Periodogram[amsignal, 2200]

通过对结果次增加另一个形同相位的 22050 Hz 的正弦曲线对 AM 信号解调：

Wolfram Language code: result = LowpassFilter[amsignal * AudioGenerator[{"Sin", Quantity[22050, "Hertz"]}, Duration@amsignal, SampleRate -> 96000], Quantity[5000, "Hertz"], 201]

可能存在的问题  (2)

振荡波中，频率应小于或等于采样率的一半：

Wolfram Language code: AudioGenerator[{"Sin", 5001}, SampleRate -> 10000]

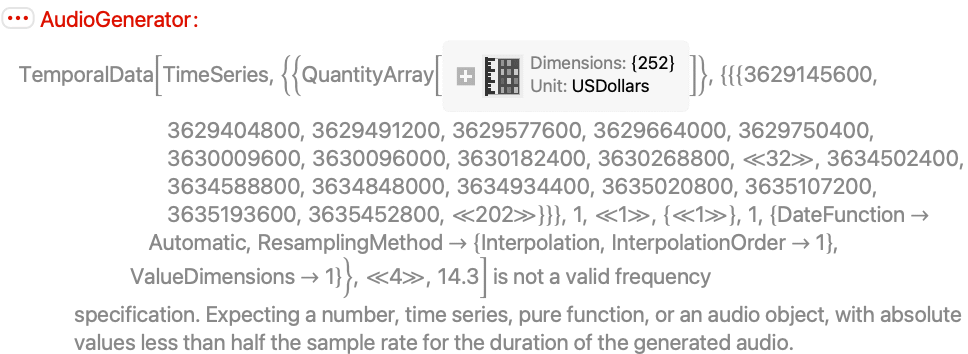

如果 TimeSeries 作为输入使用，其中需要数值非负的时间戳：

Wolfram Language code: ts = TimeSeries[FinancialData["GE", {"Jan. 1, 2015", "Jan. 1, 2016"}]]
Wolfram Language code: AudioGenerator[{"Sin", ts}]//Head

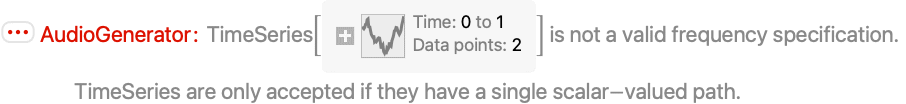

TimeSeries 需要有单个标量路径：

Wolfram Language code: ts = TimeSeries[{{0, {600, 300}}, {1, {400, 300}}}]
Wolfram Language code: AudioGenerator[{"Sin", ts}]//Head

互动范例  (3)

控制振荡器的频率和相位：

Wolfram Language code: Manipulate[ AudioPlot[ AudioGenerator[{"Sin", freq, phase}, .1] ], {freq, 10, 100}, {phase, 0, 10}, ContinuousAction -> False]

AudioGenerator[{"Color",α}] 的频谱符合 f-α 分布：

Wolfram Language code: Manipulate[ Periodogram[AudioGenerator[{"Color", α}], 2000, ScalingFunctions -> {"Log10", Automatic}, PlotRange -> {-60, 30}], {α, -2, 2}, ContinuousAction -> False]

使用调频创建复杂音频信号：

Wolfram Language code: Manipulate[ Periodogram[ AudioGenerator[{"Sin", freq + freqModAmount * modFreq * AudioGenerator[{"Sin", modFreq}]}], ScalingFunctions -> "Absolute", PlotRange -> {{0, 1000}, All}, ImageSize -> Medium], {{freq, 440, "Carrier Frequency"}, -500, 500}, {{modFreq, 100, "Modulation Frequency"}, -200, 200}, {{freqModAmount, 0, "Amount of Frequency Modulation"}, 0, 10}, ControlPlacement -> Top, ContinuousAction -> False ]

巧妙范例  (4)

扫描调制信号的频率：

Wolfram Language code: AudioGenerator[{"Sin", 400 + 300 * AudioGenerator[{"Sin", 100 * #&}, 4]}, SampleRate -> 8000]

使用基为 24 的 Pi 的小数位生成正弦振荡器的频率系列：

Wolfram Language code: digits = First@RealDigits[π, 24, 100]
Wolfram Language code: midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440. AudioGenerator[{"Sin", TimeSeries[midiToFreq[50 + digits], {0, 10}]}, SampleRate -> 8000]

使用 DiscreteMarkovProcess 创建旋律：

Wolfram Language code: 𝒫 = DiscreteMarkovProcess[12, (⁠| | | | | | | | | | | | | | -------- | ------- | -------- | ------- | -------- | -------- | ------- | -------- | ------- | -------- | ------- | -------- | | (7/153) | 0 | (31/153) | (2/153) | (23/153) | (2/51) | (8/153) | (1/9) | (1/153) | (25/153) | (5/153) | (28/153) | | 0 | 0 | (1/3) | 0 | 0 | 0 | 0 | (1/2) | 0 | (1/6) | 0 | 0 | | (31/111) | 0 | 0 | 0 | (29/111) | (2/37) | (1/37) | (8/111) | 0 | (11/111) | (1/37) | (20/111) | | (1/4) | 0 | (1/12) | (1/6) | 0 | 0 | 0 | (1/4) | 0 | (1/4) | 0 | 0 | | (25/128) | (1/128) | (27/128) | 0 | (3/128) | (23/128) | (5/128) | (21/128) | (1/128) | (5/64) | (5/128) | (7/128) | | (4/113) | 0 | (19/113) | 0 | (23/113) | 0 | 0 | (35/113) | 0 | (13/113) | 0 | (19/113) | | (7/29) | 0 | (2/29) | (1/29) | (5/29) | 0 | 0 | (7/29) | (2/29) | (1/29) | 0 | (4/29) | | (15/166) | (3/166) | (2/83) | (2/83) | (27/166) | (37/166) | (7/166) | (19/166) | 0 | (15/83) | (1/166) | (19/166) | | 0 | 0 | 0 | 0 | (1/14) | 0 | (1/7) | (1/14) | 0 | (1/2) | 0 | (3/14) | | (5/32) | 0 | (1/16) | (3/128) | (3/64) | (11/64) | (1/128) | (29/128) | (3/64) | 0 | (1/64) | (31/128) | | (5/16) | 0 | (1/16) | 0 | (5/16) | 0 | 0 | (1/8) | 0 | (3/16) | 0 | 0 | | (36/131) | (2/131) | (16/131) | 0 | (6/131) | (19/131) | (3/131) | (21/131) | (4/131) | (24/131) | 0 | 0 |⁠)];
Wolfram Language code: midiToFreq[m_] := 2 ^ ((m - 69) / 12) * 440.;AudioGenerator[{"Sin", midiToFreq[59 + TimeSeriesRescale[RandomFunction[𝒫, {0, 50}], {0, 6}]]}, SampleRate -> 8000]

使用莫尔斯电码生成一个音频信号：

Wolfram Language code: code = <|"a" -> ".-", "b" -> "-...", "c" -> "-.-.", "d" -> "-..", "e" -> ".", "f" -> "..-.", "g" -> "--.", "h" -> "....", "i" -> "..", "j" -> ".---", "k" -> "-.-", "l" -> ".-..", "m" -> "--", "n" -> "-.", "o" -> "---", "p" -> ".--.", "q" -> "--.-", "r" -> ".-.", "s" -> "...", "t" -> "-", "u" -> "..-", "v" -> "...-", "w" -> ".--", "x" -> "-..-", "y" -> "-.--", "z" -> "--..", "1" -> ".----", "2" -> "..---", "3" -> "...--", "4" -> "....-", "5" -> ".....", "6" -> "-....", "7" -> "--...", "8" -> "---..", "9" -> "----.", "0" -> "-----", "." -> ".-.-.-", "," -> "--..--", "!" -> "-.-.--", "?" -> "..--.."|>; withgaps = Map[StringRiffle[Characters[#], "_"]&, code]; withpauses = Map[StringInsert[#, "___", -1]&, withgaps]; withspace = AssociateTo[withpauses, " " -> "_______"]; replacements = Map[StringReplace[#, {"-" -> "111", "." -> "1", "_" -> "0"}]&, withspace];

创建一个函数用字典将信息翻译为音频信号：

Wolfram Language code: createMorseSignal[s_String, t_] := Module[{events = Characters[StringReplace[ToLowerCase[s], Normal@replacements]], ts, amps}, ts = TimeSeries[ToExpression@events, {0, (Length[events] - 1) * t, t}]; amps = AudioGenerator[ts, SampleRate -> 1000];AudioGenerator[{"Sin", 800}, Duration@amps, SampleRate -> 8000]amps ]

将表达式译码为音频信号：

Wolfram Language code: morse = createMorseSignal["hello world", .05]
Wolfram Language code: AudioPlot@%
