ImageTake

ImageTake[image,n]

gives an image consisting of the first n rows of image.

ImageTake[image,-n]

gives an image consisting of the last n rows of image.

ImageTake[image,{row1,row2}]

gives rows row1 through row2.

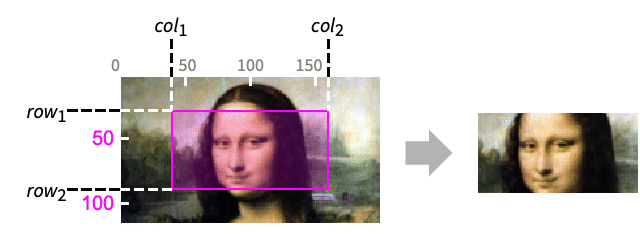

ImageTake[image,{row1,row2},{col1,col2}]

gives the image that spans row1 to row2 and col1 to col2.

ImageTake[image3d,{slice1,slice2},{row1,row2},{col1,col2}]

gives the 3D image consisting of the specified slices, rows, and columns.

Details

  • ImageTake is typically used for extracting regions of interest by cropping or trimming an image.
  • ImageTake uses the standard sequence specification:
  • Allall elements
    nelements 1 up to n
    UpTo[n]elements 1 up to n
    -nlast n elements
    {n}element n only
    {m,n}elements m through n inclusive
    {m,n,s}elements m through n in steps of s
  • If fewer elements exist than are requested, ImageTake will just return the elements that are present.

Examples

open allclose all

Basic Examples  (2)

Take the first 70 pixel rows from an image:

Take rows 30 through 100 and columns 60 through 130 from an image:

Scope  (4)

Data  (2)

Take rows 80 to 200 from a grayscale image:

Take the top 23 slices of a 3D image:

Parameters  (2)

Take the last 100 rows from an image:

Take rows 30 to 100:

Take row 100:

Take every other row of the image:

Take the first 100 columns:

Take a range of rows and columns:

Take the bottom 23 slices of a 3D image:

Take a selected horizontal slice of a 3D image:

Take all slices in a selected region of the 3D image:

Take selected part of a 3D volume:

Applications  (2)

Trim an image by removing a 30-pixel-wide border:

Use ImageKeypoints to determine a region of interest:

Highlight the region of interest:

Convert from image coordinates to matrix coordinates and extract the region of interest:

Properties & Relations  (3)

Use ImageTake to obtain the same top-bottom reflection as with ImageReflect:

Downsample an image by extracting every other pixel:

Downsample a 3D image by a factor of 3:

Interactive Examples  (2)

Interactive image panning:

Interactively take specified parts on a volume:
