AdjacencyGraph

AdjacencyGraph[amat]

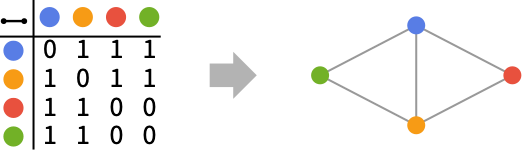

给出邻接矩阵为 amat 的图.

AdjacencyGraph[{v1,v2,…},amat]

给出顶点为 vi、邻接矩阵为 amat 的图.

更多信息和选项

背景

范例

打开所有单元 关闭所有单元

基本范例  (2)

从邻接矩阵构建一个图：

Wolfram Language code: AdjacencyGraph[{{0, 1, 0}, {0, 0, 1}, {1, 0, 0}}]

对称邻接矩阵产生无向图：

Wolfram Language code: AdjacencyGraph[{{0, 1, 1}, {1, 0, 1}, {1, 1, 0}}]

范围  (7)

对称矩阵被解释为无向图：

Wolfram Language code: AdjacencyGraph[(| | | | | | - | - | - | - | | 0 | 1 | 1 | 0 | | 1 | 0 | 1 | 1 | | 1 | 1 | 0 | 1 | | 0 | 1 | 1 | 0 |)]

非对称矩阵被解释为有向图：

Wolfram Language code: AdjacencyGraph[(| | | | | | - | - | - | - | | 0 | 1 | 0 | 0 | | 1 | 0 | 0 | 0 | | 1 | 1 | 0 | 0 | | 1 | 1 | 0 | 0 |)]

利用 DirectedEdges 从对称矩阵创建有向图：

Wolfram Language code: AdjacencyGraph[(| | | | | | - | - | - | - | | 0 | 1 | 1 | 0 | | 1 | 0 | 1 | 1 | | 1 | 1 | 0 | 1 | | 0 | 1 | 1 | 0 |), DirectedEdges -> True]

具有对角线元素的矩阵将产生自环：

Wolfram Language code: {AdjacencyGraph[(| | | | | | - | - | - | - | | 1 | 1 | 1 | 0 | | 1 | 0 | 1 | 1 | | 1 | 1 | 0 | 1 | | 0 | 1 | 1 | 0 |)], AdjacencyGraph[(| | | | | | - | - | - | - | | 0 | 1 | 0 | 0 | | 1 | 0 | 0 | 0 | | 1 | 1 | 1 | 0 | | 1 | 1 | 0 | 0 |)]}

利用一个 SparseArray 对象指定邻接矩阵：

Wolfram Language code: AdjacencyGraph[SparseArray[{{i_, j_} /; 0 < Abs[i - j] ≤ 3 -> 1}, {6, 6}]]

默认情况下，顶点采用从 1 到 的整数值：

Wolfram Language code: VertexList@AdjacencyGraph[(| | | | | | - | - | - | - | | 1 | 1 | 1 | 0 | | 1 | 0 | 1 | 1 | | 1 | 1 | 0 | 1 | | 0 | 1 | 1 | 0 |)]

使用一个显式的顶点列表来给出顶点名称：

Wolfram Language code: VertexList@AdjacencyGraph[{a, b, c, d}, (| | | | | | - | - | - | - | | 1 | 1 | 1 | 0 | | 1 | 0 | 1 | 1 | | 1 | 1 | 0 | 1 | | 0 | 1 | 1 | 0 |)]

AdjacencyGraph 可用于大规模矩阵：

Wolfram Language code: SparseArray[{Band[{2, 1}] -> 1, Band[{3, 1}] -> 1}, {10^6, 10^6}]
Wolfram Language code: Timing[AdjacencyGraph[%]//EdgeCount]

选项  (83)

AnnotationRules  (3)

指定顶点的注释:

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), AnnotationRules -> {3 -> {VertexLabels -> "hello"}}]

边：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), AnnotationRules -> {12 -> {EdgeLabels -> "hello"}}]

图自身：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), AnnotationRules -> {"GraphProperties" -> {"Message" -> "hello"}}]
Wolfram Language code: AnnotationValue[%, "Message"]

DirectedEdges  (3)

默认情况下，一个对称矩阵生成一个无向图：

Wolfram Language code: AdjacencyGraph[(| | | | | | | - | - | - | - | - | | 0 | 1 | 1 | 1 | 1 | | 1 | 0 | 1 | 1 | 1 | | 1 | 1 | 0 | 1 | 1 | | 1 | 1 | 1 | 0 | 1 | | 1 | 1 | 1 | 1 | 0 |)]

使用 DirectedEdges->True 来生成一个有向图：

Wolfram Language code: AdjacencyGraph[(| | | | | | | - | - | - | - | - | | 0 | 1 | 1 | 1 | 1 | | 1 | 0 | 1 | 1 | 1 | | 1 | 1 | 0 | 1 | 1 | | 1 | 1 | 1 | 0 | 1 | | 1 | 1 | 1 | 1 | 0 |), DirectedEdges -> True, EdgeStyle -> Arrowheads[Medium]]

默认情况下，一个非对称矩阵生成一个有向图：

Wolfram Language code: AdjacencyGraph[(| | | | | | | - | - | - | - | - | | 0 | 1 | 1 | 1 | 1 | | 0 | 0 | 0 | 0 | 0 | | 0 | 0 | 0 | 0 | 0 | | 0 | 0 | 0 | 0 | 0 | | 0 | 0 | 0 | 0 | 0 |)]

EdgeLabels  (7)

对边 12 添加标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {12 -> "Hello"}]

对每个边分别添加标签：

Wolfram Language code: el = {12, 13, 23};
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> Table[el[[i]] -> Subscript["e", i], {i, Length[el]}]]

使用任意表达式作为标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {12 -> [image], 23 -> [image], 13 -> [image]}]

使用符号位置信息的 Placed 来控制沿着一条边的标签位置：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {12 -> Placed["■■■", p]}, PlotLabel -> p], {p, {"Start", "Middle", "End"}}]

使用显式坐标来放置标签：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {12 -> Placed["■■■", p]}, PlotLabel -> p, BaselinePosition -> Bottom], {p, {0, 1 / 4, 1 / 3}}]

改变标签内的位置：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {12 -> Placed["■■■", {1 / 2, p}]}, PlotLabel -> p, BaselinePosition -> Bottom], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]

放置多个标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {31 -> Placed[{"lbl1", "lbl2"}, {"Start", "End"}]}]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> {31 -> Placed[{"lbl1", "lbl2", "lbl3"}, {"Start", "Middle", "End"}]}]

通过 Tooltip 和 StatusArea 的值，使用自动标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> Placed["Name", Tooltip]]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeLabels -> Placed["Name", StatusArea]]

EdgeShapeFunction  (6)

获取 EdgeShapeFunction 的内置设置列表：

Wolfram Language code: ResourceData["EdgeShapeFunction"]

包含基本线条的无向边：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeShapeFunction -> "Line"]

具有各种符号的边线条：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> ef], {ef, {"BoxLine", "DiamondLine", "DotLine"}}]

包含实心箭头的有向边：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |), EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> ef], {ef, ResourceData["EdgeShapeFunction", "FilledArrow"]}]

线型箭头：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |), EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> ef], {ef, ResourceData["EdgeShapeFunction", "UnfilledArrow"]}]

开放式箭头：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |), EdgeShapeFunction -> {{ef, "ArrowSize" -> 0.1}}, PlotLabel -> ef], {ef, ResourceData["EdgeShapeFunction", "CarvedArrow"]}]

对每条边指定一个边函数：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |), EdgeShapeFunction -> {12 -> "FilledArcArrow"}]

与一个不同的默认边函数合用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |), EdgeShapeFunction -> {12 -> "FilledArcArrow", "CarvedArrow"}]

通过运行程序，绘制边：

Wolfram Language code: ef[pts_List, e_] := Block[{s = 0.015, g = [image]}, {Arrowheads[{{s, 0.33, g}, {s, 0.67, g}}], Arrow[pts]}]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeShapeFunction -> ef]

EdgeShapeFunction 可以与 EdgeStyle 合起来使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeStyle -> Blue, EdgeShapeFunction -> (Line[#1]&)]

EdgeShapeFunction 具有比 EdgeStyle 更高的优先级：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeStyle -> Blue, EdgeShapeFunction -> ({Red, Line[#1]}&)]

EdgeStyle  (2)

对所有边进行样式化处理：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeStyle -> style, PlotLabel -> style], {style, {Gray, Dashed, Thick}}]

对单条边进行样式化处理：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeStyle -> {12 -> Blue, 13 -> Dashed}]

EdgeWeight  (2)

指定所有边的权值：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeWeight -> RandomInteger[5, 3]]
Wolfram Language code: WeightedAdjacencyMatrix[%]//MatrixForm

将任意数值表达式作为权值使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), EdgeWeight -> {a, b, c}]
Wolfram Language code: WeightedAdjacencyMatrix[%]//MatrixForm

GraphHighlight  (3)

突出显示顶点 1：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> Tiny, GraphHighlight -> {1}]

突出显示边 23：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> Tiny, GraphHighlight -> {23}]

突出显示顶点和边：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> Tiny, GraphHighlight -> {1, 2, 23}]

GraphHighlightStyle  (2)

获取 GraphHighlightStyle 的内置设置列表：

Wolfram Language code: ResourceData["GraphHighlightStyle"]

使用 GraphHighlightStyle 的内置设置：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), GraphHighlight -> {1, 23}, VertexSize -> Small, GraphHighlightStyle -> #, PlotLabel -> #]& /@ Select[ResourceData["GraphHighlightStyle"], # =!= Automatic&]

GraphLayout  (5)

默认情况下，自动选择布局：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), GraphLayout -> Automatic]

指定在特殊曲线上的布局：

Wolfram Language code: m = AdjacencyMatrix[GridGraph[{10, 10}]];
Wolfram Language code: Table[AdjacencyGraph[m, GraphLayout -> l, PlotLabel -> l], {l, {"CircularEmbedding", "SpiralEmbedding"}}]

指定满足最优化标准的布局：

Wolfram Language code: m = AdjacencyMatrix[GridGraph[{10, 10}]];
Wolfram Language code: Table[AdjacencyGraph[m, GraphLayout -> l, PlotLabel -> l], {l, {"SpringEmbedding", "SpringElectricalEmbedding", "HighDimensionalEmbedding"}}]

VertexCoordinates 重载 GraphLayout 坐标：

Wolfram Language code: {AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), GraphLayout -> "SpringElectricalEmbedding"], AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), GraphLayout -> "SpringElectricalEmbedding", VertexCoordinates -> Table[{i, i}, {i, 0, 2}]]}

通过一个布局算法，利用 AbsoluteOptions 提取计算所得的 VertexCoordinates：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |)]
Wolfram Language code: AbsoluteOptions[%, VertexCoordinates]

PlotTheme  (4)

Base Themes  (2)

使用公共基础主题：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), PlotTheme -> "Business"]

使用一个单色的主题：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), PlotTheme -> "Monochrome"]

Feature Themes  (2)

使用大型图主题：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), PlotTheme -> "LargeGraph"]

使用经典图表主题：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), PlotTheme -> "ClassicDiagram"]

VertexCoordinates  (3)

默认情况下，自动计算任意顶点坐标：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |)]

使用 AbsoluteOptions 提取所得的顶点坐标：

Wolfram Language code: AbsoluteOptions[%, VertexCoordinates]

指定沿着一个椭圆的布局函数：

Wolfram Language code: ellipseLayout[n_, {a_, b_}] := Table[{a Cos[2Pi / n u], b Sin[2Pi / n u]}, {u, 1, n}]
Wolfram Language code: Graphics[Point[ellipseLayout[20, {2, 1}]]]

使用它来生成顶点坐标：

Wolfram Language code: m = AdjacencyMatrix[PathGraph[Range[20]]];
Wolfram Language code: AdjacencyGraph[m, VertexCoordinates -> ellipseLayout[20, {2, 1}]]

VertexCoordinates 具有比 GraphLayout 更高的优先级：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexCoordinates -> Table[{i, i}, {i, 3}], GraphLayout -> "CircularEmbedding"]

VertexLabels  (13)

将顶点名称作为标签使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> "Name"]

对单个顶点添加标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> {1 -> "one"}]

对所有顶点添加标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> Table[i -> Subscript[v, i], {i, 3}]]

将任意表达式作为标签使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> {1 -> [image], 2 -> [image], 3 -> [image]}, ImagePadding -> 30]

使用具有符号位置信息的 Placed 来控制标签位置，包括内部位置：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.1, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed["■■■", p], {i, 3}], PlotLabel -> p, ImagePadding -> 20], {p, {Before, After, Below, Above}}]

拐角位置外的符号表示：

Wolfram Language code: pl = {{Before, Below}, {After, Below}, {Before, Above}, {After, Above}};
Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.1, VertexShapeFunction -> "Square", ImagePadding -> 20, VertexLabels -> Table[i -> Placed["■■■", p], {i, 3}], PlotLabel -> p], {p, pl}]

内部位置的符号表示：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.25, VertexLabels -> Table[i -> Placed["■■■", p], {i, 3}], VertexShapeFunction -> "Square", PlotLabel -> p], {p, {Left, Top, Right, Bottom}}]

内拐角位置的符号表示：

Wolfram Language code: pl = {{Left, Bottom}, {Right, Bottom}, {Left, Top}, {Right, Top}};
Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.25, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed["■■■", p], {i, 3}], PlotLabel -> p], {p, pl}]

使用显式坐标来放置标签中心：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.25, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed[[image], p], {i, 3}], PlotLabel -> p, BaselinePosition -> Bottom], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]

把所有标签放在顶点的右上角，并且在标签内改变坐标：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.35, VertexShapeFunction -> "Square", VertexLabels -> Table[i -> Placed[[image], {{1, 1}, p}], {i, 3}], PlotLabel -> p, BaselinePosition -> Bottom], {p, {{0, 0}, {1 / 2, 1 / 2}, {1, 1}}}]

放置多个标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> {3 -> Placed[{"lbl1", "lbl2"}, {Above, Below}]}]

可以使用任意数目的标签：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> {3 -> Placed[{"lbl1", "lbl2", "lbl3", "lbl4"}, {Above, After, Below, Before}]}]

使用参数 Placed 来控制格式，包括 Tooltip：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> Placed["Name", Tooltip]]

或者 StatusArea:

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> Placed["Name", StatusArea]]

使用更美观的格式函数：

Wolfram Language code: rotateLabel[lab_] := Rotate[lab, 45Degree]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> Table[i -> Placed["xxx", Below, rotateLabel], {i, 3}]]
Wolfram Language code: panelLabel[lab_] := Panel[lab, FrameMargins -> 0, Background -> Lighter[Blue, 0.7]]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> Table[i -> Placed["xxx", Center, panelLabel], {i, 3}]]
Wolfram Language code: hyperlinkLabel[lab_] := Hyperlink[lab, "http://www.wolfram.com"]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexLabels -> Table[i -> Placed["xxx", Center, hyperlinkLabel], {i, 3}]]

VertexShape  (5)

将任意 Graphics、Image 或者 Graphics3D 作为顶点形状使用：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShape -> s, VertexSize -> Medium], {s, {[image], [image], [image]}}]

对单个顶点，指定顶点形状：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShape -> {2 -> [image]}, VertexSize -> Small]

VertexShape 可以与 VertexSize 合起来使用：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> s, VertexShape -> [image], PlotLabel -> s], {s, {Small, Large}}]

VertexShape 不受 VertexStyle 影响：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexShape -> [image], VertexStyle -> Blue]

VertexShapeFunction 具有比 VertexShape 更高的优先级：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexShapeFunction -> "Square", VertexShape -> [image]]

VertexShapeFunction  (10)

获取 VertexShapeFunction 的内置设置列表：

Wolfram Language code: ResourceData["VertexShapeFunction"]

利用 VertexShapeFunction 在 "Basic" 集合中的内置设置：

Wolfram Language code: ResourceData["VertexShapeFunction", "Basic"]

简单基本形状：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, {"Triangle", "Square", "Rectangle", "Pentagon", "Hexagon", "Octagon"}}]

普通基本形状：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, {"DownTrapezoid", "UpTrapezoid", "Parallelogram", "FiveDown", "Circle", "Diamond", "Star", "Capsule"}}]

使用 VertexShapeFunction 在 "Rounded" 集合中的内置设置：

Wolfram Language code: ResourceData["VertexShapeFunction", "Rounded"]
Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, ResourceData["VertexShapeFunction", "Rounded"]}]

使用 VertexShapeFunction 在 "Concave" 集合中的内置设置：

Wolfram Language code: ResourceData["VertexShapeFunction", "Concave"]
Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> vf, VertexSize -> 0.2, PlotLabel -> vf], {vf, ResourceData["VertexShapeFunction", "Concave"]}]

绘制单个顶点：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> { 1 -> "Square"}, VertexSize -> 0.2]

与默认的顶点函数合起来使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> { 1 -> "Square", "Triangle"}, VertexSize -> 0.2]

使用预定义的图形绘制顶点：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> (Inset[[image], #]&)]

通过运行程序，绘制顶点：

Wolfram Language code: vf[{xc_, yc_}, name_, {w_, h_}] := Block[{xmin = xc - w, xmax = xc + w, ymin = yc - h, ymax = yc + h}, Polygon[{{xmin, ymin}, {xmax, ymax}, {xmin, ymax}, {xmax, ymin}}] ];
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> vf, VertexSize -> 0.2]

VertexShapeFunction 可以与 VertexStyle 合起来使用：

Wolfram Language code: vf1[{xc_, yc_}, name_, {w_, h_}] := Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf1]

VertexShapeFunction 具有比 VertexStyle 更高的优先级：

Wolfram Language code: vf2[{xc_, yc_}, name_, {w_, h_}] := {Red, Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]}
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf2]

VertexShapeFunction 可以与 VertexSize 合起来使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexShapeFunction -> "Star", VertexSize -> {1 -> Small, Medium}]

VertexShapeFunction 具有比 VertexShape 更高的优先级：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.3, VertexShapeFunction -> "Star", VertexShape -> [image]]

VertexSize  (8)

默认情况下，自动计算顶点大小：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> Automatic]

使用符号顶点尺寸，指定所有顶点的大小：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> s, PlotLabel -> s], {s, {Tiny, Small, Medium, Large}}]

使用顶点坐标之间的最小距离的百分比：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> s, PlotLabel -> s], {s, 0.1, 1, 0.3}]

对所有顶点坐标，使用整体对角线比率：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> {"Scaled", s}, PlotLabel -> {"Scaled", s}], {s, 0.1, 1, 0.3}]

指定在 和 方向上的尺寸：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> s, PlotLabel -> s], {s, {{0.1, 0.2}, {0.2, 0.1}}}]

对单个顶点，指定大小：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> {1 -> 0.2, 2 -> 0.3}]

VertexSize 可以与 VertexShapeFunction 合起来使用：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> s, VertexShapeFunction -> "Square", PlotLabel -> s], {s, {0.05, 0.1, 0.2}}]

VertexSize 可以与 VertexShape 合起来使用：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> s, VertexShape -> [image], PlotLabel -> s], {s, {0.1, 0.2, 0.4}}]

VertexStyle  (5)

对所有顶点进行样式化处理：

Wolfram Language code: Table[AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexStyle -> style, VertexSize -> 0.3, PlotLabel -> style], {style, {Yellow, EdgeForm[Dashed]}}]

对单个顶点进行样式化处理：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexStyle -> {1 -> Blue, 2 -> Red}, VertexSize -> 0.2]

VertexShapeFunction 可以与 VertexStyle 合起来使用：

Wolfram Language code: vf1[{xc_, yc_}, name_, {w_, h_}] := Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf1]

VertexShapeFunction 具有比 VertexStyle 更高的优先级：

Wolfram Language code: vf2[{xc_, yc_}, name_, {w_, h_}] := {Red, Rectangle[{xc - w, yc - h}, {xc + w, yc + h}]}
Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexStyle -> Blue, VertexShapeFunction -> vf2]

VertexStyle 可以与 BaseStyle 合起来使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexStyle -> LightBlue, BaseStyle -> EdgeForm[Dotted], VertexSize -> 0.2]

VertexStyle 具有比 BaseStyle 更高的优先级：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexStyle -> LightBlue, BaseStyle -> Gray, VertexSize -> 0.2]

VertexShape 不受 VertexStyle 影响：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexSize -> 0.2, VertexShape -> [image], VertexStyle -> Blue]

VertexWeight  (2)

设置所有顶点的权值：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexWeight -> {2, 3, 4}]
Wolfram Language code: AnnotationValue[{%, 1}, VertexWeight]

将任意数值表达式作为权值使用：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |), VertexWeight -> {a, b, c}]
Wolfram Language code: AnnotationValue[{%, 1}, VertexWeight]

应用  (2)

从集合列表 s 构建一个图，其中顶点 i 表示 s〚i〛 并且具有一条边 ij 如果 s〚i〛⊆s〚j〛:

Wolfram Language code: s = Subsets[{1, 2, 3}]
Wolfram Language code: AdjacencyGraph[s, Table[Boole@SubsetQ[s[[i]], s[[j]]], {i, Length[s]}, {j, Length[s]}], VertexLabels -> "Name"]

从整数列表 s 构建一个图，其中 ij 如果 s〚i〛 整除 s〚j〛 (s〚i〛∣s〚j〛):

Wolfram Language code: s = Divisors[24]
Wolfram Language code: AdjacencyGraph[s, Table[Boole@Divisible[s[[i]], s[[j]]], {i, Length[s]}, {j, Length[s]}], VertexLabels -> "Name"]

属性和关系  (6)

使用 VertexCount 和 EdgeCount 计算顶点数和边数：

Wolfram Language code: g = AdjacencyGraph[(| | | | | | | - | - | - | - | - | | 0 | 1 | 1 | 1 | 1 | | 1 | 0 | 1 | 1 | 1 | | 1 | 1 | 0 | 1 | 1 | | 1 | 1 | 1 | 0 | 1 | | 1 | 1 | 1 | 1 | 0 |)]
Wolfram Language code: {VertexCount[g], EdgeCount[g]}

利用 VertexList 和 EdgeList 以标准顺序列出顶点和边：

Wolfram Language code: g = AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |)]
Wolfram Language code: {VertexList[g], EdgeList[g]}

计算一个图的 AdjacencyMatrix：

Wolfram Language code: g = AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 0 | | 0 | 0 | 1 | | 1 | 0 | 0 |)];
Wolfram Language code: AdjacencyMatrix[g]//MatrixForm

一个图可以通过邻接矩阵重建：

Wolfram Language code: CompleteGraph[5]
Wolfram Language code: AdjacencyGraph [AdjacencyMatrix[%]]

对角线元素全是零的邻接矩阵生成的是一个没有自环的图：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 0 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 0 |)]
Wolfram Language code: LoopFreeGraphQ[%]

对角线上的每个1表示一个自环：

Wolfram Language code: AdjacencyGraph[(| | | | | - | - | - | | 1 | 1 | 1 | | 1 | 0 | 1 | | 1 | 1 | 1 |)]

如果对于一个邻接矩阵，所有对角线外的元素都是1的话，该邻接矩阵所对应的图是一个完全图：

Wolfram Language code: m = (| | | | | | | - | - | - | - | - | | 0 | 1 | 1 | 1 | 1 | | 1 | 0 | 1 | 1 | 1 | | 1 | 1 | 0 | 1 | 1 | | 1 | 1 | 1 | 0 | 1 | | 1 | 1 | 1 | 1 | 0 |);
Wolfram Language code: MatrixPlot[m]
Wolfram Language code: AdjacencyGraph[m]
Wolfram Language code: CompleteGraphQ[%]
Wolfram Research (2010)，AdjacencyGraph，Wolfram 语言函数，https://reference.wolfram.com/language/ref/AdjacencyGraph.html.

文本

Wolfram Research (2010)，AdjacencyGraph，Wolfram 语言函数，https://reference.wolfram.com/language/ref/AdjacencyGraph.html.

CMS

Wolfram 语言. 2010. "AdjacencyGraph." Wolfram 语言与系统参考资料中心. Wolfram Research. https://reference.wolfram.com/language/ref/AdjacencyGraph.html.

APA

Wolfram 语言. (2010). AdjacencyGraph. Wolfram 语言与系统参考资料中心. 追溯自 https://reference.wolfram.com/language/ref/AdjacencyGraph.html 年

BibTeX

@misc{reference.wolfram_2026_adjacencygraph, author="Wolfram Research", title="{AdjacencyGraph}", year="2010", howpublished="\url{https://reference.wolfram.com/language/ref/AdjacencyGraph.html}", note=[Accessed: 18-August-2026]}

BibLaTeX

@online{reference.wolfram_2026_adjacencygraph, organization={Wolfram Research}, title={AdjacencyGraph}, year={2010}, url={https://reference.wolfram.com/language/ref/AdjacencyGraph.html}, note=[Accessed: 18-August-2026]}
